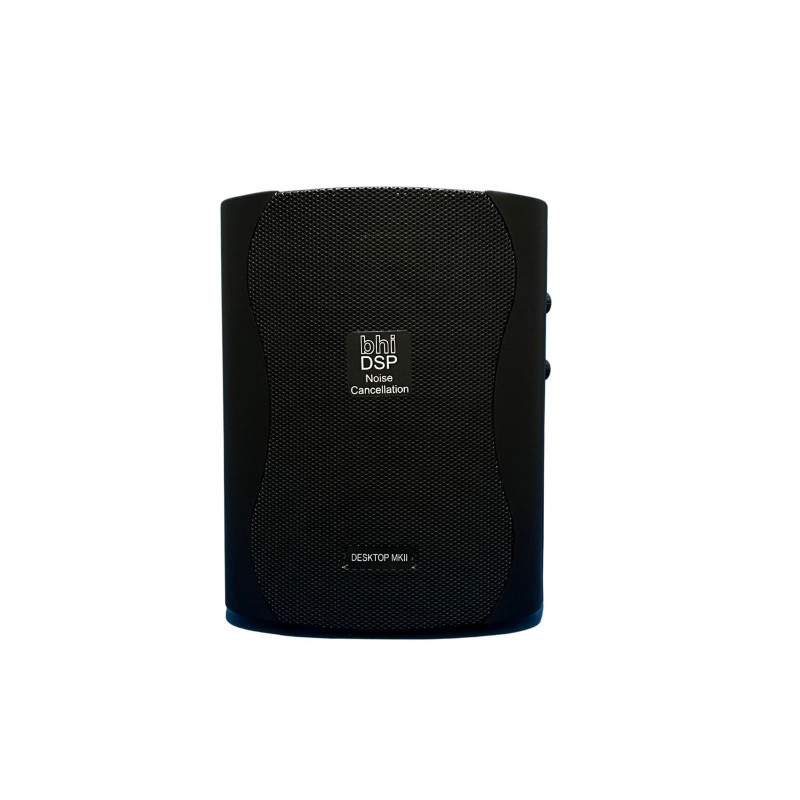

BHI DESKTOP MKII DSP - Noise Cancelling Base Station Speaker

Dramatically reduce noise and interference and hear more clearly!

The DESKTOP MKII speaker is the perfect solution for radio enthusiasts seeking crystal-clear audio in their base station. Its sophisticated DSP noise cancellation technology identifies the speech signals and allows you to remove the unwanted background noise and interference while preserving speech clarity, making it ideal for challenging listening environments. The easy-to-use controls allow real-time adjustment of both volume and filter levels to match your specific operating conditions.

Built for versatility, this speaker seamlessly integrates with virtually any radio setup through multiple connection options. The speaker-level inputs (4mm terminals) handle traditional 4 to 8 ohm radio outputs, while the 3.5mm line level input socket is perfect for modern SDR radios and low level audio signals. The convenient side-mounted headphone jack allows for private listening without sacrificing audio quality. With its robust construction and professional-grade components, the DESKTOP MKII delivers exceptional performance that can transform your radio listening experience from frustrating to enjoyable.

What’s in the box

The DESKTOP MKII speaker is supplied with a 2.1mm fused DC power lead with bare ends, a quality 2 metre audio cable with a moulded 3.5mm mono jack plug,  4mm banana plugs and a full user manual.  A 12V DC worldwide mains plug-in power supply  is available as an optional extra.

Using your DESKTOP MKII speaker

Simply connect the power lead and audio lead to your DESKTOP MKII speaker and radio, switch on the power supply and you are ready to go, adjusting the volume and filter level controls on the side of the speaker to suit your requirements.

Note: Elecraft K3 users: To connect to the K3 using the speaker lead supplied you need to either make up an audio lead with a 3.5mm stereo plug (tip only connected) to a 3.5mm mono socket, or purchase one of our ALD-009 leads, or alternatively use a 3.5mm stereo plug to plug lead and connect from your K3 to the line in socket on the DESKTOP MKII speaker (ALD-007).

Features

Quality 10 Watt amplified DSP noise cancelling base station speaker

Latest bhi DSP noise cancelling technology

4" bass driver and 1" tweeter for excellent audio

Works with most radios and receivers including SDR radios

Simple to operate with intuitive rotary encoder controls

Separate speaker level and line level audio inputs

Audio input level overload feature

Noise reduction 9 to 40 dB (8 levels)

3.5mm headphone socket (mono or stereo phones)

Shop bundled offers

DESKTOP MKII & International Power Supply Bundle

Specification

DC power

Connector type 2.1mm DC power jack (centre positive)

Input voltage 12 to 18 Volts DC

Input current 10mA standby

125mA active (no signal)

2.5A peak

Line level audio input

Connector type 3.5mm Mono or Stereo line level

Input voltage range 160mV to 1.6V pk-pk

Input impedance 10kΩ (±2kΩ) nominal

Speaker level audio input

Connector type 2 x 4mm banana socket/screw binding posts (mono)

Input voltage range 350mV to 3.5V pk-pk

Input impedance 8Ω (±2Ω) nominal

Input power rating 1.5W max

Audio output

Speaker output power 10W peak (supply voltage of 18V)

Bandwidth 50Hz to 4.3kHz

Volume levels 16 levels (3dB steps)

Headphone output 3.5mm mono or stereo (8 to 64 Ohms)

DSP noise cancellation

Filter levels 8 levels + off

Noise reduction 9dB to 40dB

Tone reduction 4dB to 65dB

Indications

Status LED Multicolour LED (red, amber, green)

Audio tones Power-up, power-down, DSP filter level, volume and memory store

Input overload indication.

Controls

Power/Volume Digital rotary encoder with push function

DSP level Digital rotary encoder with push function

Physical

Weight 1.90kg (shipping weight)

Dimensions 200(H) x 150(D) x 160(W)mm
