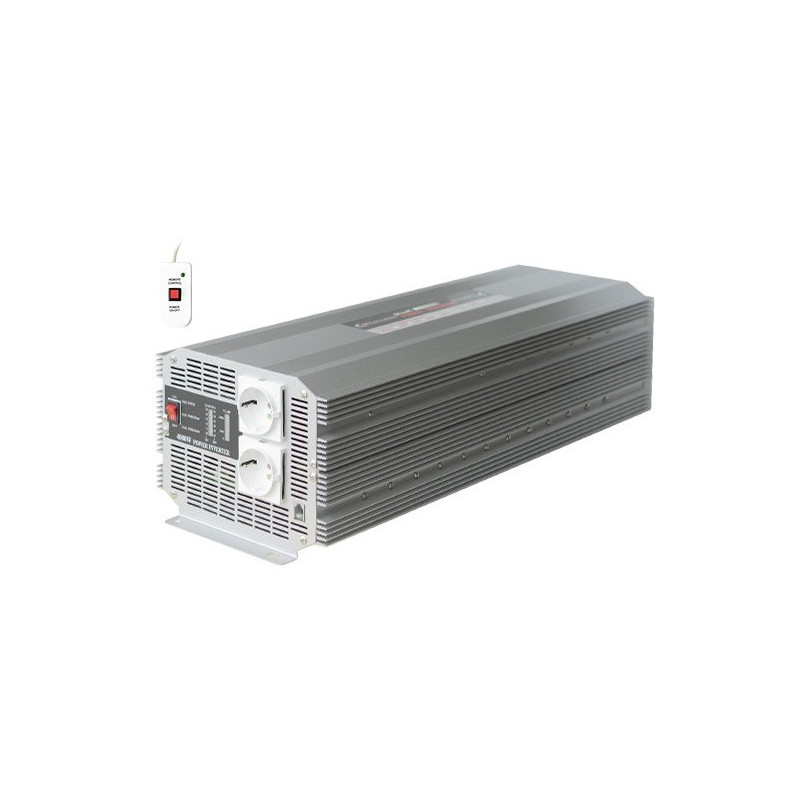

The Komunica A-301/4000-24-REMOT is a high-power inverter designed to convert power from a 24V DC battery or installation into 220V AC output, allowing compatible equipment to be powered where mains electricity is not directly available.

With listed continuous output power of 4000W and peak output power of 8000W, it is suitable for demanding applications where AC power is required from 24V batteries, provided the equipment consumption and electrical installation are correctly sized.

This model uses a modified sine wave output, also commonly described as rectified wave, and is intended for loads compatible with this type of inverter. For sensitive equipment, motors, devices with complex electronics, power-factor-corrected power supplies or medical equipment, compatibility should be confirmed before use.

The listed input range is 20 to 30V DC, with low battery alarm at 21.5V ±0.8V DC and low voltage shutdown at 20V ±0.8V DC, helping protect the battery from excessive discharge.

The inverter includes multiple protections, such as soft-start, low and high input voltage protection, overload protection, overtemperature protection, output short-circuit protection, fuse-based polarity protection and intelligent fan control.

The wireless remote control allows easier switching or control of the inverter, especially in installations where the unit is mounted in a less accessible place, such as vehicles, mobile installations, auxiliary power systems, workshops or backup power applications.

Main features

Modified sine wave DC/AC inverter
Brand: Komunica
Model / reference: A-301/4000-24-REMOT
EAN: 8435757700125
Nominal input: 24V DC
Input voltage range: 20 to 30V DC
Nominal output: 220V AC
AC output voltages listed in the specification: 100V, 110V, 120V, 220V, 230V and 240V
Output frequency: 50Hz or 60Hz
Output waveform: modified sine wave
Continuous output power: 4000W
Peak output power: 8000W
Efficiency: 85 to 90 percent
Full-load input current: 200A
Standby input current: below 0.85A
Low battery alarm: 21.5V ±0.8V DC
Low battery shutdown: 20V ±0.8V DC
High input voltage protection: 30V ±0.8V DC
Thermal protection: 60°C ±5°C
Intelligent fan control: automatic start at approx. 45°C
Battery polarity protection: yes, by fuse
Fuses: 15A x 18
Number of AC outlets: 2
Soft-start: yes
Output short-circuit protection: yes, shutdown
Low input voltage protection: yes, shutdown
High input voltage protection: yes, shutdown
Overload protection: yes, shutdown
Overtemperature protection: yes, shutdown
Trouble display: yes, LED
Voltage / amps display: yes
Remote control: yes, wireless
Approval: ECE R10
Dimensions: 550 x 210 x 159mm
Weight: 11.2kg
Main application: converting 24V DC power to 220V AC for compatible equipment

Recommended applications

Vehicles and work vehicles with 24V systems
Trucks, motorhomes and 24V mobile installations
Auxiliary systems with 24V batteries
Workshops and mobile technical service
Equipment compatible with modified sine wave
Compatible tools and resistive loads
Auxiliary power where no mains socket is available
Temporary installations with correctly sized battery bank
Applications where remote inverter control is useful

Important note

Before installation, always confirm the real power consumption of the equipment, load type, modified sine wave compatibility, battery capacity, cable cross-section, protective fuses, ventilation, polarity, distance between battery and inverter and electrical safety of the installation.

A 4000W inverter on 24V can require very high current. The specification lists 200A full-load input current, so installation must use suitable cables, firm connections, correct protection and a compatible battery or battery bank.

As this is a modified sine wave inverter, compatibility with all appliances should not be assumed. Sensitive equipment, motors, refrigerators, pumps, specific chargers, UPS systems, medical equipment or devices with complex electronics should be tested or confirmed beforehand.

This item corresponds to the Komunica A-301/4000-24-REMOT 4000W 24V/220V inverter with remote control. Battery cables, terminals, external fuses, batteries, chargers, solar panels and other accessories are not included unless expressly stated otherwise.
