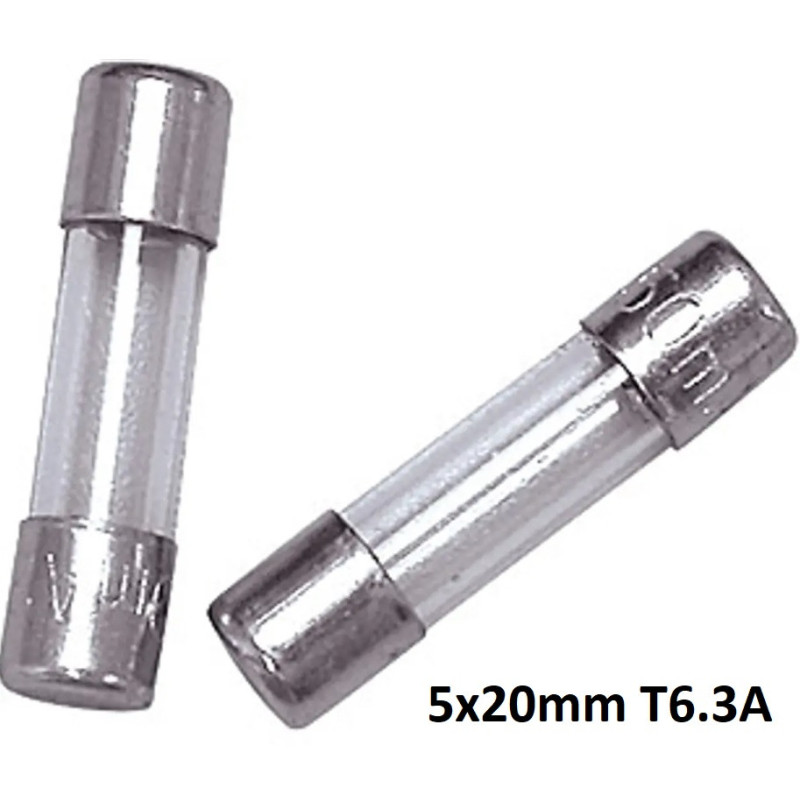

The ESKA 5x20mm T6.3A 250VAC Slow Blow Glass Fuse is a miniature low-voltage fuse designed to protect electrical and electronic circuits against overloads.

As a slow blow / time-delay fuse, it is suitable for circuits where brief current peaks may occur during start-up, such as power supplies, transformers, chargers, electronic equipment, audio devices, radio communication equipment and other electrical devices.

The cylindrical glass body allows quick visual inspection of the fuse condition. The brass contacts with nickel-plated finish help provide good electrical conductivity and corrosion resistance.

Main features

• Cylindrical glass fuse
• Type: slow blow / time-delay
• Dimensions: 5x20mm
• Rated current: 6.3A
• Marking: T6.3A
• Rated voltage: 250V AC
• Breaking capacity: 63A
• Breaking characteristic: 10In max. 300ms
• Maximum voltage drop: 100mV
• Fuse type: low voltage
• Miniature fuse
• Contact material: brass
• Contact finish: nickel-plated
• Brand: ESKA

Recommended applications

• Power supplies
• Chargers
• Electronic equipment
• Audio equipment
• Radio communication equipment
• Transformers
• Electronic boards
• Equipment repair and maintenance
• Circuits with start-up current peaks
• Fuse holders compatible with 5x20mm format

Important note

Before replacing a fuse, always check the original fuse rating: current, voltage, size and operating characteristic. This model is slow blow / time-delay and should not be replaced with a fast-acting fuse unless technically confirmed.
