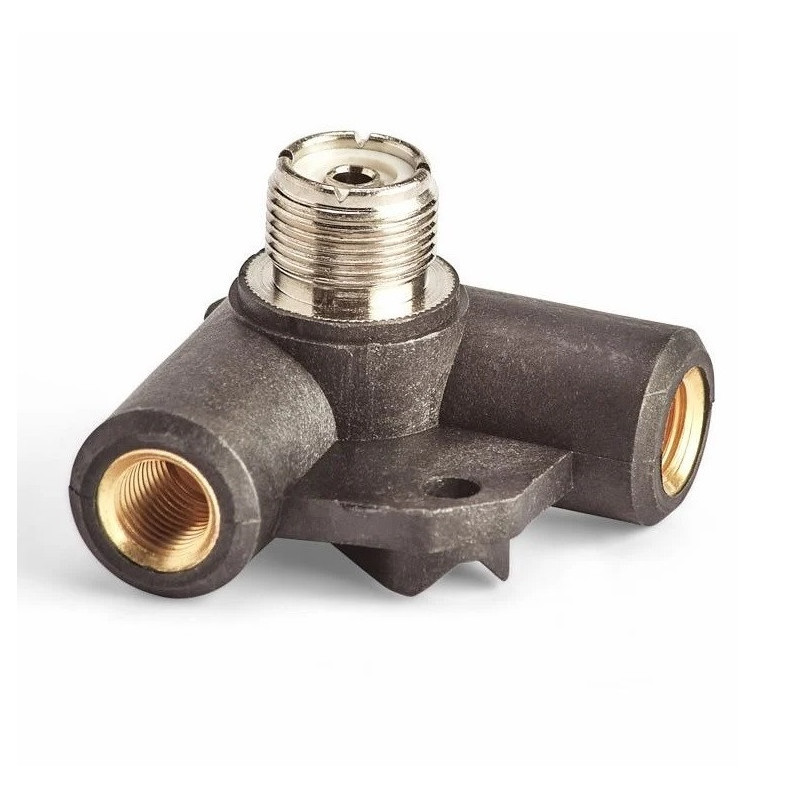

Moonraker DPC-38V Dipole Centre for 3/8 HF Mobile Whips

The Moonraker DPC-38V is a V-shaped dipole centre, designed to use two monoband HF mobile whips with 3/8-24 thread, creating a compact and practical dipole antenna.

This accessory allows two mobile whip antennas to be mounted, one on each side, forming a single-band mini dipole. The V or inverted V configuration can be especially useful for portable, temporary, field or space-limited installations where a conventional wire dipole cannot easily be installed.

The centre uses an SO-239 coaxial socket, allowing direct connection of coaxial cable with a PL-259 plug. The listed maximum power is 500W, making it suitable for several HF amateur radio applications, provided that the mobile whips used are also compatible with the required power, band and operating conditions.

Thanks to its simple, robust and lightweight design, the DPC-38V is a practical solution for quickly building a compact HF antenna using monoband mobile whips. It is suitable for portable operation, field use, antenna experiments, temporary stations and small fixed installations.

For best performance, the mobile whips must be correctly adjusted, SWR must be checked and the mechanical installation must be secure. The final operating frequency depends on the antennas fitted and their adjustment.

Main features

Dipole centre for mobile whips
Manufacturer / brand: Moonraker
Model: DPC-38V
Reference: DPC38V
EAN: 5060080573875
Accessory type: dipole centre / centre mount
Configuration: V / inverted V
Compatibility: two monoband HF mobile whips
Antenna thread: 3/8-24
Number of antenna connections: 2
Coaxial connection: SO-239 female
Compatible coaxial plug: PL-259
Listed maximum power: 500W
Approximate weight: 55g
Main application: mini dipole using mobile whips
Use: fixed, portable or temporary
Suitable for HF amateur radio
Mobile whips not included
Coaxial cable not included
Requires antenna adjustment and SWR check

Recommended applications

HF mini dipoles with mobile whips
Portable amateur radio operation
Temporary field installations
Fixed stations with limited space
HF antenna experiments
POTA, SOTA, field and portable activities
Use with 3/8 monoband mobile whips
V or inverted V installation
Simple systems for specific HF bands
Propagation testing and portable DX contacts

Important note

Before use, always confirm the mobile whip compatibility, 3/8-24 thread, allowed power, required band, mechanical mounting, coaxial connection and SWR adjustment.

The Moonraker DPC-38V is only the dipole centre. Mobile whips, coaxial cable, mast, mounting support and adapters are not included unless expressly stated otherwise.

The operating frequency and final performance depend on the mobile whips fitted, length adjustment, mounting height, surrounding environment, cable losses and propagation conditions. Always use an SWR meter or antenna analyser before transmitting to protect the radio equipment.
