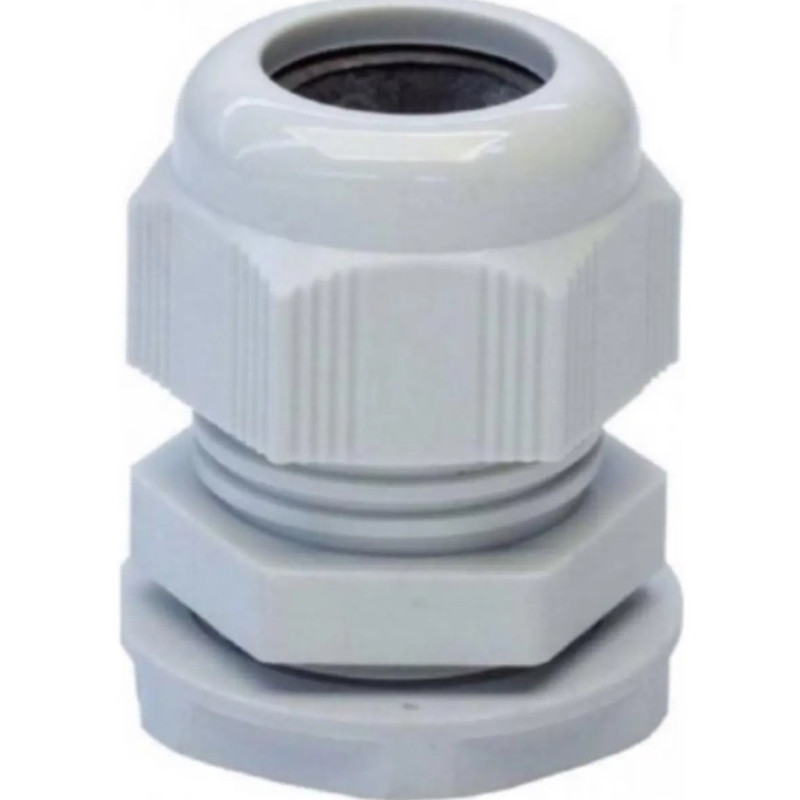

The PG9 Grey IP68 Cable Gland is designed for cable entry, fixing and protection in electrical boxes, control panels, electronic equipment, technical enclosures and installations where a secure and organised cable entry is required.

This cable gland is suitable for cables with an outside diameter between 4.5 mm and 8 mm, providing firm cable retention and helping protect against dust, moisture and water ingress. The IP68 rating makes it suitable for applications requiring a high level of sealing, while the IK08 rating adds mechanical resistance to the assembly.

The EPDM seal helps ensure effective sealing around the cable, improving durability and protection. The grey RAL 7035 body and nuts provide a discreet and professional finish for electrical and technical installations.

A locknut is included, making installation easier in compatible boxes, enclosures or panels.

Main features

• Cable gland for cable entry and protection
• Thread: PG9
• Colour: grey RAL 7035
• Suitable cable outside diameter: Ø4.5 to 8 mm
• Protection rating: IP68
• Mechanical impact resistance: IK08
• EPDM seal
• UV resistant
• Operating temperature range: -40°C to 100°C
• Applicable standard: EN 62444
• Grey technical material body and nuts
• Locknut included
• Suitable for electrical boxes, panels and enclosures
• Product reference: AL 05BU09-CZ

Indicated dimensions

• Minimum cable diameter: 4.5 mm
• Maximum cable diameter: 8 mm
• Dimension A: 9 mm
• Dimension B: 15.2 mm
• Dimension P1: 19 mm
• Dimension P2: 22 mm

Recommended applications

• Electrical boxes
• Control panels
• Technical enclosures
• Electronic equipment
• Cable entry through panels
• Automation installations
• Telecommunications
• Radio communication installations
• Electronics and maintenance projects
• Cable protection and organisation

Installation note

Before installation, check that the PG9 thread and cable diameter are compatible with the application. To maintain IP68 protection, the cable gland must be correctly tightened and installed on a suitable surface, using cable within the specified diameter range.
