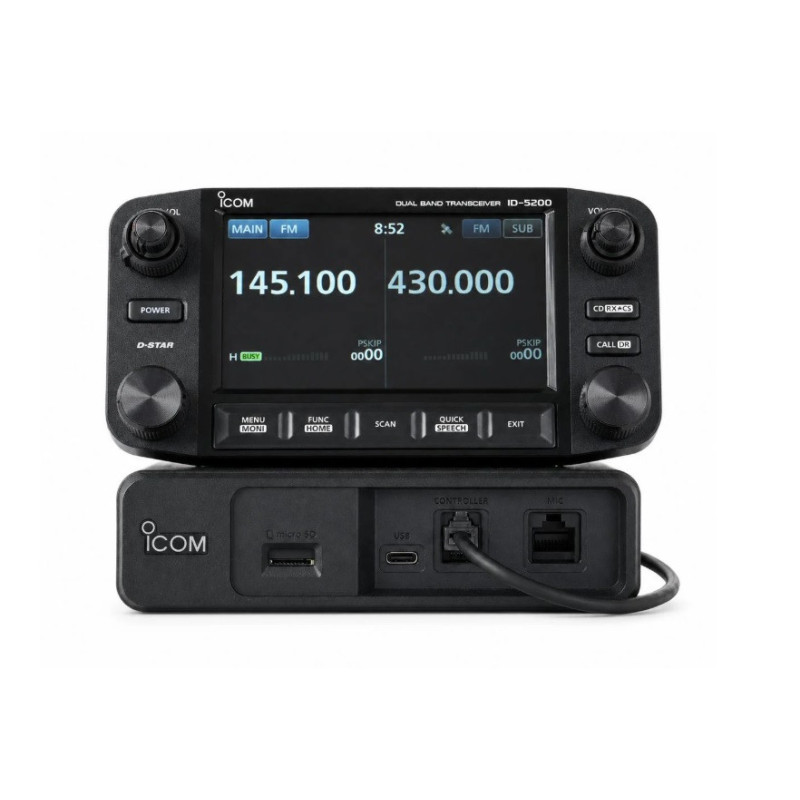

The Icom ID-5200E is a dual-band VHF/UHF digital mobile transceiver designed for amateur radio operators looking for a modern, intuitive radio for both analogue and digital operation.

This European version transmits on 144–146MHz and 430–440MHz, with selectable output power of 50W, 15W or 5W at 13.8V DC. It supports FM, FM-N and D-STAR DV, making it suitable for compatible analogue repeaters, D-STAR digital repeaters and direct contacts.

The large 4.3-inch colour touchscreen provides quick access to key functions and improves visibility during mobile or fixed-station operation. The waterfall and band scope functions help display signal activity and band conditions at a glance.

The ID-5200E supports true simultaneous dual reception, including FM/FM, FM/DV and DV/DV, allowing two signals to be monitored at the same time. It also supports V/V, U/U and V/U dual receive combinations, including airband reception within the listed RX coverage.

Enhanced D-STAR functions include Terminal Mode, Access Point Mode, DV repeater monitoring and image transmission/reception. Built-in Wi-Fi, with access point capability, makes Terminal and Access Point operation easier through an Internet connection. APRS support is listed by Icom as planned via a future firmware update.

The radio also includes Bluetooth, GNSS receiver, USB-C port, microSD card slot, controller connector, microphone connector, DATA jack, antenna connector and external speaker outputs.

It is suitable for vehicle installation, shack use, fixed amateur radio operation or advanced mobile operation, especially for users looking for a modern successor to the ID-5100E.

Main features

Digital VHF/UHF mobile transceiver
Brand: Icom
Model: ID-5200E
Version: European
Equipment type: amateur radio mobile transceiver
Main bands: 2m and 70cm
Transmit: 144–146MHz and 430–440MHz
FM/FM-N/DV receive: 137–174MHz and 225–550MHz
AM/AM-N receive: 118–143.995MHz and 225–399.995MHz
Guaranteed TX/RX range: 144–146MHz and 430–440MHz
Modes: DV, FM, FM-N, AM receive only and AM-N receive only
Emission types: F1D, F2D, F3E and F7W
Output power: 50W / 15W / 5W
Power supply: 13.8V DC
Maximum TX current drain: 13A
RX standby current drain: 1.2A
Maximum audio current drain: 1.8A
Antenna impedance: 50 ohm
Microphone impedance: 600 ohm
Display: 4.3" colour touchscreen
Waterfall display: yes
Band scope: yes
Memory Scope: yes
Dualwatch: yes, including DV/DV
Simultaneous reception: FM/FM, FM/DV and DV/DV
Dual receive: V/V, U/U and V/U
D-STAR: yes
Terminal Mode: yes
Access Point Mode: yes
DV Repeater Monitor: yes
Image transmission and reception: yes
APRS: planned via future firmware update
Wi-Fi: yes, built in
Bluetooth: yes
GNSS / GPS: yes
DPRS: yes
USB port: USB-C
microSD card slot: yes
Memory channels: 1054 channels
Repeater list: 2500 channels
Callsign list: 300 channels
GPS memory: 300 channels
Program scan edge: 50 sets
DV sensitivity: 0.18µV, guaranteed range
FM/FM-N sensitivity: 0.18µV, guaranteed range
Audio output power: 2.5W typical into 8 ohm load
Receiver system: double conversion superheterodyne
Main unit dimensions: 150 x 40 x 171.5mm
Controller dimensions: 163 x 83.5 x 24.1mm
Main unit weight: 1.28kg
Controller weight: 260g
Operating temperature: -10°C to +60°C
Frequency stability: ±2.5ppm
Main application: VHF/UHF mobile and fixed amateur radio communication in FM and D-STAR

Listed connections and functions

USB-C port for compatible PC or smartphone connection
microSD card slot
Controller connector
Microphone connector
Antenna connector
DATA jack
SP1 external speaker jack
SP2 external speaker jack
Speech function for frequency, receive mode and callsigns
Direct CSV data import for memory management
microSD logging and voice recording
Alarm function for incoming calls to your own station

Listed contents

1 Icom ID-5200E transceiver with control unit
1 DC power cable with fuses
1 microphone
1 microphone holder
Spare fuses
Small mounting parts
Basic manual, depending on distributor package

Recommended applications

VHF/UHF mobile operation in vehicles
Fixed amateur radio station use
FM repeater communication
D-STAR digital communication
Monitoring two signals simultaneously
D-STAR repeater operation
Terminal Mode and Access Point Mode
Airband reception within listed RX coverage
Use with Wi-Fi, Bluetooth and compatible applications
Installations where a separate controller is useful

Important note

Before purchase and installation, always confirm the radio version, authorised bands in the country of use, amateur radio licence, suitable antenna, coaxial cable, 13.8V DC power supply, available current, mounting bracket, ventilation and compatibility with Icom accessories.

This article refers specifically to the Icom ID-5200E European version, with transmit coverage on 144–146MHz and 430–440MHz. Do not confuse it with the ID-5200A version.

APRS support is listed as planned through a future firmware update. Final availability may depend on firmware version and updates released by Icom.

Transmission use requires an amateur radio licence and must comply with the applicable national regulations.

This item corresponds to the Icom ID-5200E. Antenna, coaxial cable, power supply, microSD card, external speakers, optional brackets, optional software and other accessories are not included unless expressly stated otherwise.
