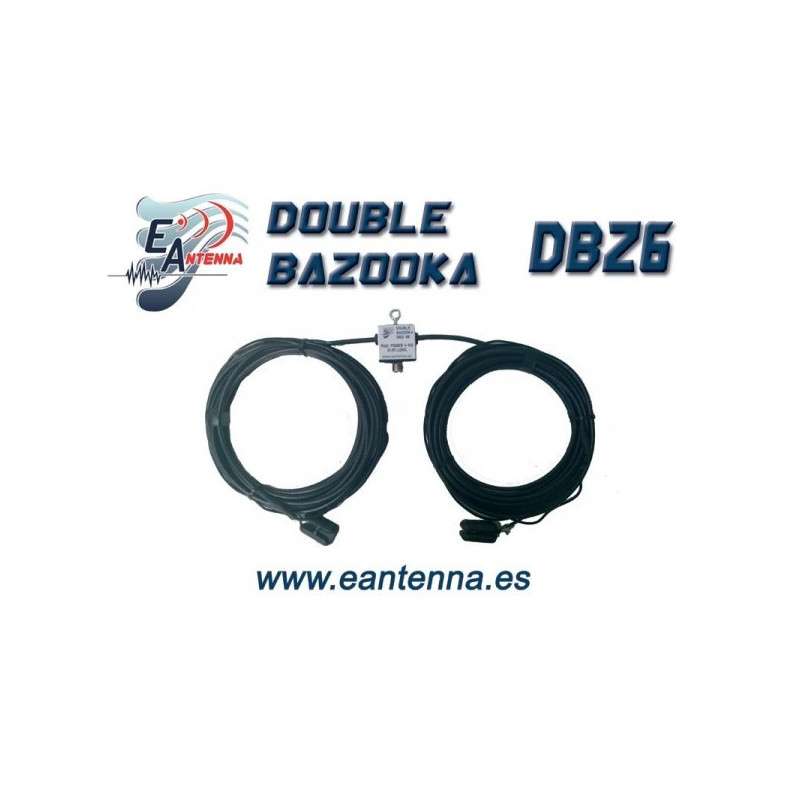

The EAntenna DBZ6 Double Bazooka, is a single-band dipole antenna designed specifically for amateur-radio communication on the 6-metre band, around 50 MHz.

Unlike a conventional wire dipole, the Double Bazooka uses a central section of coaxial cable as part of the radiating element and impedance-transforming section. This construction helps compensate for changes in reactance across the band, producing a flatter SWR curve and greater bandwidth than a conventional dipole.

The radiating element provides DC continuity to ground, helping reduce static build-up and, in certain installations, providing a lower received-noise level.

Measuring approximately 3 metres in length, the antenna can be installed horizontally or in an inverted-V configuration. Its centre enclosure is fitted with an SO-239 connector for direct connection to a 50 Ω coaxial feed line fitted with a PL-259 plug. No external balun is required.

Main features

• Brand: EAntenna
• Model: DBZ6
• Type: wire dipole
• Design: Double Bazooka
• Band: 6 metres
• Operating frequency: 50 MHz amateur-radio band
• Operation: single band
• Total length: approximately 3.0 m
• Nominal impedance: 50 Ω
• Connector: SO-239
• Maximum power currently specified: 4000 W
• Balun: not required
• Feed point: centre-fed
• Installation: horizontal or inverted V
• Approximate weight: 0.3 kg
• Construction: robust and suitable for outdoor use
• Feed line: 50 Ω coaxial cable, not included

Recommended applications

• 6-metre-band communications
• SSB, CW, FM and digital modes
• Local and long-distance communication on 50 MHz
• Sporadic propagation openings on the 6-metre band
• Fixed amateur-radio stations
• Contest operation
• Horizontal installation between two supports
• Inverted-V installations
• Stations requiring greater bandwidth than a conventional dipole

Package contents

• EAntenna DBZ6 Double Bazooka antenna
• Insulators

Important note

This antenna is designed exclusively for the 6-metre band and is not a multiband antenna.

The resonant frequency and SWR may vary depending on installation height, inverted-V angle, proximity to the ground, buildings, trees and metal structures. After installation, check the antenna with an SWR meter or antenna analyser.

A lower power level should be used for digital modes or continuous-carrier operation. The coaxial feed line, PL-259 connector, mast, support ropes and other installation accessories are not included.
