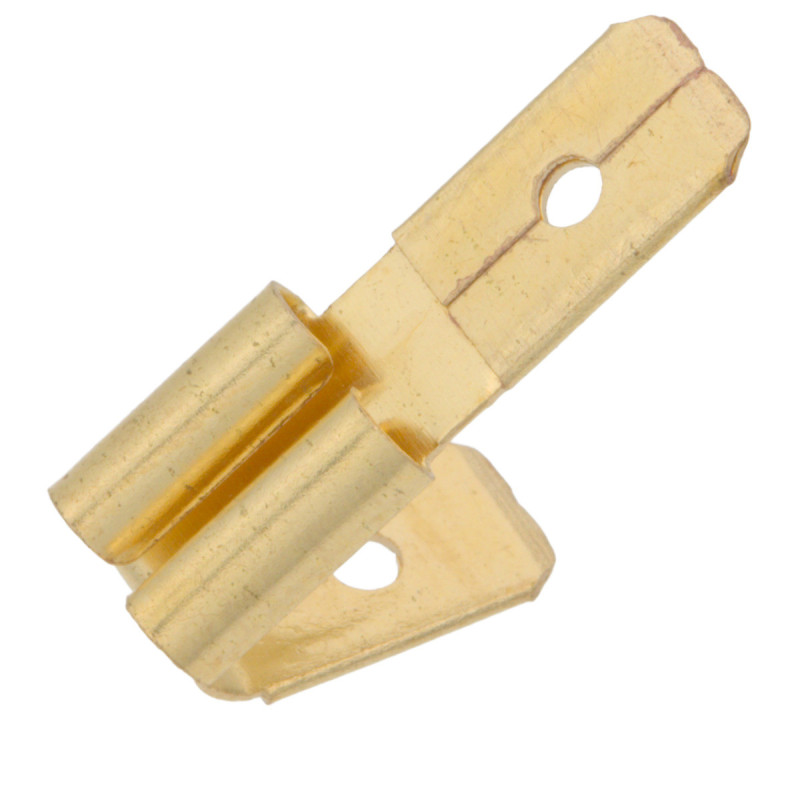

Faston Female to 2 Male Adapter 6.3 mm
€0.20
Faston adapter with 1 female terminal to 2 male terminals, suitable for electrical connections with 6.3 mm contact width and 0.8 mm thickness. Made of brass, with 9.5 mm contact length, 21.35 mm total length, and 10 A maximum current.
Security policy
Delivery policy
The 6.3 mm Faston female to 2 male adapter is an electrical branching terminal designed to split one Faston female connection into two male outputs, keeping a simple and practical format for compatible electrical assemblies. It is a useful solution where one connection needs to be distributed from a single contact point.
This model uses contacts with 6.3 mm width and 0.8 mm thickness, and it is made of brass. The contact length is 9.5 mm and the overall length of the adapter is 21.35 mm, which are important dimensions for checking compatibility with the intended installation or equipment.
Features:
- Faston adapter
- Configuration: 1 female to 2 male
- Contact width: 6.3 mm
- Thickness: 0.8 mm
- Contact length: 9.5 mm
- Total length: 21.35 mm
- Maximum current: 10 A
- Terminal material: brass
