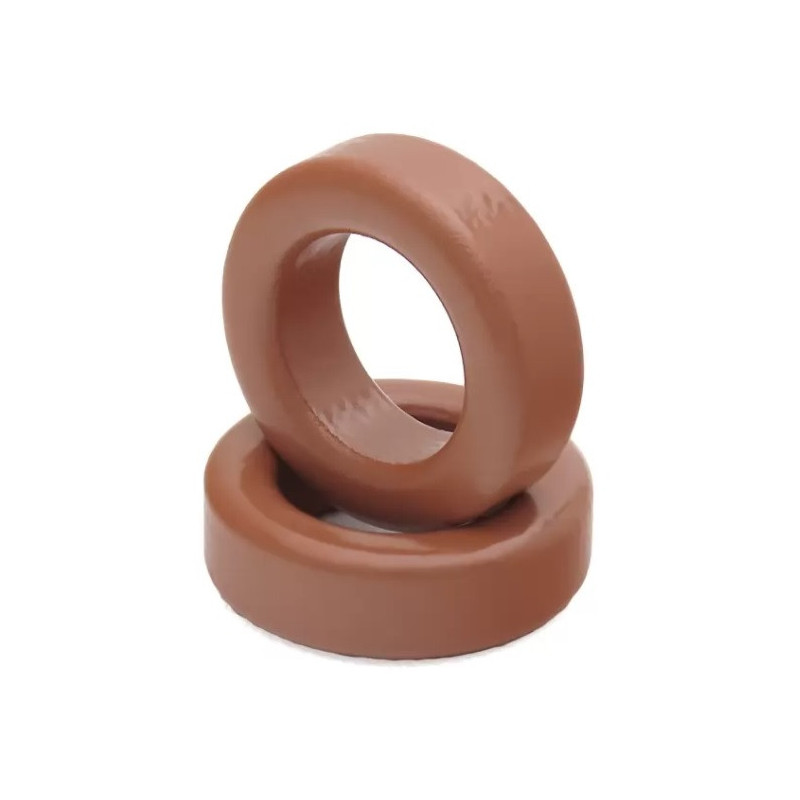

T37-0 Non-Magnetic Toroidal Core
€0.40
T37-0 toroidal core made of non-magnetic, non-conductive phenolic material, suitable for air-wound coils, RF applications, and high-frequency electronic projects. It operates in the 50 to 350 MHz range and measures 9.53 mm outer diameter, 5.21 mm inner diameter, and 3.25 mm height
Security policy
Delivery policy
The T37-0 is a small toroidal core made from non-magnetic phenolic Mix 0 material. This material is designed to provide a stable mechanical form for winding air coils, while also being suitable for RF projects and other high-frequency electronic applications.
This model has an initial permeability µi of 1, an A<sub>L</sub> value of 5 µH at 100 turns, and a stated operating range of 50 to 350 MHz. The core measures 9.53 mm outer diameter, 5.21 mm inner diameter, and 3.25 mm height, with an approximate weight of 1 g.
Mix 0 material stands out for being non-magnetic, non-conductive, and offering excellent temperature stability as well as high Q at very high frequencies. It is also useful for moderate broadband transformers from 600 to 1000 MHz.
Features:
- Model: T37-0
- Material: Mix 0
- Non-magnetic, non-conductive phenolic material
- Color: tan
- Frequency range: 50 - 350 MHz
- Initial permeability: µi 1
- A<sub>L</sub> 100 turns: 5 µH
- Outer diameter: 9.53 mm
- Inner diameter: 5.21 mm
- Height: 3.25 mm
- Approximate weight: 1.00 g
- Suitable for air coils and RF applications
- Suitable for high-frequency projects
000370
Data sheet
- Local do artigo na loja
- M003
Specific References
- MPN
- T37-0
