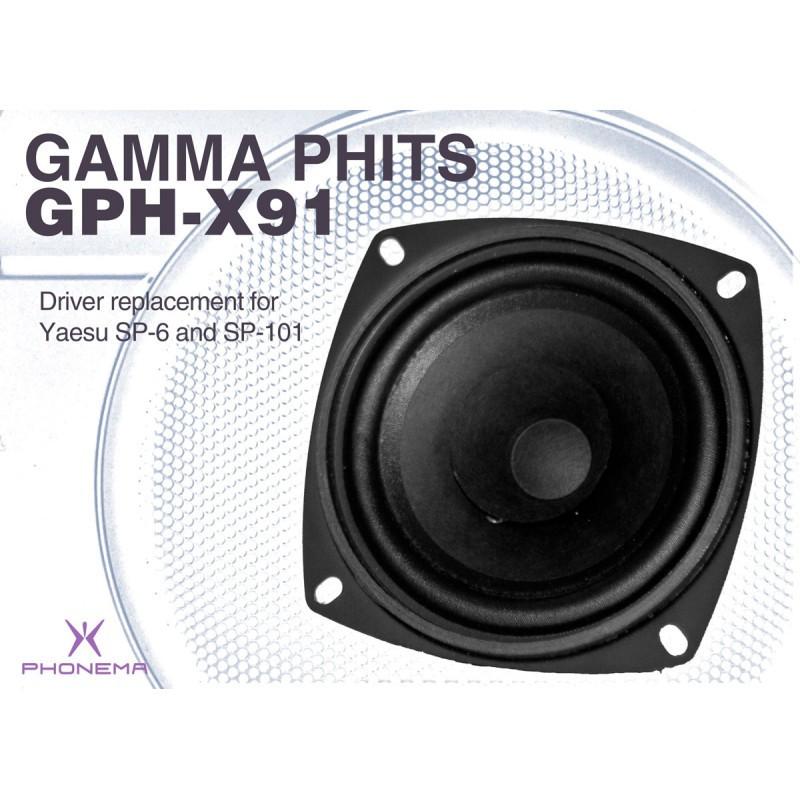

PHONEMA GAMMA GPH-X91 - Yaesu SP-101 and SP-6

for Yaesu SP-101 and SP-6

Specifications

•Power:.........................................30W

•Impedance:..................................8 Ohms

•Frequency Response:.................80­20.000 Hz

•Sensitivity:...................................86 dB

•Weight:........................................380 g. / 0,83 lb.

Assembly

•Carefully remove the front panel of the speaker by disconnecting all terminal block.

•Remove the driver by removing the four screws.

•Replace GPH­X91 in the original orientation, making sure that it fits snugly on the rubber and interleaving the nylon spacers.

•Cut off the positive terminal to replace it with the supplied terminal. Make sure it is securely crimped.

•Completely reassemble the loudspeaker
