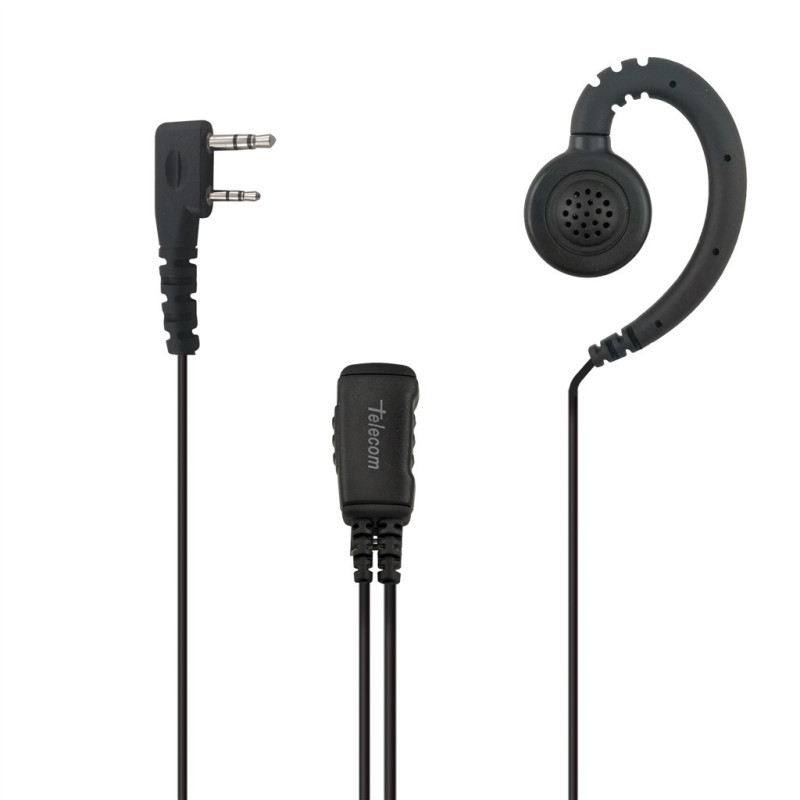

The Telecom MAU-CR-K-P is an earpiece microphone designed for discreet and comfortable communications with handheld radios using a two-pin Kenwood K1 connection.

Its ergonomic C-shaped earpiece rests over the ear without entering the ear canal. This design provides improved comfort during extended use while allowing the operator to maintain greater awareness of surrounding sounds.

The microphone is incorporated into a lapel-mounted module featuring a PTT — Push To Talk button and clothing clip. The handheld radio can remain attached to a belt or stored in a pocket while the transmit button is positioned within easy reach.

The cable features a woven fibre-fabric covering for increased resistance and durability. This construction helps avoid the deterioration commonly experienced by conventional rubber-covered cables after prolonged use.

Its K1 connection uses parallel 3.5 mm and 2.5 mm plugs, a format widely used by Kenwood and compatible handheld radios.

Main features

• Brand: Telecom
• Model: MAU-CR-K-P
• Product type: earpiece microphone with PTT
• Earpiece: C-shaped ear hook
• Position: rests over the ear
• PTT: integrated into the lapel module
• Attachment: clothing clip
• Cable: woven fibre-fabric covering
• Connector: two-pin Kenwood K1
• Plugs: 3.5 mm jack + 2.5 mm jack
• Colour: black

Microphone specifications

• Type: electret condenser
• Sensitivity: −58 dB
• Output impedance: 2 kΩ

Earpiece specifications

• Driver diameter: 15 mm
• Output level: 92 dB
• Rated input power: 0.1 W
• Maximum input power: 0.2 W
• Impedance: 32 Ω

Compatibility

Compatible with radios using the two-pin Kenwood K1 connection, including selected models from:

• Kenwood
• Team
• HYT
• Wouxun
• Dynascan
• Baofeng
• Kombix
• Selected Alan, Midland, Intek and Handytron radios

Kenwood series

• TK: various TK-200, TK-300, TK-2000 and TK-3000 series radios
• TH: TH-D7, TH-F6, TH-F7, TH-G71, TH-K2, TH-K4 and additional models
• NX: NX-240 and NX-340
• UBZ: UBZ-LJ8

Team

• TeCom X5
• TeCom Z5
• TeCom SL
• TeCom XP
• TeCom IP
• TeCom DB-H
• TeCom FM
• TeCom Pro
• TeCom F6

HYT

• TC-265
• TC-268 and TC-268S
• TC-270 and TC-278
• TC-365 and TC-366
• TC-368 and TC-368S
• TC-370
• TC-380 and TC-380M

Recommended applications

• Amateur radio
• Security and surveillance
• Event organisation
• Hospitality and catering
• Warehousing and logistics
• Retail teams
• Sports activities
• Exhibitions and trade fairs
• Professional handheld-radio operation
• Hands-free communications

Important note

Before ordering, confirm that the radio uses the two-pin Kenwood K1 connector. Compatibility with a particular brand does not mean that every radio from that manufacturer uses the same connection.

The earpiece rests over the ear and does not enter the ear canal. It is not certified hearing protection and does not protect the wearer against high noise levels.
