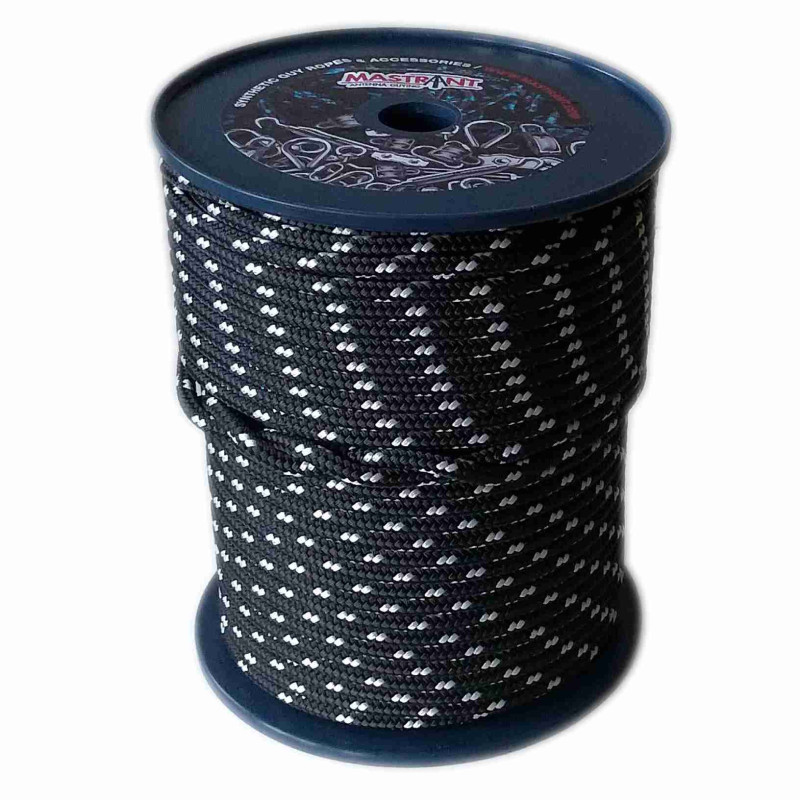

The Mastrant-Q 6mm MQ06100 is a technical guy rope designed for applications requiring a strong, durable, lightweight and non-conductive solution.

Suitable for guying masts, antennas, light towers and amateur radio structures, the Mastrant-Q range is optimised to offer an excellent performance-to-price ratio while maintaining good mechanical strength, low elongation and reliable outdoor behaviour.

With 6mm nominal diameter, approximately 6.1mm real diameter, 730kg breaking strength, 220kg recommended working load and 3.2% elongation, this rope is suitable for installations where mast or antenna movement needs to be controlled without using metal guy wires.

Its braided construction with twisted cores, using a polyester and polypropylene core and polyester outer cover, provides good resistance to UV radiation, humidity, abrasion and wear. As a non-conductive rope, it does not directly affect antenna electrical behaviour in the way metal guy wires can.

This item corresponds to code MQ06100, supplied as a 100 metre roll, ideal for permanent installations, medium-size masts, light towers or systems requiring a strong and reliable guy rope.

Main features

Technical guy rope
Manufacturer / brand: Mastrant
Model / series: Mastrant-Q
Code: MQ06100
Supplied length: 100 metres
Supply format: 100m roll
Nominal diameter: 6mm
Approximate actual diameter: 6.1mm
Equivalent diameter: 1/4"
Breaking strength: 730kg
Recommended working load: 220kg
Elongation: 3.2%
Linear weight: 28.5g/m
Approximate roll weight: 3100g
Approximate package dimensions: 170 x 170 x 200mm
Construction: braided rope with twisted cores
Core: polyester and polypropylene, parallel-arranged twisted cores
Outer cover: polyester
Colour: black with grey dots
UV resistance: high
Humidity resistance: high
Abrasion resistance: high
Durability: high
Electrical behaviour: non-conductive
Main application: guying masts, antennas and outdoor structures
Suitable for outdoor installations, amateur radio and antenna systems

Recommended applications

Antenna mast guying
Amateur radio installations
Vertical antennas
Telescopic masts
Fixed masts and light towers
Temporary or permanent antenna systems
Outdoor installations exposed to UV, wind and humidity
Replacement of metal guy wires in compatible applications
Projects requiring non-conductive rope
Amateur radio base stations
Field operation, portable, POTA and SOTA activities
Antenna and mast system maintenance

Important note

Before use, always confirm the real installation load, mast height, number of guying points, applied tension, wind exposure, fixing method, knots, accessories used and environmental conditions.

The recommended working load must be respected and a suitable safety margin should always be maintained. The final strength of the system depends not only on the rope, but also on knots, terminals, tensioners, anchors, guying angles and installation quality.

Avoid sharp edges, continuous rubbing against abrasive surfaces and contact with heat sources. For outdoor installations, periodic inspection of the rope, fixing points and guying accessories is recommended.

This item corresponds to 1 roll of 100 metres of Mastrant-Q 6mm MQ06100 rope. Masts, tensioners, insulators, anchors and other accessories are not included unless expressly stated otherwise.
