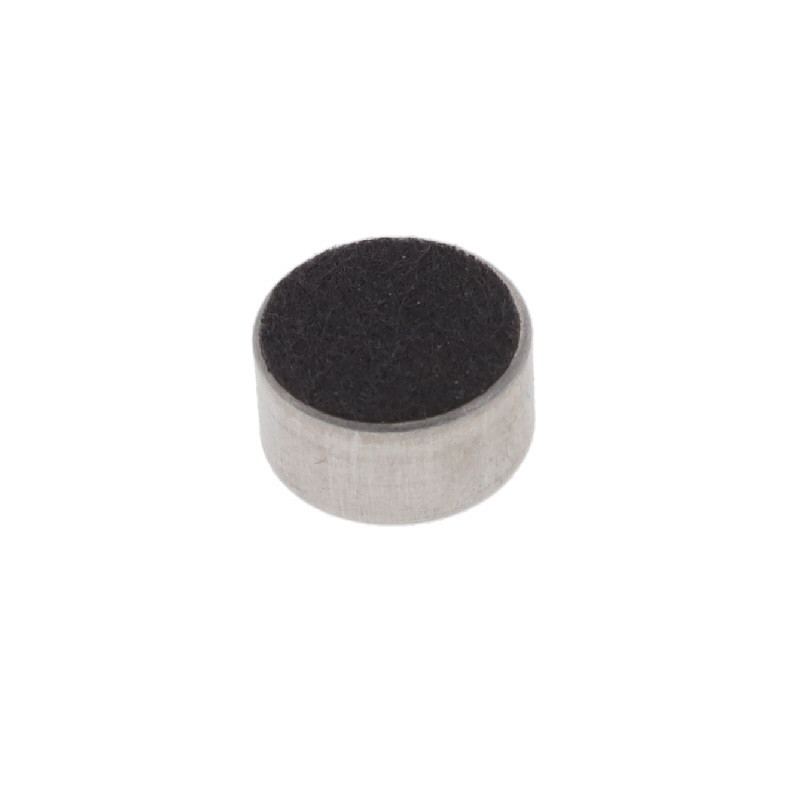

MICROPHONE CAPSULE 100 Hz ~ 20 kHz
€0.95
100Hz ~ 20kHz Analog Electret Condenser Microphone 1.5V ~ 10V Omnidirectional (-42dB ±2dB at 94dB SPL) Solder Pads
Security policy
Delivery policy
Manufacturer: Same Sky (Formerly CUI Devices)
Type: Electret Capacitor
Output Type: Analog
Direction: Omnidirectional
Frequency Range: 100Hz ~ 20kHz
Sensitivity: -42dB ±2dB @ 94dB SPL
Signal-to-Noise Ratio: 58dB
Impedance: 1.5kOhms
Voltage Range: 1.5V ~ 10V
Current - Supply: 500µA
Termination: Solder Pads
Size / Dimensions: 0.382" (9.70mm) Dia.
Height (Max): 0.264" (6.70mm)
Shape: Circular
Base Product Number: CMA-6542
483226
Data sheet
- Local do artigo na loja
- CTP011
Specific References
- MPN
- CMA-6542TF-K
