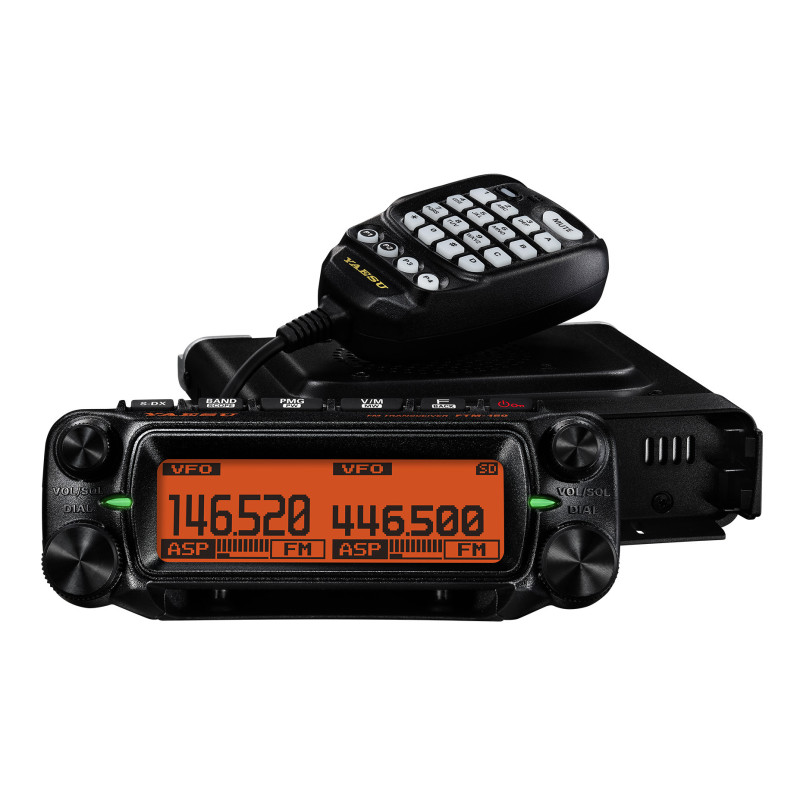

Yaesu FTM-150E ASP Dual Band 2m/70cm FM Mobile Transceiver 55W/50W

Yaesu FTM-150EASP dual band 2m/70cm FM mobile transceiver with up to 55W on VHF and 50W on UHF, two independent receivers, detachable front panel, Super-DX with ASP, Band Scope, 1103 memories and powerful 6W audio.

Description

The Yaesu FTM-150EASP is a dual band FM mobile transceiver for the 2 metre and 70 centimetre amateur radio bands, designed for mobile installation, base station use, local communications, repeaters and reliable VHF/UHF operation.

With transmit power up to 55W on VHF and 50W on UHF, selectable in several levels, the FTM-150EASP provides excellent performance for analogue FM communication. Its robust construction, heavy-duty heatsink and FACC — Funnel Air Convection Conductor system help maintain stable transmit power during extended operation.

This model features true dual band operation, allowing different combinations such as V+V, U+U, V+U and U+V. Its two independent receivers make it possible to monitor two frequencies at the same time, which is highly useful for repeaters, local channels, APRS/packet applications, support monitoring or mobile operation.

The Super-DX function, combined with ASP — Audio Digital Signal Processor, improves weak signal reception and helps provide clearer audio in difficult conditions. The radio also includes a high-resolution Band Scope, allowing visual monitoring of up to 47 channels, as well as advanced memory functions such as PMG — Primary Memory Group and MAG — Memory Auto Grouping.

The detachable front panel makes installation easier in vehicles or compact radio setups. The radio includes both a main body speaker and a front panel speaker, providing a total audio output of 6W for loud and clear reception. The main body speaker level can be adjusted according to user preference.

Main features

• Dual band FM mobile transceiver
• Brand: Yaesu
• Model: FTM-150EASP
• Supported bands: 2m / 70cm
• European version transmit range: 144–146 MHz / 430–440 MHz
• Wideband receive: 108–550 MHz
• Emission modes: FM / NFM
• Transmit power: 55W on VHF / 50W on UHF
• Selectable power levels: 55W/50W, 25W and 5W
• Two independent receivers
• True dual band operation: V+V, U+U, V+U, U+V
• Super-DX function
• ASP digital audio processing
• High-resolution Band Scope up to 47 channels
• 1103 memory channels
• PMG — Primary Memory Group
• MAG — Memory Auto Grouping
• Detachable front panel
• Front panel speaker: 3W
• Main body speaker: 3W
• Total audio output: 6W
• Compatible with microSD memory cards
• Bluetooth interface: optional, with BU-5 module
• Power supply: 13.8V DC
• Approximate receive current: 0.5A
• Transmit current: up to 11A on VHF / 10A on UHF
• Antenna impedance: 50 Ohm
• Antenna connector: SO-239
• Main radio unit dimensions: 139 x 42 x 133 mm
• Controller dimensions: 148 x 56 x 56 mm
• Approximate weight: 1.2 kg
• Country of origin: Japan

Highlighted functions

• Super-DX + ASP: improves weak signal reception and audio intelligibility.
• True dual band: allows two frequencies to be monitored at the same time, even within the same band.
• Band Scope: displays channel activity on screen, making active signals easier to locate.
• PMG: monitors up to 5 important frequencies or memory channels.
• MAG: automatically groups memory channels by band.
• Detachable front panel: ideal for mobile or compact station installation.
• 6W audio output: combination of front panel and main body speakers.

Package contents

• Yaesu FTM-150EASP transceiver
• DTMF handheld microphone
• Mobile mounting bracket
• DC power cable with fuse
• Operating manual

Recommended applications

• Mobile amateur radio operation
• Fixed VHF/UHF station use
• Repeater communication
• Local 2m and 70cm communication
• Vehicle installation
• VHF/UHF channel monitoring
• Emergency and support communications
• Amateur radio clubs
• Use with a 13.8V power supply at a base station

Important note

Transmission with this equipment requires a valid amateur radio licence and must comply with the frequencies and power limits allowed by local regulations. For base station operation, a suitable power supply, properly tuned antenna and good quality coaxial cable are recommended.
