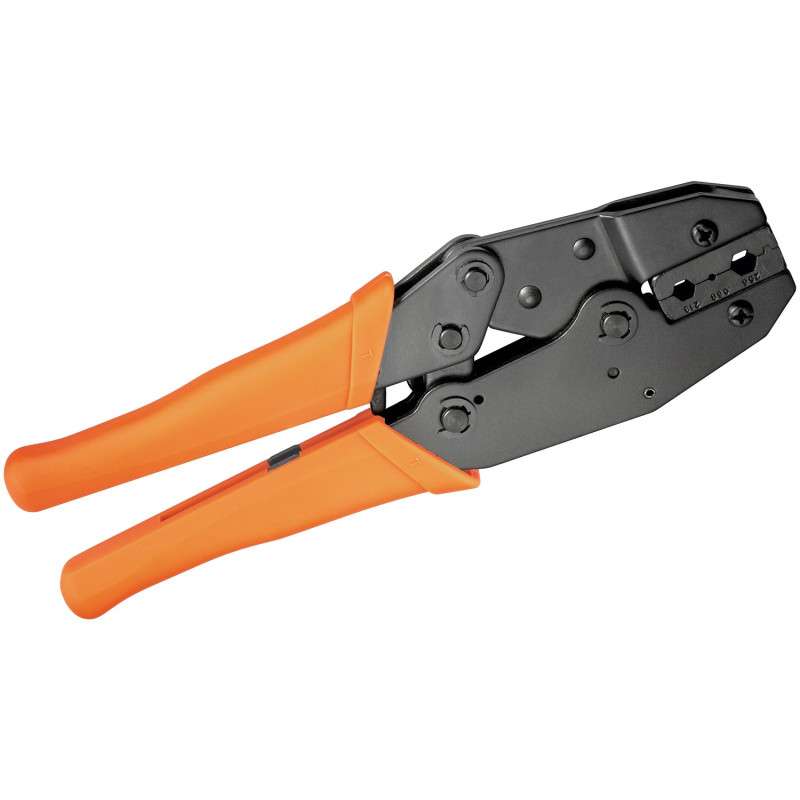

The Goobay 11366 is a crimping tool designed for assembling coaxial connectors in RF, telecommunications, antenna, video, measurement and technical systems.

It is suitable for BNC, TNC, SMA and N connectors and compatible with several coaxial cable types, including RG-58, RG-59, RG-62, RG-140, RG-141, RG-142, RG-210, RG-223, RG-303 and RG-400.

The tool has 3 crimping jaws, with crimp diameters of 6.5mm, 5.41mm and 1.72mm, allowing work with different compatible connector sleeves and terminals. The ratchet function helps apply uniform preset pressure for more consistent crimping results.

The integral lock prevents the pliers from opening too early, so the crimping process must be completed before release. If the tool jams during crimping, it can be opened using the integrated emergency release.

Its robust metal construction with burnished head provides improved durability and corrosion protection. The lever transmission allows easier opening and closing and helps reduce hand fatigue during repeated work.

Main features

Crimping tool for coaxial connectors
Brand: Goobay
Reference: 11366
EAN: 4040849113666
Tool type: crimping tool
Compatible connectors: BNC, TNC, SMA and N
Compatible cables: RG-58, RG-59, RG-62, RG-140, RG-141, RG-142, RG-210, RG-223, RG-303 and RG-400
Crimp diameters: 6.5mm, 5.41mm and 1.72mm
Number of crimping jaws: 3
Ratchet function: yes
Integral lock: yes
Emergency release: yes
Construction: robust metal design
Head: burnished
Colour: black and orange
Length: 215mm
Width: 65mm
Height: 20mm
Weight: 464g
Packaging type: Retail Blister
Sales unit: 1 piece in blister
Main application: crimping coaxial connectors on compatible RF cables

Recommended applications

BNC connector assembly
TNC connector assembly
SMA connector assembly
N connector assembly
RG-58 and RG-59 coaxial cables
Coaxial cables not listed in the specification should be checked before use
RF installations
Antennas and communications
Video, CCTV and RF measurement
Technical workshops and maintenance
Custom coaxial cable assembly
Repairing coaxial cables with compatible crimp connectors

Important note

Before use, always confirm the coaxial cable type, exact connector model, crimp sleeve diameter, correct die position, connector assembly sequence and RF system compatibility.

This tool is intended for BNC, TNC, SMA and N connectors compatible with the available crimp diameters. Compatibility with every connector or every coaxial cable should not be assumed without checking the connector datasheet.

For a reliable connection, prepare the cable correctly, strip braid and dielectric according to the connector manufacturer’s dimensions and check continuity and absence of short circuits after crimping.

This item corresponds only to the Goobay 11366 crimping tool. Connectors, coaxial cables, strippers, cutters, adapters, measuring instruments and other accessories are not included unless expressly stated otherwise.
