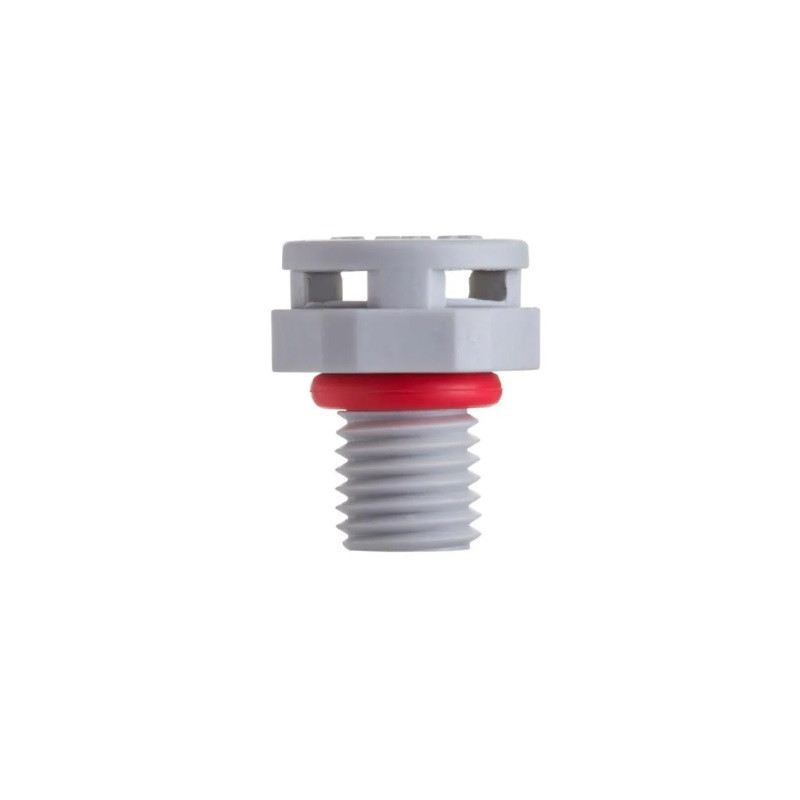

Amphenol LTW M6 IP68 Pressure Relief Vent – VENT-PS2NGY-O8001

The Amphenol LTW VENT-PS2NGY-O8001 is a compact pressure relief vent designed to equalize internal and external pressure in electrical enclosures, electronic equipment and other sealed compartments.

Temperature changes can create pressure differences inside the equipment, placing additional stress on seals and increasing the risk of moisture ingress. Its ePTFE membrane provides controlled airflow, helping to reduce these pressure differences without compromising enclosure protection.

This version uses an oleophobic membrane, providing resistance to water as well as additional protection against oils and other contaminating liquids. Its grey plastic body, compact M6 × 0.75 thread and IP68 protection make it suitable for space-restricted installations and demanding industrial environments.

Main features

• Manufacturer: Amphenol LTW
• Part number: VENT-PS2NGY-O8001
• Type: pressure relief and equalization vent
• Body material: plastic
• Colour: grey
• Mounting thread: M6 × 0.75
• Mounting system: screw thread
• Supplied: without mounting nut
• Membrane: oleophobic ePTFE
• Membrane resistance: water and oils
• Air permeability: above 300 ml/min at 7 kPa
• Protection rating: IP68
• Operating temperature: −40°C to +125°C
• Salt-spray resistance: 1000 hours
• Net weight: approximately 0.95 g
• Shielding: non-shielded
• Approximate dimensions: 10 mm diameter and 12.2 mm length

Recommended applications

• Compact electrical and electronic enclosures
• Telecommunications equipment
• Outdoor LED lighting
• Industrial sensors and devices
• Cameras and surveillance systems
• Automotive and transport equipment
• Energy and battery systems
• Equipment exposed to water, oils or moisture
• Enclosures subject to temperature and pressure changes

Important note

This part is supplied without a mounting nut and is normally intended for direct installation into an M6 × 0.75 threaded hole. A compatible nut must be purchased separately when installing it in an unthreaded panel.

The IP68 rating depends on correct surface preparation, sealing and installation. Avoid excessive tightening force, as this may damage the plastic body, thread or membrane.
