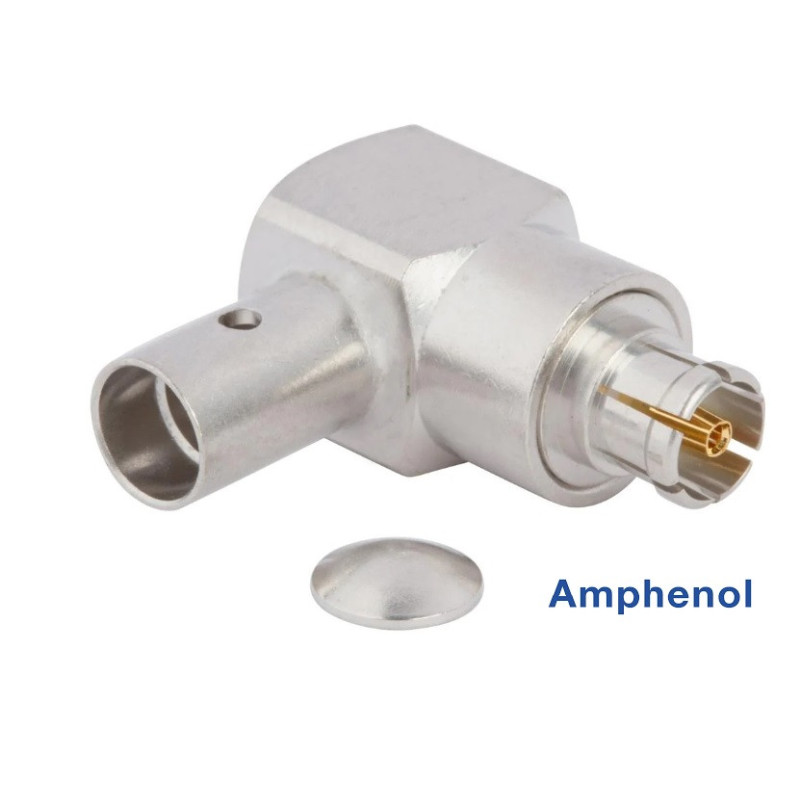

PSMP Right-Angle Male RF Connector 50 Ohm for .141" Cable

The Amphenol RF 915-1001 is a coaxial connector from the PSMP series, designed for use with .141" semi-rigid cable. Its right-angle body makes it a practical solution for RF applications where cable routing needs to be optimized or where connection space is limited.

This model has 50 Ohm impedance and a maximum frequency of 2.4 GHz, making it suitable for a range of coaxial interconnect applications within this operating range. The connector uses solder termination for both body finishing and contact connection.

It uses a push-on mating mechanism, offers 100 mating cycles, has a white bronze body finish, beryllium copper body and contact material, gold-plated contacts, and an operating temperature range from -65 °C to +165 °C. It is a plug with female socket contact, intended for cable mount / free hanging installation.

Features:

• RF / coaxial connector
• Brand: Amphenol RF
• Reference: 915-1001
• RF series: PSMP
• Type: right-angle plug
• Contact type: socket (female)
• Impedance: 50 Ohm
• Maximum frequency: 2.4 GHz
• Cable type: .141" semi-rigid
• Termination style: solder
• Mounting style: cable mount / free hanging
• Mating mechanism: push-on
• Polarity: standard
• Body finish: white bronze
• Body material: beryllium copper
• Contact material: beryllium copper
• Contact plating: gold
• Mating cycles: 100
• Operating temperature: -65 °C to +165 °C
• Approximate weight: 4.410 g
