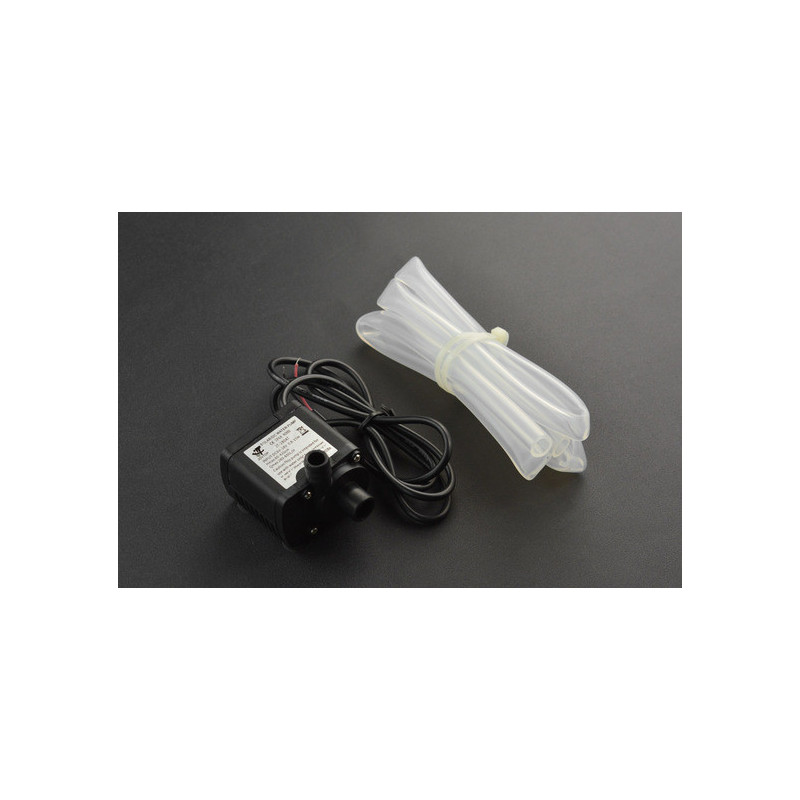

DFRobot FIT0563 6–18 V DC Mini Submersible Water Pump with Tube

The DFRobot FIT0563 is a compact water pump designed to operate while fully submerged. It is suitable for irrigation projects, small fountains, decorative waterfalls, aquariums and water circulation or transfer systems.

The pump operates from a 6 to 18 V DC power supply and features manual inlet-flow adjustment. Depending on the applied voltage and installation conditions, it provides a flow rate of 280 to 500 litres per hour and a pumping head ranging from 60 cm to 4.2 metres.

An integrated filter helps prevent larger particles from entering the pump. The suction cups secure the unit to smooth surfaces, reducing movement and vibration during operation.

With a noise level below 40 dB, the pump is suitable for projects requiring relatively quiet operation. It is supplied with an approximately one-metre power cable, DC connector and water tube.

Main features

• Brand: DFRobot
• Reference: FIT0563
• Type: mini submersible water pump
• Power supply: 6 to 18 V DC
• Current consumption: approximately 65 to 500 mA
• Power consumption: approximately 0.8 to 15 W
• Flow rate: 280 to 500 l/h
• Pumping head: 60 to 420 cm
• Flow adjustment: manual
• Noise level: below 40 dB
• Power connector: 5.5 mm DC connector
• Cable length: approximately 1 m
• Integrated filter: yes
• Suction-cup mounting: yes
• Dimensions: approximately 45 × 43 × 30 mm
• Recommended medium: water
• Operation: submerged use only

Recommended applications

• Automatic irrigation systems
• Decorative fountains and waterfalls
• Aquarium water circulation
• Water transfer and replacement
• Arduino, Raspberry Pi and microcontroller projects
• Solar-powered systems
• Models and educational projects
• Water-circulation and cooling systems

Package contents

• 1 DFRobot FIT0563 mini submersible water pump
• 1 water tube

Important note

This pump is designed to operate only when fully submerged in water. Do not run it dry, as this may cause overheating, premature wear or permanent damage.

Observe the power-supply polarity:

• Brown or red wire: positive
• Blue or black wire: negative

The power supply and control circuit are not included. When controlling the pump with an Arduino, Raspberry Pi or another microcontroller, use a suitable transistor, MOSFET or relay module. Do not power the pump directly from a microcontroller output.
