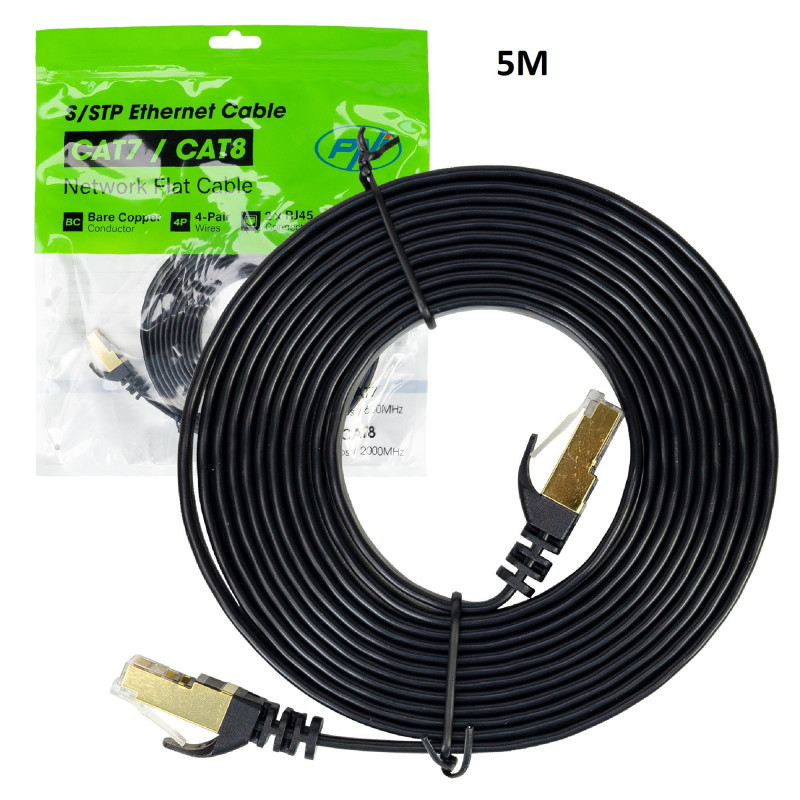

Flat network cable S/STP CAT7 , 2 x RJ45, copper, 10 Gbps, 5m, black

Technical specifications

Cable type: S/STP CAT7

Frequency band: 2000 MHz

Maximum speed: 10 Gbps

Cable length: 5 meters

Conductor: AWG: 32 AWG Material: Copper Size: 7/0.08±0.008 mm

Insulation: Average thickness: 0.12 mm Material: HD-PE Outer diameter: 0.78±0.08 mm Number of wires: 4 pairs

Table wire (drainage): AWG: 32AWG*1C Size: 7/0.08±0.008 mm TC

SCREEN Coverage: 100% Overlap: 25%

 Material: AL-Mylar

Outer shell: Average thickness: 0.51 mm Material: PVC

Outer diameter: 2.5*7.4( ± 0.2) mm

Input impedance: 100±15%Ω (@4~100Mhz) 100±22%Ω (@100~600Mhz)

Nominal temperature: -26 ~ 80°C

Propagation delay: 548ns/100m max

Propagation discrepancy: 45ns/100m Max

Maximum unbalanced capacitance: 330pF/100m

Conductor resistance: 589Ω/Km @20°C

Minimum insulation resistance: 5000 MΩ.Km

Minimum bending radius: 8 x outer diameter of the cable
