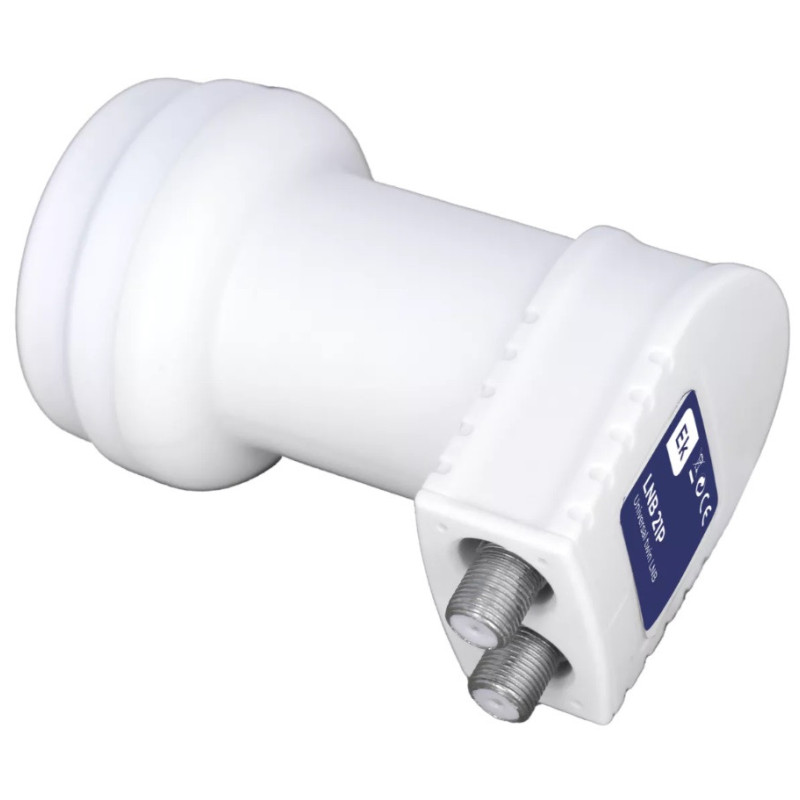

LNB 21P - LNB - 2 outputs - Twin LNB - Ekselans
€12.18
This twin LNB offers a typical gain of 55 dB, a noise figure of 0.3 dB, and polarity rejection of 25 dB. It accepts input frequencies of 10.7–11.7 GHz and 11.7–12.75 GHz, with outputs B1 950–1950 MHz and B2 1100–2150 MHz. The PLL oscillator with an open-loop frequency of 9.75 GHz (0 kHz) and 10.6 GHz (22 kHz) ensures stability between -30 °C and +60 °C, with a variation of ±2 dB. Power supply of 10.5–14 V DC (vertical) or 16–20 V DC (horizontal); current consumption of 140 mA. Compatible with satellite systems, with polarity rejection of 25 dB.
Security policy
Delivery policy
- LNB 21P REFERENCE
- Code: 022029
- Type: Twin
- Input Frequency: 10.7 - 11.7 GHz / 11.7 - 12.75 GHz
- PLL Oscillator
- O.L.1 Frequency: 9.75GHz (0KHz)
- O.L.2 Frequency: 10.6GHz (22KHz)
- O.L. Stability MHz: ±2 dB (-30…+70ºC)
- Output frequency B1: 950 - 1950 MHz
- Output frequency B2: 1100 - 2150 MHz
- Gain: 55dB Typ.
- Noise figure: 0.3dB
- Phase noise: -50 dBc/Hz (10 Khz), -75 dBc/Hz (100 Khz)
- Power supply / Polarity control: 10.5-14 Vdc (V) vertical, 16-20 Vdc (H) horizontal
- Current consumption: 140 mA
- Polarity rejection: 25dB Typ
- Operating temperature: -30…+60ºC
792257
Specific References
- EAN13
- 8436597792257
- MPN
- 022029
