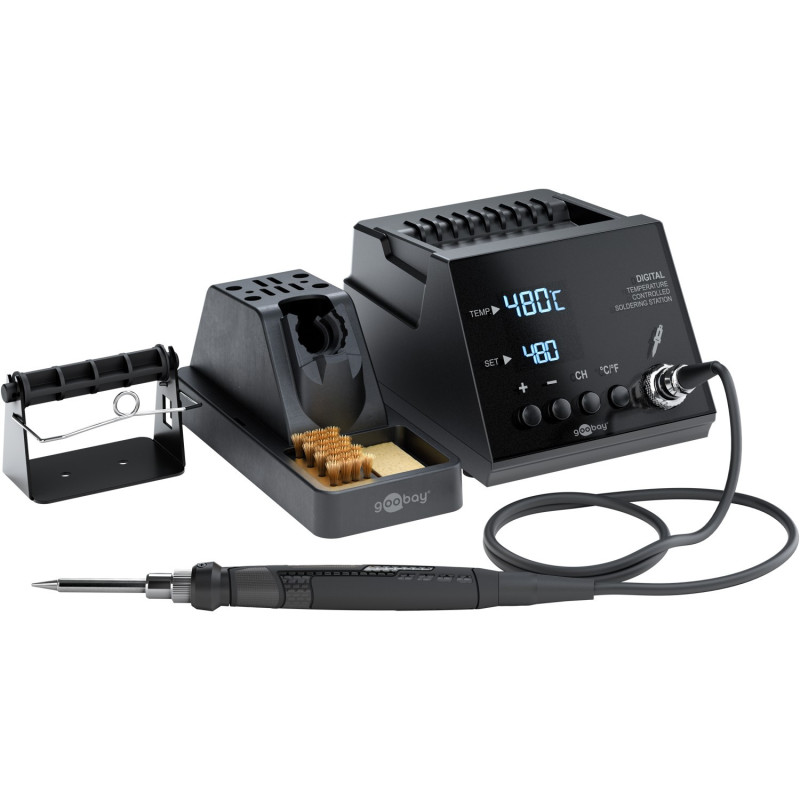

The Goobay 78624 is a 70W digital soldering station designed for electronics work, PCB repair, component assembly, prototyping, model making, pyrography and technical bench use.

With adjustable temperature from 160 to 480°C, it allows the heat to be adapted to the task, solder, component or material being used. Digital control makes precise temperature adjustment easier and the display provides clear reading during operation.

The station includes a CH button, allowing a custom temperature to be saved so the unit automatically heats to that value when switched on. This is practical for users who often work at the same temperature.

The soldering iron heats quickly and features a union nut for easy soldering tip replacement. The cable from the soldering iron to the station is approximately 1.15m, and the power cord with type E/F plug is also approximately 1.15m, offering good freedom of movement on the workbench.

The station is supplied with soldering iron with soldering tip, soldering iron holder, solder holder and soldering sponge, ready for use with suitable consumables.

The impact-resistant housing improves durability in workshop, bench or laboratory environments.

Main features

Digital soldering station
Brand: Goobay
Reference: 78624
EAN: 4040849786242
Power: 70W
Input voltage: 220 to 240V AC
Frequency: 50Hz
Temperature range: 160 to 480°C
Temperature control: digital
CH button: saves a custom temperature
Display: large digital display, easy to read
Listed heat-up time: approx. 8 seconds to melt solder
Device fuse: F 5A / 250V
Protection rating: IP20
Protection class: I
Soldering iron cable length: approx. 1.15m
Power cable length: approx. 1.15m
Power plug: type E/F
Main unit dimensions: 156 x 115 x 92mm
Main unit weight: approx. 1600g
Soldering iron dimensions: 220 x 19 x 19mm
Soldering iron weight: approx. 89g
Ambient operating temperature: 5 to 40°C
Listed relative humidity: below 85 percent, non-condensing
Colour: black
Packaging type: Retail Box
Markings: CE and WEEE
Main application: electronic soldering and precision work

Listed contents

1 Goobay 78624 digital soldering station
1 soldering iron with soldering tip
1 soldering iron holder
1 solder holder
1 soldering sponge

Recommended applications

Soldering electronic components
PCB repair
Electronic kit assembly
Prototyping and technical bench work
Amateur radio and communication electronics
Model making and small technical tasks
Cable, plug and connector maintenance
Pyrography, when compatible with the tip and selected temperature
Workshop, laboratory, school or advanced home use

Important note

Before use, always confirm the supply voltage, suitable working temperature, solder type, tip type, workplace ventilation, electrical safety and compatibility of the components to be soldered.

The station operates at high temperatures and must be used on a stable, heat-resistant surface away from flammable materials. Do not touch the tip or heated metal parts during operation.

Always use in a ventilated area and follow proper soldering precautions. For sensitive components, pay attention to temperature, contact time and ESD protection where applicable.

This item corresponds to the Goobay 78624 digital soldering station with the listed accessories. Solder wire, flux, desoldering braid, additional tips, silicone mat, safety glasses and other accessories are not included unless expressly stated otherwise.
