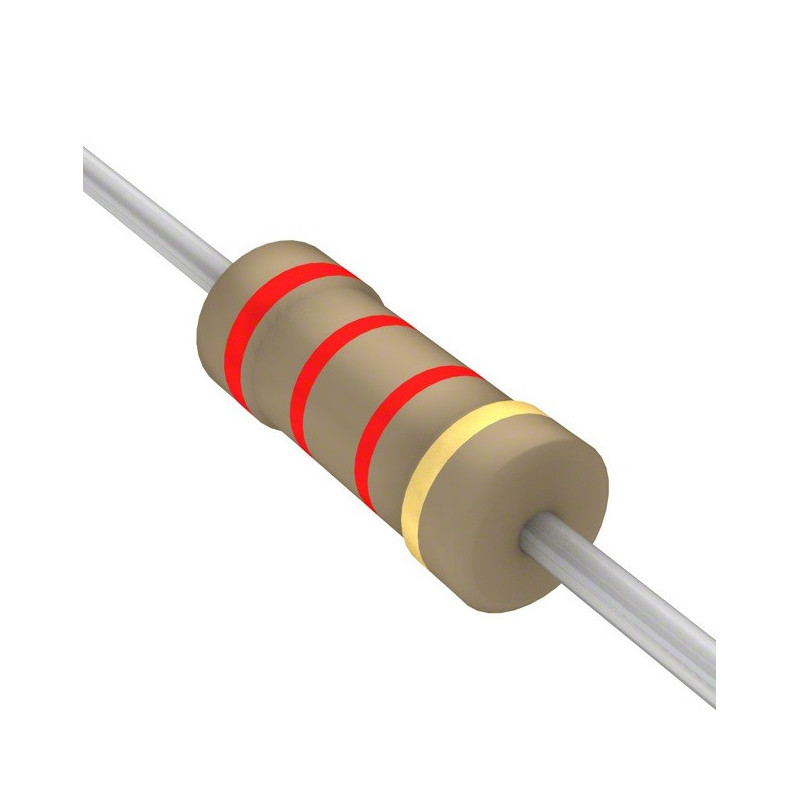

The Stackpole CF14JT2K20 is an axial carbon film resistor for through-hole mounting, suitable for general use in electronic circuits, repairs, prototyping and small assemblies.

With a nominal value of 2.2kΩ, 1/4W / 0.25W power rating and ±5% tolerance, it is suitable for signal circuits, biasing, voltage dividers, current limiting, control circuits, electronic equipment and bench projects.

The carbon film construction provides an economical and reliable solution for general-purpose commercial and industrial applications. The axial format makes it easy to install on perforated boards, THT PCBs and experimental circuits.

Main features

• Axial resistor for THT mounting
• Brand: Stackpole Electronics
• Part number: CF14JT2K20
• Series: CF
• Resistance value: 2.2kΩ
• Power rating: 0.25W / 1/4W
• Tolerance: ±5%
• Technology: carbon film
• Mounting type: through-hole / THT
• Package: axial
• Number of terminals: 2
• Indicated temperature coefficient: 0 to -400 ppm/°C
• Operating temperature range: -55°C to +155°C
• Approximate body dimensions: Ø2.30 mm x 6.00 mm
• Flame-retardant coating
• Compatible with automatic sequencing/insertion
• Lead-free product
• RoHS and REACH compliant
• Halogen-free

Recommended applications

• Electronic equipment repair
• Prototyping on breadboards, perfboard or PCB
• Voltage dividers
• Transistor biasing
• Current limiting
• Signal circuits
• Audio and radio equipment
• Power supplies and auxiliary circuits
• General electronics projects
• Technical maintenance and workbench use

Important note

Before use, always check the resistance value, circuit power dissipation, tolerance and operating temperature. In circuits where dissipation is close to the power rating, an appropriate safety margin should be considered.
