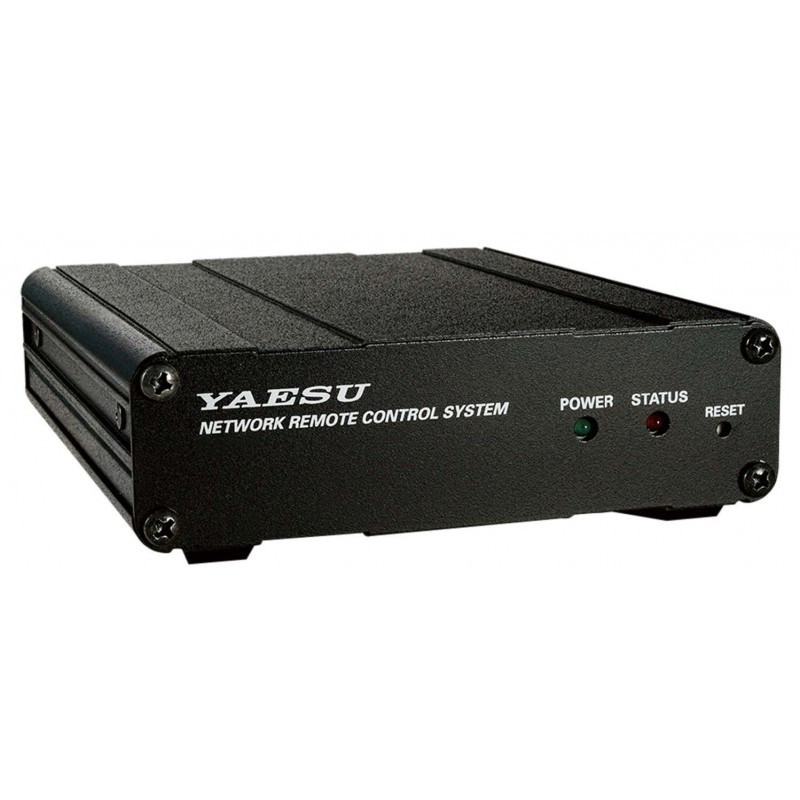

The Yaesu SCU-LAN10 is a LAN unit for remote operation, designed to control compatible Yaesu transceivers over a LAN connection or via the Internet.

This accessory is intended for the Yaesu FTDX101 series and Yaesu FTDX10, allowing the radio to be operated from a computer using the appropriate remote-control software. Through the remote-control system, the user can access several transceiver functions, including frequency change, mode selection, receive audio, PTT/MOX transmission, receiver parameter control and display areas such as the spectrum scope, depending on the radio model and available functions.

The SCU-LAN10 is especially useful for amateur radio stations where the operator wants to control the transceiver from another room, a local network or a remote location, provided that the network installation is correctly configured.

For Internet use, router, firewall, network port, system security and control software settings may be required. Remote operation requires basic knowledge of computers, networking and transceiver configuration.

For the FTDX101 series, the manufacturer lists the following minimum firmware requirements for proper operation: MAIN V01-14, DISPLAY V01-06, IF DSP V01-05 and SDR V02-03, or later versions.

Main features

LAN unit for remote operation
Manufacturer / brand: Yaesu
Model: SCU-LAN10
Reference: ABB80X002
Accessory type: LAN unit / remote control interface
Listed compatibility: Yaesu FTDX101 series
Listed compatibility: Yaesu FTDX10
Models shown on the product page: Yaesu FTDX101D and FTDX101MP
Main function: remote operation of compatible transceiver
Operating connection: LAN or Internet
Software: Yaesu Network Remote Control Software
Remote control: frequency, mode, audio, PTT/MOX and compatible functions
Remote display: spectrum scope and control areas depending on the radio used
Receive operation: yes, depending on setup
Transmit operation: yes, depending on setup and applicable regulations
Minimum FTDX101 MAIN firmware: V01-14
Minimum FTDX101 DISPLAY firmware: V01-06
Minimum FTDX101 IF DSP firmware: V01-05
Minimum FTDX101 SDR firmware: V02-03
Network configuration: required
Router/firewall configuration: may be required for Internet remote access
Main application: remote control of amateur radio station
Transceiver not included
Computer, router, network cable and additional accessories not included unless otherwise stated

Recommended applications

Remote operation of compatible Yaesu transceivers
Use with Yaesu FTDX101D
Use with Yaesu FTDX101MP
Use with Yaesu FTDX10
Amateur radio stations on a local network
Remote operation via Internet, when correctly configured
Radio control from a computer
Remote shack or station in a separate location
HF operation with remote control
Remote monitoring and reception
Fixed stations where remote access is planned

Important note

Before purchase and installation, always confirm the exact transceiver compatibility, firmware version, required software, operating system, available connections, required cables and network conditions.

Remote operation via the Internet may require configuration of router, ports, firewall, IP address, security permissions and software. Network security is the responsibility of the user.

During remote operation, delays, audio interruptions, voice quality changes or data loss may occur, depending on network quality and the computer environment.

Remote transmission on amateur radio bands requires a valid licence and must comply with the regulations applicable in the country of use. Always confirm whether remote operation is permitted and under what conditions.

This item corresponds to the Yaesu SCU-LAN10 LAN unit. Transceiver, computer, router, microphone, speaker, network cable and other accessories are not included unless expressly stated otherwise.
