Yaesu YSK-891 Front Panel Separation Kit for FT-891

The Yaesu YSK-891 is a front panel separation kit developed specifically for the Yaesu FT-891 transceiver.

This accessory allows the radio control panel to be separated from the main transceiver body, providing greater installation flexibility in vehicles, portable stations, compact fixed installations or locations where there is not enough space to place the complete transceiver in a convenient operating position.

With the YSK-891, the main body of the FT-891 can be installed in a more protected or discreet location, while the front panel remains accessible to the operator for frequency, mode, menu and function control.

The kit includes the required cables for front panel separation, microphone extension and speaker extension, as well as a mounting bracket for the front panel. This solution is especially useful in mobile installations, where the control head can be mounted on the dashboard or console while the main radio unit is installed under a seat, in the boot/trunk or in another suitable location.

It is an original Yaesu accessory, recommended for operators who want a cleaner, more ergonomic installation adapted to the available space in the vehicle or station.

Main features

Front panel separation kit
Manufacturer / brand: Yaesu
Model: YSK-891
Reference: ABA55X001
Accessory type: separation kit / remote mounting kit
Listed compatibility: Yaesu FT-891
Main function: separating the front panel from the main radio unit
Main application: mobile, portable or compact installation
Front panel separation cable: 6m
Control head cable connectors: 2 x 6-pin RJ-11
Microphone extension cable: 5m
Microphone cable connectors: 2 x 8-pin RJ-45
Double RJ-45 adapter: included
Speaker extension cable: 6m
Speaker cable connection: 3.5mm mono plug/receptacle
Front panel mounting bracket: included
Mounting screw: M5 x 10
Small padded adhesive tape: included
Illustrated instructions: included, depending on manufacturer/distributor supply
Listed approximate weight: 400g
Original Yaesu product
Transceiver not included
Suitable for mobile installations and space-limited stations

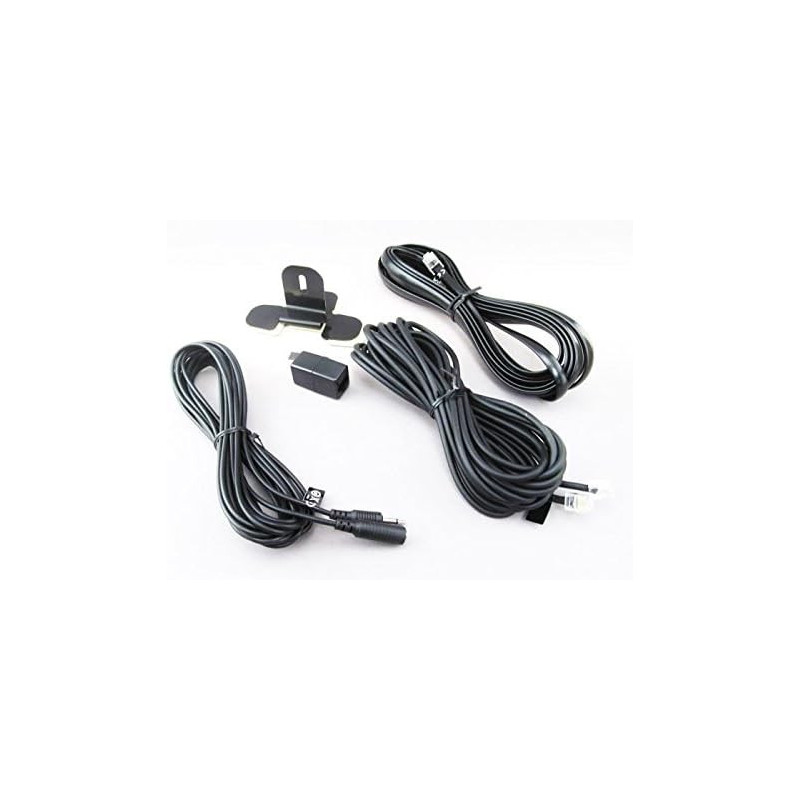

Package contents

Front panel separation cable, 6m
Microphone extension cable, 5m
Double RJ-45 adapter for microphone connection
Speaker extension cable, 6m
Front panel mounting bracket
M5 x 10 screw
Small padded adhesive tape
Mounting instructions

Recommended applications

Use with Yaesu FT-891
Mobile vehicle installations
Mounting the front panel on dashboard or console
Installing the main radio unit in a separate location
Compact amateur radio stations
Portable operation with improved equipment organisation
Installations where front-panel space is limited
Setups requiring the control panel to be away from the radio body
HF mobile amateur radio
Improved FT-891 operating ergonomics

Important note

Before purchase, always confirm the exact transceiver compatibility, equipment model, available mounting points, installation space, cable routing and manufacturer installation instructions.

The Yaesu YSK-891 is intended for the Yaesu FT-891. Compatibility with other models should not be assumed without prior confirmation in the equipment manual or from the manufacturer.

During installation, cables should be routed safely, avoiding heat sources, moving parts, sharp edges, pedals, airbags or locations where they may interfere with driving. In mobile installations, make sure both the main radio unit and front panel are securely mounted.

This item corresponds to the Yaesu YSK-891 front panel separation kit. The FT-891 transceiver, microphone, external speaker, power supply, antenna, additional mobile mount and other accessories are not included unless expressly stated otherwise.
