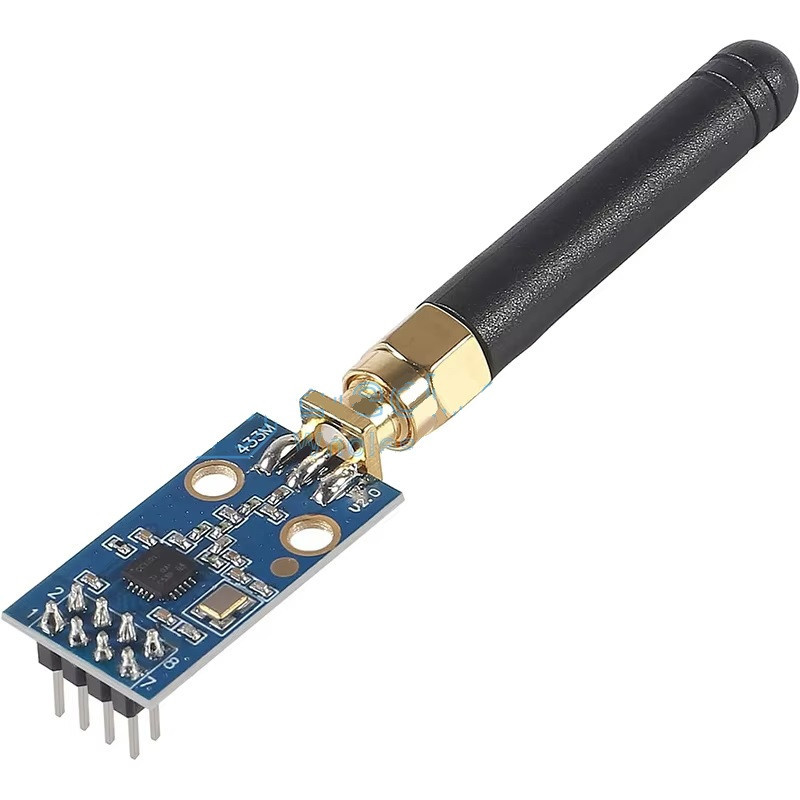

CC1101 V2.0 RF Transceiver Module with Antenna
€6.05
CC1101 V2.0 RF transceiver module with antenna, intended for wireless data transmission and reception in sub-1 GHz frequencies. It supports SPI communication, works across 300 to 348 MHz, 387 to 464 MHz, and 779 to 928 MHz, with 2-FSK, 4-FSK, GFSK, and MSK modulation, data rates up to 600 kbps, and output power up to +10 dBm.
Security policy
Delivery policy
The CC1101 V2.0 with antenna is an RF transceiver module designed for wireless communication projects operating below 1 GHz. It can be used together with compatible microcontrollers and development boards, including Arduino-based systems and other suitable processors, to send and receive radio-frequency data.
This version is presented as a new 8-pin version and includes an antenna, making it a practical solution for integration into electronic projects that require medium-range RF communication. The module can operate within the 300 to 348 MHz, 387 to 464 MHz, and 779 to 928 MHz bands, including the ISM band, commonly used for licence-free applications depending on local regulations.
The module supports several modulation formats, namely 2-FSK, 4-FSK, GFSK, and MSK, with transmission speeds from 0.6 kbps to 600 kbps. Output power is programmable up to +10 dBm, and the stated range is 100 to 150 metres, depending on frequency and usage conditions. Operating voltage is 1.8 V to 3.6 V, and communication with the processor is handled through an SPI interface.
Features:
- CC1101 V2.0 RF transceiver module
- New 8-pin version
- Includes antenna
- SPI communication
- Frequency bands: 300 to 348 MHz, 387 to 464 MHz, 779 to 928 MHz
- Suitable for sub-1 GHz applications
- Supported modulation: 2-FSK, 4-FSK, GFSK, MSK
- Data rate: 0.6 kbps to 600 kbps
- Programmable output power: up to +10 dBm
- Typical range: 100 to 150 metres
- Operating voltage: 1.8 V to 3.6 V
