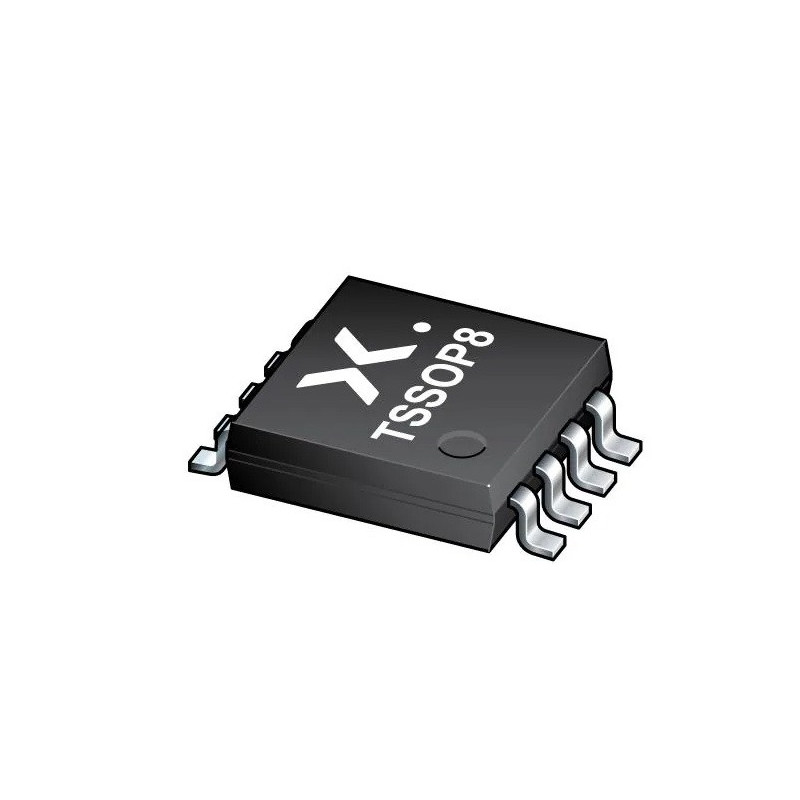

74LVC1G74DP-Q100H TSSOP-8 SMD AEC-Q100 Flip-Flop Type D Nexperia

The 74LVC1G74DP-Q100H is a logic integrated circuit from the 74LVC family, manufactured by Nexperia, consisting of a single D-type flip-flop with positive-edge triggering.

This device includes a data input D, clock input CP, independent set and reset inputs, and complementary Q and /Q outputs. The state present at the D input is stored in the flip-flop on the LOW-to-HIGH clock transition, making it useful for logic memory, synchronization and digital control circuits.

With a 1.65V to 5.5V supply range, 5.5V tolerant inputs, low-power CMOS operation and TTL-level compatibility, the 74LVC1G74DP-Q100H is suitable for low-voltage digital systems, logic interfaces, electronic equipment, control modules, instrumentation and applications requiring good noise immunity.

Its AEC-Q100 Grade 1 qualification makes it suitable for automotive and demanding environments, with operation up to +125°C. The TSSOP-8 package allows compact mounting on printed circuit boards using SMD/SMT technology.

Main features

D-type flip-flop
Manufacturer / brand: Nexperia
Logic family: 74LVC
Part number: 74LVC1G74DP-Q100H
Category: Flip-Flops / Logic ICs
Number of circuits: 1 circuit
Number of bits: 1 bit
Trigger type: positive edge
Inputs: D, CP, SD and RD
Outputs: Q and /Q
Logic type: CMOS / TTL
Polarity: inverting / non-inverting
Minimum supply voltage: 1.65V
Maximum supply voltage: 5.5V
Overvoltage tolerant inputs: up to 5.5V
Maximum clock frequency: 200MHz
Propagation delay time: 4.1ns
Output drive current: ±24mA at VCC = 3.0V
Low power consumption: CMOS technology
IOFF function: supports partial power-down mode
Noise immunity: high
Mounting: SMD / SMT
Package: TSSOP-8
Package / case: TSSOP-8 / DP
Number of pins: 8
Minimum operating temperature: -40°C
Maximum operating temperature: +125°C
Qualification: AEC-Q100 Grade 1
RoHS: Yes
Approximate weight: 191mg
Suitable for digital logic, synchronization and automotive applications

Recommended applications

Digital logic circuits
Signal synchronization
Logic state storage
Dividers and sequential circuits
Digital control systems
3.3V and 5V logic interfaces
Automotive electronics
Electronic instrumentation
Control modules
SMD development boards and prototypes
Electronic equipment repair
Electronic projects requiring a compact D-type flip-flop

Important note

Before use, always confirm the supply voltage, pinout, package, clock frequency, propagation delays, logic levels, output current and compatibility with the original circuit. The 74LVC1G74DP-Q100H is an SMD component with a compact package, so the pin 1 orientation, proper soldering practices and recommended digital PCB layout should be respected. Although the inputs are tolerant up to 5.5V, the application must always comply with the manufacturer’s specified limits.
