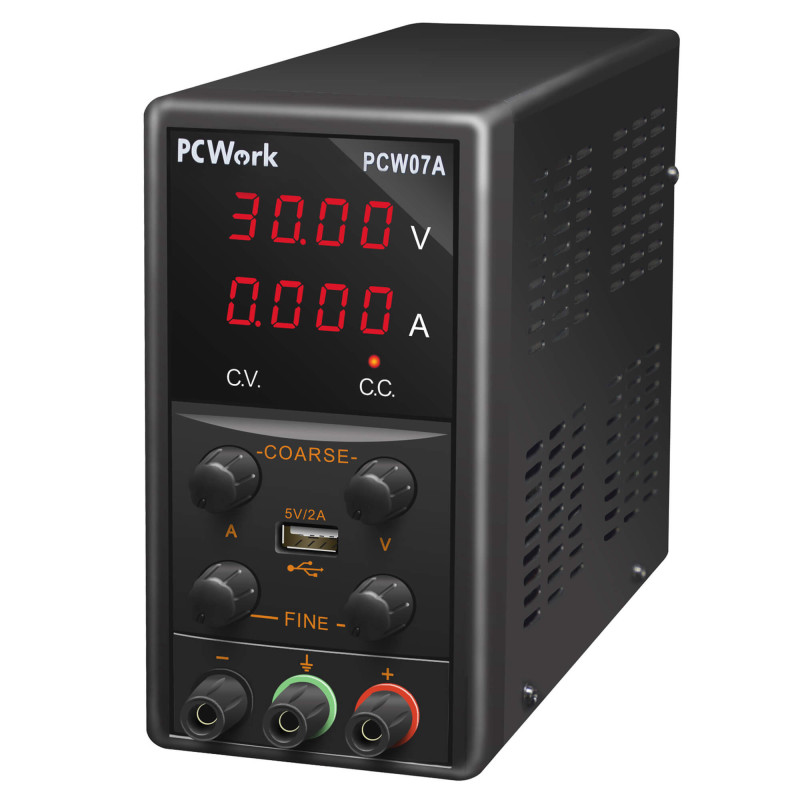

PCWork PCW07A - 0-30V / 0-5A Digital Laboratory Power Supply

The PCW07A laboratory power supply is perfect for anyone from ambitious hobbyists to professional electronic labs. With an output voltage of 0-30V and an output current of 0-5A, this power supply provides high precision, steady, and stable performance. Additionally, the digital calibration and lock function ensures your settings are always accurate, while the surge protection helps to prevent accidents and the 5V/2A USB charging outlet offers the possibility for charging mobile devices such as smartphones and tablets. The 4 digit LED display shows the output that can be easily controlled by the rotary control switches. Finally, the high quality compact design with matte black finish is not only aesthetically pleasing but also highly durable, making this power supply a great choice for any workspace.

FEATURES:

- Max. output voltage: 30V DC

- Max. output current: 5A

- High precision and stable performance

- Digital calibration and lock function

- Overvoltage protection

- 4-digit LED display

- 5V/2A USB charging plug

- High-quality compact design with matte black finish

- Detailed manual with images, available in multiple languages: EN, GER, ES, FR, PT, PL, IT

- Test leads not included!

SPECIFICATIONS:

- Output voltage: 0-30V DC

- Output current: 0-5A

- Input voltage: 100 ~ 253 V AC ± 10% | 50HZ ~ 60Hz ± 2Hz

- Line regulation: CV≤0.1% + 3mV | CC≤0.2% + 3mA; CV≤0.05% + 3mV | CC≤0.5% + 10mA

- Load regulation: CV≤0.01% + 5mV | CC≤0.2% + 5mA

- Ripple and noise: CV≤5mVr.ms | DC≤20mAr.ms

- Protection: Constant current and short-circuit

- Voltage display accuracy: LED ± 0.5% + 5 counts

- Current display accuracy: LED ± 0.5% + 5 counts

- Operating temperature: 0 ~ +40 ° C

- Operating relative humidity: <90%

- Safety Classification: CE: EN 61326-1: 2013, EN 61326-2-2: 2013, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 61010-1: 2010; REACH: (EC) No 1907/2006; RoHS: 2011/65/EU and amendment 2015/863/EU

- Dimensions: 21.3 x 7.8 x 15.8 cm

- Weight: 1.8 kg
