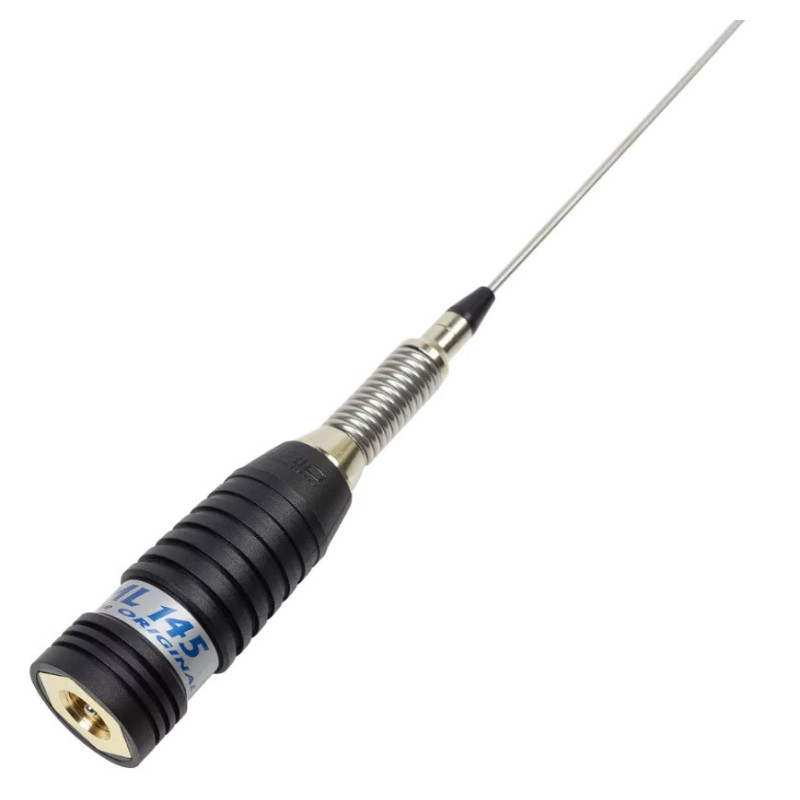

SIRIO ML145 - CB antenna

ML145PL - CB Mobile Antenna, PL type, with spring. Similar performance to the AS145 model but with some improvements. Radiating element with a high-quality stainless steel tapered rod. One of the most popular antennas due to its medium size and the added flexibility provided by the spring between the coil and the rod. Suitable for all types of vehicles. Accepts power up to 900 Watts in SSB mode and 300 Watts continuous. Radiating element only (rod and coil with spring). Base and cable not included. Range: 27 to 28.5 MHz. Adjustable by cutting and fine-tuning the coil. Total length: 1.42 m. Up to 120 channels without needing adjustment. Bandwidth: 1340 kHz. Ideal for vans and trucks.

Type: CB PL Radiator with Spring

Radiation: Omnidirectional

Polarization: Vertical

Impedance: 50 Ohm

Radiation Angle (H-Plane): 360°

Ground Plane: Vehicle

Bandwidth: 1340 kHz @ SWR < 2

Channels: 120 CH

Frequency Range: 27–28.5 MHz (Adjustable)

SWR @ Res. Freq.: < 1.3 SWR

Compatible Systems: CB 27 MHz

Applicable Power: 300W AM/FM / 900W SSB

DC Protection: Short Circuit to Ground

Connector: PL Male

Color: Black

Materials: Copper, Brass, 17/7 PH Stainless Steel, Nylon

Compatible Base Type: SO239 (PL Female)

Dimensions (L): 1.40 m
