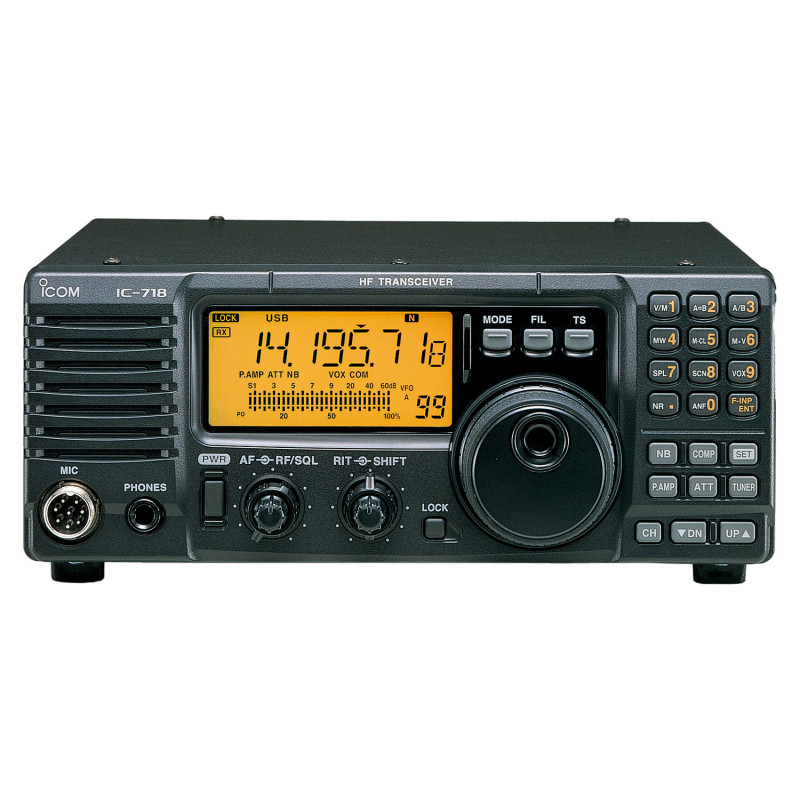

Icom IC-718 100W HF All Band Transceiver

The Icom IC-718 is an HF all band transceiver designed for amateur radio shortwave communications, combining straightforward operation, robust construction and reliable performance.

With up to 100W output power on SSB, CW and RTTY and up to 35W on AM, the IC-718 is suitable for HF band contacts, long-distance communication, base station operation, portable use or as a second backup radio.

The receiver provides general coverage from 0.030 to 29.999MHz, with a guaranteed range of 0.500 to 29.999MHz, allowing reception across a wide range of frequencies. Transmit coverage includes amateur HF bands according to version and applicable regulations.

The radio includes useful reception features such as noise reduction, automatic notch filter, IF Shift for interference rejection, preamplifier, RF attenuator, RF gain control and digital S/RF meter. The FPGA digital filtering system allows selectable IF filter widths, adapting the radio to different modes and operating conditions.

Operation is simple and direct, with a front keypad for frequency entry, accessible controls and a front-mounted speaker for clear audio during operation. The Icom IC-718 also includes VOX, microphone compressor, CW features and 101 memory channels.

It is a suitable choice for users entering HF with a traditional, reliable transceiver without overly complex menus, while retaining the essential functions required for amateur radio operation.

Main features

HF all band transceiver
Manufacturer / brand: Icom
Model: IC-718
Equipment type: amateur radio HF transceiver
SSB / CW / RTTY output power: 2W to 100W
AM output power: 1W to 35W
Operating modes: USB, LSB, CW, RTTY/FSK and AM
Receive coverage: 0.030 to 29.999MHz
Guaranteed receive range: 0.500 to 29.999MHz
Transmit coverage: amateur HF bands according to version / market
Memory channels: 101 channels
Frequency resolution: 1Hz
Frequency stability: less than ±20ppm
Antenna connector: SO-239
Antenna impedance: 50Ω unbalanced
Power supply: 13.8V DC ±15%
Receive current consumption: 0.7A typical standby / 2.0A maximum audio
Transmit current consumption: 20A at 100W output power
Front speaker: yes
Audio output power: more than 2W into 8Ω
External speaker connector: 3.5mm jack / 8Ω
Noise reduction: yes, depending on version
Automatic notch filter: yes, depending on version
IF Shift: yes
Preamplifier: yes
RF attenuator: yes
RF gain control: yes
VOX: yes
Microphone compressor: yes
Digital meter: S/RF, power, ALC and SWR
Filtering system: FPGA digital filtering
IF filter widths: selectable
Operating temperature: -10°C to +60°C
Approximate dimensions: 240 x 95 x 239mm
Approximate weight: 3.9kg
Supplied accessories: HM-219 hand microphone, DC power cable and spare fuses, depending on version
Compatible optional accessories: AH-730, AH-740, AH-710, SP-35/L, SP-41, SM-30, SM-50, MB-23, MB-118 and compatible OPC cables
Suitable for HF operation, base station, second station or portable use with suitable power supply

Recommended applications

HF amateur radio operation
Long-distance communication
SSB operation
CW operation
RTTY / FSK
Shortwave listening
Amateur radio base station
Portable or backup station
First HF transceiver
Second radio for the radio shack
Communication on 160m to 10m bands, according to authorization and version
Use with compatible external antenna tuner
Radio activities, contests and DX contacts

Important note

Before use, always confirm the equipment version, authorized bands, permitted power, power supply, antenna, grounding, cabling, antenna connector and required accessories. The Icom IC-718 requires a 13.8V DC power supply with sufficient current for transmission, so suitable capacity should be provided for current consumption up to approximately 20A.

Transmission on amateur radio bands requires a valid licence and must comply with the regulations applicable in the country of use, including frequencies, modes, power and permitted antenna type. Real performance depends on the antenna, propagation conditions, installation, power supply quality and local interference level.

The antenna tuner, power supply, antenna, mobile bracket and optional accessories may not be included. Always confirm the supplied contents before purchase.
