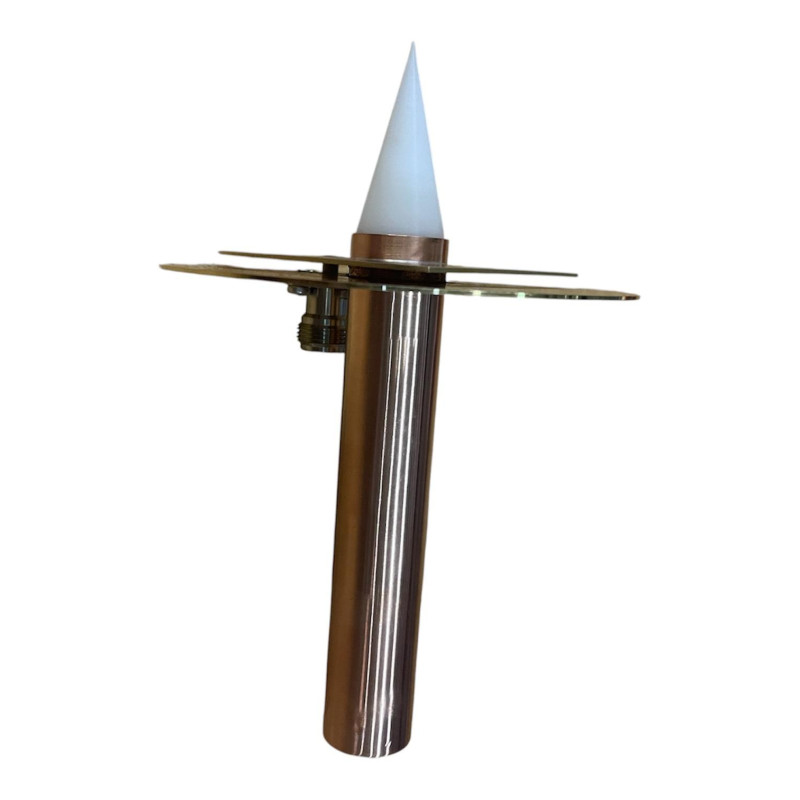

POTY Dual Band 2.4 GHz / 10 GHz Antenna for QO-100 — N Version

The POTY — Patch Of The Year — antenna is a dual band antenna developed for operation via the QO-100 / Es’hail-2 satellite, allowing 2.4 GHz transmission and 10 GHz reception through an LNB.

This new version is supplied fully assembled and tested, making it an excellent alternative to the previous assembly kit. The antenna is ready to be integrated into a QO-100 station, reducing preparation time and ensuring greater consistency during installation.

Each antenna is individually tested and measured after production, typically achieving an SWR of approximately 1.1:1, according to the manufacturer’s measurements.

The N connector version provides a more robust RF connection, making it especially suitable for fixed installations, outdoor use or systems where a stronger mechanical connection is preferred.

Main features

• Dual band POTY antenna for QO-100 / Es’hail-2
• 2.4 GHz transmission
• 10 GHz reception using an LNB
• N connector version
• Supplied fully assembled
• Individually tested and measured after production
• Typical SWR: approximately 1.1:1
• Robust construction
• Carefully finished build
• Suitable for use with offset satellite dishes
• Designed for fixed amateur radio QO-100 satellite stations

Note

For complete QO-100 operation, this antenna must be used together with an LNB, a suitable satellite dish, a 2.4 GHz transmitter/upconverter and the remaining station equipment.
