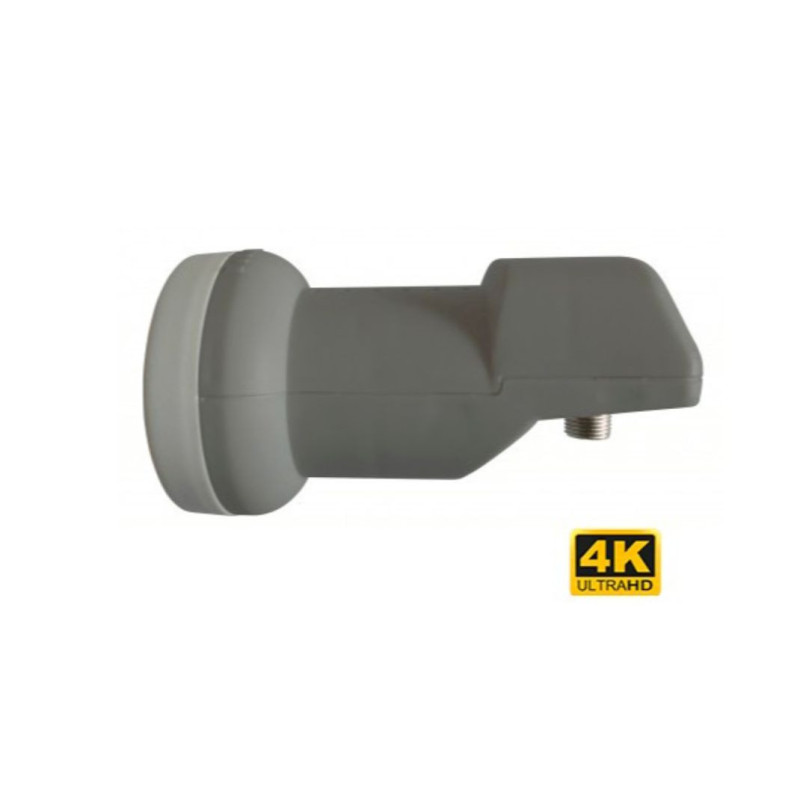

Daxis Single LNB.

The Daxis Single LNB is a low-noise block converter for satellite TV installations, designed to receive and convert the signal collected by the satellite dish into the frequency range used by compatible satellite receivers. The Single configuration is suitable for installations with one connection line.

This model operates with an input frequency in low band from 10.70 to 11.70 GHz and in high band from 11.70 to 12.75 GHz. The output frequency is 950 to 1950 MHz in low band and 1100 to 2150 MHz in high band. The stated local oscillator is 9.75 GHz in low band and 10.60 GHz in high band.

0.1 dB typical noise figure, gain at 25 ºC of 58 dB minimum / 63 dB maximum, 2:1 typical VSWR, 70 mA maximum current consumption, and an operating temperature of -40 ºC to +60 ºC. Polarization switching is done by 12.0 to 14.0 V for vertical and 16.0 to 20.0 V for horizontal, with band switching via 22 kHz ± 4 kHz.

Features:

• Single LNB
• Brand: Daxis
• Low-band input frequency: 10.70 ~ 11.70 GHz
• High-band input frequency: 11.70 ~ 12.75 GHz
• Low-band output frequency: 950 ~ 1950 MHz
• High-band output frequency: 1100 ~ 2150 MHz
• Low-band local oscillator: 9.75 GHz
• High-band local oscillator: 10.60 GHz
• Noise figure: 0.1 dB (typ.)
• Gain at 25 ºC: 58 dB (min.) / 63 dB (max.)
• Gain stability: ± 0.5 dB / 26 MHz
• Cross-polar isolation: 25 dB (typ.)
• Image rejection: 40 dB (min.)
• VSWR: 2:1 (typ.)
• Current consumption: 70 mA (max.)
• Band switching: 0 kHz / 22 kHz ± 4 kHz
• Polarization voltage: 12.0 ~ 14.0 V vertical / 16.0 ~ 20.0 V horizontal
• Operating temperature: -40 ºC to +60 ºC
