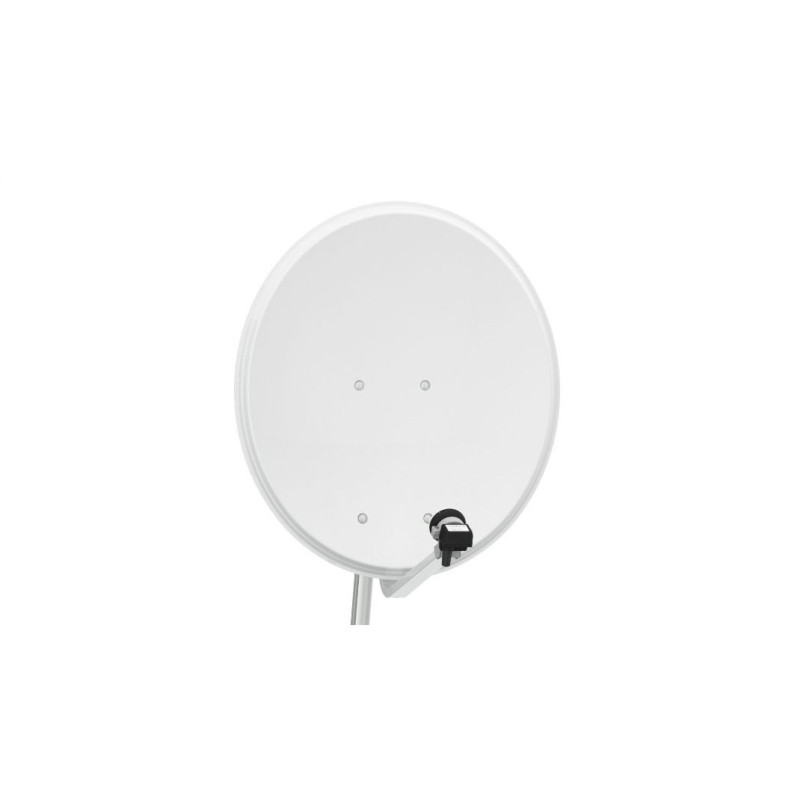

60 cm HP Offset Satellite Dish in Iron with Metal Structure.

The 60 cm HP offset satellite dish is a solution for satellite reception installations, built with an electro-zinc plated iron sheet reflector and metal structure. Its offset design is suitable for residential and technical installations where a compact dish is needed for satellite signal reception.

This model has 510 × 570 mm dimensions, a 327 mm focal distance, and an F/D ratio of 0.64. The 28° offset angle contributes to the characteristic positioning of this type of dish, while efficiency above 70% supports its use in compatible satellite TV installations.

33.5 dBi gain at 10.70 GHz, 34.8 dBi at 11.70 GHz, and 35.4 dBi at 12.75 GHz. The reflector is made of electro-zinc plated iron sheet, with stated thickness of 0.60 / 1 mm.

Features:

• Offset satellite dish
• Dimensions: 510 × 570 mm
• Focal distance: 327 mm
• F/D ratio: 0.64
• Efficiency: above 70%
• Reflector material: electro-zinc plated iron sheet
• Reflector thickness: 0.60 / 1 mm
• Offset angle: 28°
• Gain at 10.70 GHz: 33.5 dBi
• Gain at 11.70 GHz: 34.8 dBi
• Gain at 12.75 GHz: 35.4 dBi
