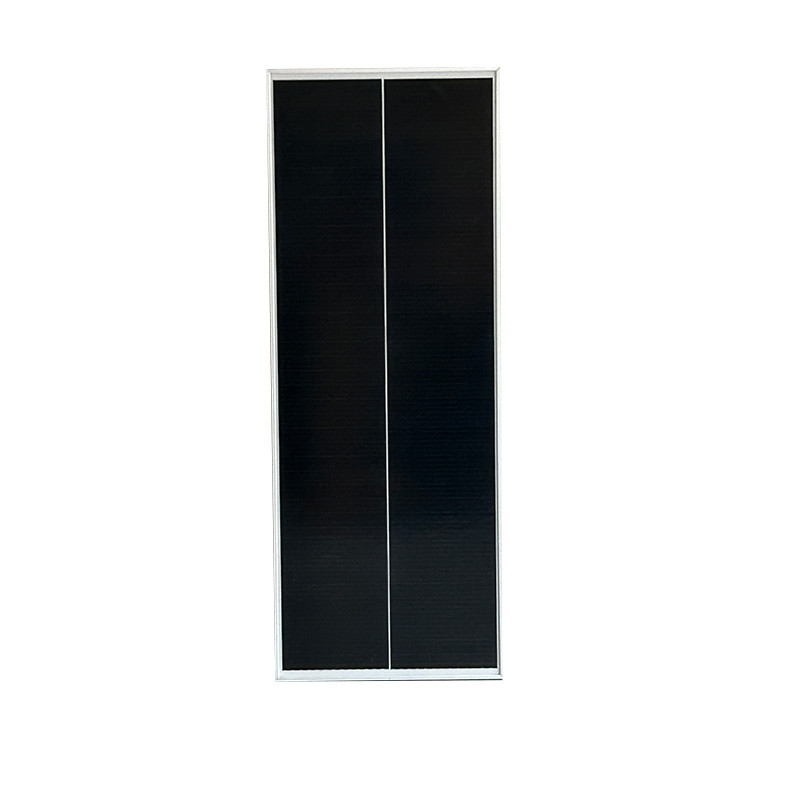

Monocrystalline photovoltaic panel 12V (18.15V) 5.51A 100W - 1160x450mm - Solarfam SZ-100-36M

The Solarfam 100W monocrystalline solar panel is an excellent choice for, for example, a country house or a boat, where large production powers are not required and installation space is limited. The single crystal panel has high efficiency. Thanks to the higher efficiency, the surface area of ​​the panel is smaller compared to, for example, monocrystalline panels of the same power.

The Solarfam 100W solar panel is made of monocrystalline cells that are connected using shingle technology. Shingle technology allows for a much more reliable connection of cells to each other than traditional connection methods, and thanks to this, the risk of the hot spot phenomenon is also significantly reduced.

The waterproof solar panel junction box has a built-in bypass diode and 70 cm cables with MC4 connectors, thanks to which the electrical connections of the panel are easy to make.

SPECIFICATIONS:

- Nominal power: 100W

- Cell type: monocrystalline silicon

- Module efficiency: 19.45%

- Nominal voltage: 12V systems

- Open Circuit Voltage (Voc): 21.45V

- Max Voltage (Vmpp): 18.15V

- Current at max power (Impp): 5.51A

- Short-circuit current (Isc): 5.90A

- Maximum System Voltage: 1000V

- Cable: 700mm

- Conductor cross-section: 2.5mm²

- Connector Type: MC4/MC4 Compatible

- Junction box rating ≥IP67

- Working temperature: -40ºC ~ +85ºC

- Module structure: Aluminum frame / Glass / EVA

- Weight: 6Kg

- Module dimensions: 1160x450x30m
