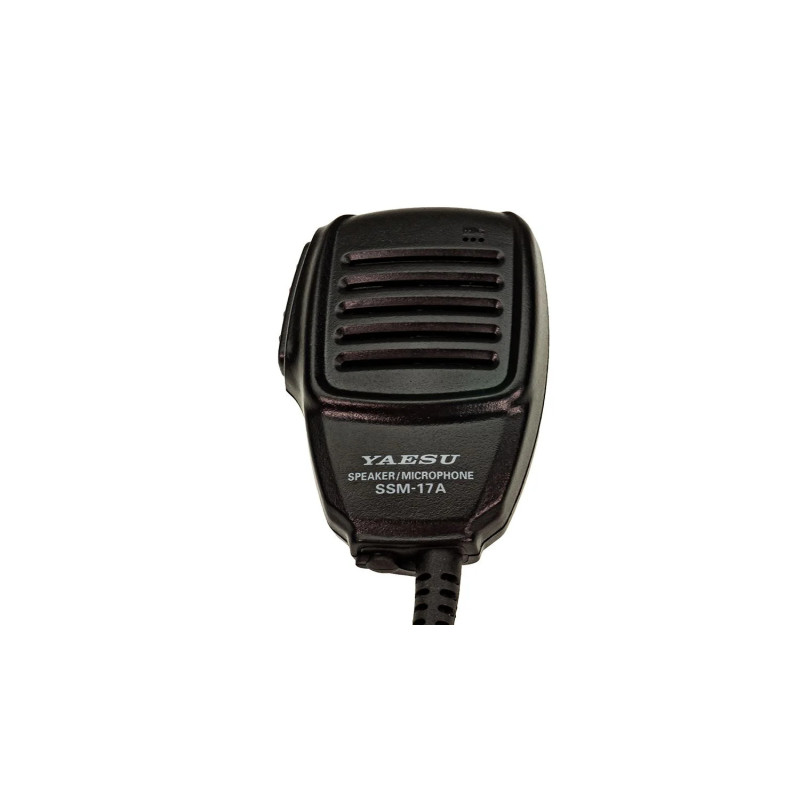

Yaesu SSM-17A Speaker Microphone with PTT

The Yaesu SSM-17A is a genuine compact speaker microphone designed to operate compatible Yaesu handheld transceivers without repeatedly removing the radio from a belt, pocket or backpack.

It combines a microphone and speaker in one compact unit. Incoming communications are reproduced through the front speaker, while the large side PTT — Push To Talk button provides convenient transmission control.

Its reinforced, partially coiled cable provides freedom of movement and helps reduce strain on the radio connector. A 360° rotating metal clip on the rear allows the microphone to be attached to clothing, a belt, vest, shoulder strap or backpack.

A 3.5 mm external earphone socket is provided on the microphone body, allowing more discreet listening or improved intelligibility in noisy surroundings.

Connection to the transceiver is made through a right-angle 3.5 mm four-contact TRRS plug. The SSM-17A replaces the previous Yaesu MH-34B4B speaker microphone.

Main features

• Brand: Yaesu
• Model: SSM-17A
• Manufacturer reference: ABB40X002
• EAN: 4909959170702
• Product type: speaker microphone
• Microphone type: electret condenser
• Microphone sensitivity: approximately −40 dB
• Microphone impedance: approximately 22 kΩ
• Microphone frequency range: 20–16,000 Hz
• Speaker: built in
• Speaker diameter: 32 mm
• Speaker impedance: 8 Ω
• Speaker input: 0.5 W nominal / 2 W maximum
• Speaker output level: approximately 94 dB
• Transmit control: side PTT button
• Radio connection: right-angle 3.5 mm four-contact TRRS plug
• External earphone socket: 3.5 mm
• Cable: reinforced, partially coiled
• Attachment: 360° rotating metal rear clip
• Colour: black
• Genuine product: Yaesu

Compatibility

Compatible with models including:

• FT5DE / FT5DR
• FT3DE / FT3DR
• FT2DE / FT2DR
• FT1DE / FT1DR / FT1XDE / FT1XDR
• FT-70DE / FT-70DR
• FT-60E / FT-60R
• VX-2E
• VX-3E
• Other Yaesu radios using the same 3.5 mm four-contact TRRS microphone connection

Recommended applications

• Amateur radio communications
• Portable and outdoor operation
• Events and team communications
• Emergency and support operations
• Hiking and expeditions
• Operating a radio attached to a belt or backpack
• Private listening through an external earpiece
• Replacement for the Yaesu MH-34B4B

Important note

Before ordering, confirm that the transceiver uses the Yaesu 3.5 mm four-contact connector. A physically identical plug does not guarantee the same electrical pin configuration.

Connecting the microphone requires opening the radio’s MIC/SP protective cover. Consequently, the water and dust protection specified for certain handheld radios is not maintained while the accessory is connected.

The external earpiece is optional and is not included.
