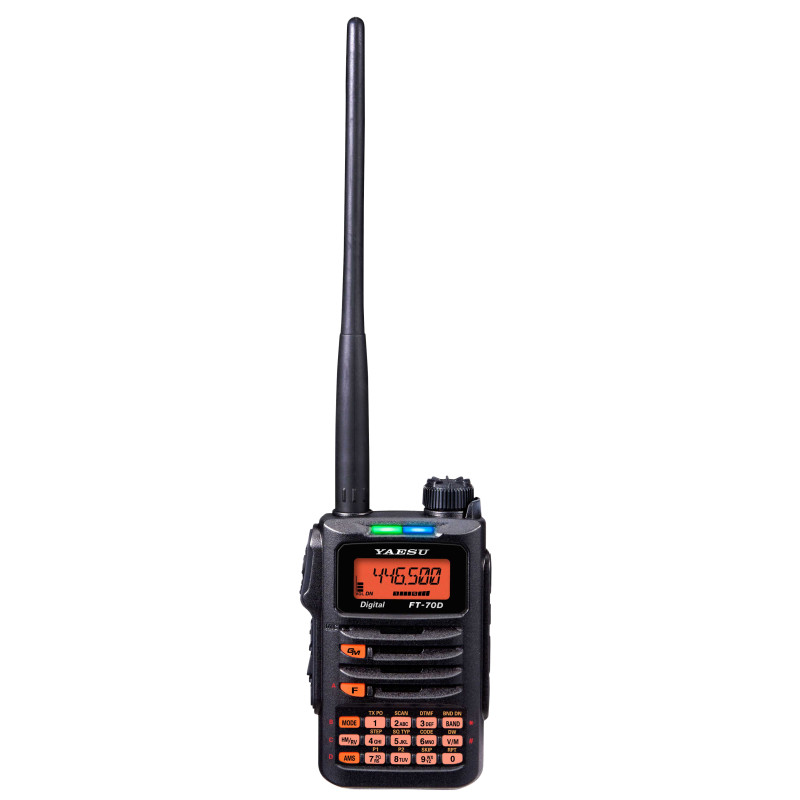

Yaesu FT-70DE C4FM/FM Dual Band 144/430MHz 5W Handheld Transceiver

The Yaesu FT-70DE is a compact and rugged dual band handheld transceiver designed for operation on the 144 MHz VHF and 430 MHz UHF amateur radio bands. It combines traditional analogue FM operation with advanced C4FM System Fusion digital communication, providing clear, modern and reliable communication for mobile, portable and base-station use.

With transmit power up to 5W, selectable in 5W / 2W / 0.5W levels, the FT-70DE offers a good balance between range and battery life. Its large front speaker provides clear and powerful 700mW audio output, making signals easier to hear in outdoor or noisy environments.

The AMS — Automatic Mode Select function automatically detects whether the received signal is analogue FM or C4FM digital, then switches the radio to the correct mode without user intervention. This makes operation simpler, especially in areas where analogue and digital users or repeaters are both present.

The FT-70DE also includes Digital Group ID — DG-ID operation, allowing more organised C4FM group communication. DG-ID codes from 00 to 99 can be used to communicate with stations using the same group ID.

Its construction meets IP54 dust and water protection standards when the battery and antenna are installed and the rubber connector covers are correctly closed. This makes the radio suitable for outdoor use, field operation, events, support communications and portable amateur radio activities.

Main features

• Dual band handheld transceiver
• Brand: Yaesu
• Model: FT-70DE
• Version: European
• Bands: VHF 144 MHz / UHF 430 MHz
• Modes: Analogue FM / C4FM Digital
• Compatible with Yaesu System Fusion
• RF output power: 5W / 2W / 0.5W
• Front speaker audio: 700mW
• AMS — Automatic Mode Select
• Multi-colour LED mode/status indicator
• DG-ID / DP-ID operation
• DG-ID selectable from 00 to 99
• Memory channels: 1,105
• Wideband receive: 108–579.995 MHz
• Airband reception in AM
• Protection rating: IP54
• Antenna connector: SMA
• Antenna impedance: 50 Ohm
• Mini-USB port for programming and updates
• PC programmable with ADMS-10 software
• CTCSS / DCS functions
• APO — Automatic Power Off
• TOT — Time Out Timer
• BCLO — Busy Channel Lock-Out
• Battery save function
• External DC jack for power/charging
• Rugged construction for portable and outdoor use

Technical specifications

• Transmit frequencies, European version: 144–146 MHz / 430–440 MHz
• Receive coverage: 108–579.995 MHz
• Channel steps: 5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 kHz
• Frequency stability: ±2.5 ppm
• Emission types: F2D, F3E, F7W
• Nominal voltage: 7.4V DC
• External supply: 11–16V DC
• Receive current: approx. 180mA
• Standby current: approx. 120mA
• VHF 5W transmit current: approx. 1.6A
• UHF 5W transmit current: approx. 1.9A
• Operating temperature: -20°C to +60°C
• Dimensions: 60 x 98 x 33 mm, without antenna and protruding knobs
• Weight: approx. 255 g with SBR-24LI battery and antenna
• Battery: SBR-24LI Li-Ion 7.4V 1800mAh

Highlighted functions

• C4FM Digital: digital communication with clear audio and good error performance.
• Analogue FM: compatible with traditional VHF/UHF repeaters and simplex operation.
• AMS: automatic switching between analogue and digital modes.
• DG-ID / DP-ID: group communication and personalised digital identification.
• Multi-colour LED indicator: quickly shows transmit/receive mode and status.
• Wideband receive: monitors multiple bands between 108 and 579.995 MHz.
• IP54: dust and splash protection for outdoor operation.
• PC programming: memory and function setup via mini-USB port.

Recommended applications

• Portable amateur radio operation
• VHF/UHF repeater use
• C4FM / System Fusion digital communication
• Analogue FM communication
• Field operation
• Events and support communications
• Hiking, expeditions and outdoor activities
• Portable or emergency stations
• VHF/UHF channel monitoring
• Use with compatible C4FM/YSF digital hotspots

Manufacturer indicated package contents

• Yaesu FT-70DE transceiver
• SBR-24LI 7.4V 1800mAh Li-Ion battery
• Battery charger
• Antenna
• Belt clip
• USB cable
• Manuals

Compatible accessories

• SBR-24LI — 1800mAh Li-Ion battery
• SBH-28 — desktop rapid charger
• SAD-25 / SAD-11 — AC charger/adapter, depending on version
• SSM-17A — speaker microphone
• SSM-57A — earpiece microphone
• SSM-63A — VOX headset
• CT-44 — microphone adapter
• CN-3 — SMA to BNC adapter
• SHC-27 — carrying case
• E-DC-6 / SDD-13 — DC power cables

Important note

Transmission with this equipment requires a valid amateur radio licence and must comply with the frequencies, power limits and operating conditions defined by local regulations. IP54 protection depends on correct installation of the antenna, battery and rubber connector covers.
