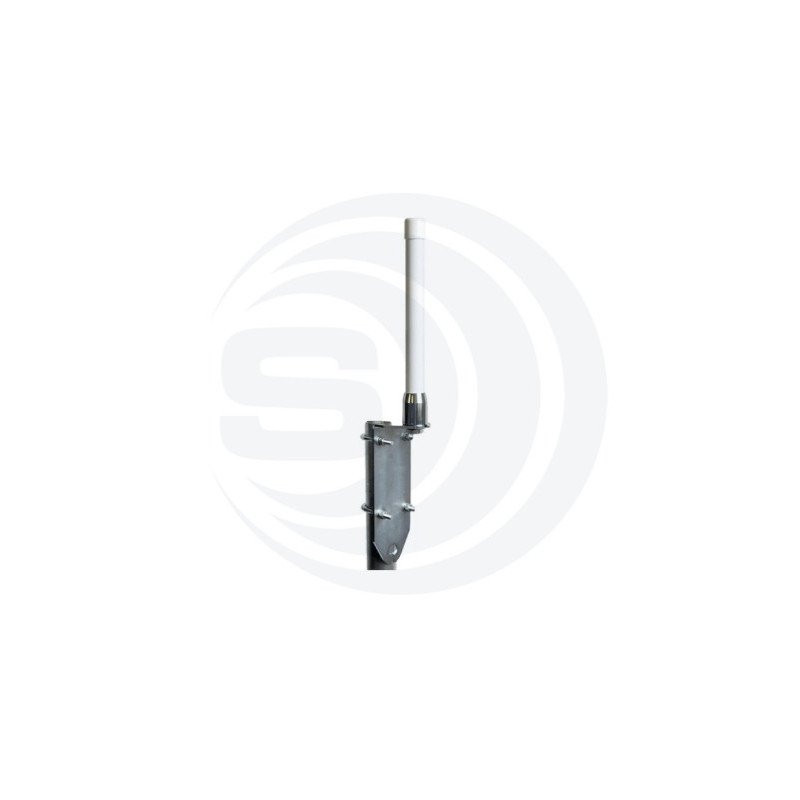

The Sirio SCO-868-4N is an omnidirectional colinear base antenna designed for communication systems in the 868MHz band, especially LoRa, LoRaWAN, ISM and SIGFOX applications.

With an operating range of 868 to 870MHz and SWR ≤1.5, this antenna requires no tuning, making installation easier in telemetry systems, automation, remote sensors, IoT gateways, monitoring and low-power data networks.

Its colinear construction provides 2.2dBd / 4.3dBi gain while maintaining omnidirectional horizontal-plane radiation and linear vertical polarization. This makes it suitable for installations requiring coverage in several directions from a fixed point.

The SCO-868-4N version uses an N female connector, suitable for fixed and outdoor installations with compatible coaxial cable. The antenna can be mounted on a mast, wall or through-holes depending on the support and installation method used.

With approximate 500mm height, 280g weight, 20W CW maximum power and DC-Ground protection, the SCO-868-4N is a practical solution for professional and technical projects in the 868MHz band.

Main features

868MHz colinear base antenna
Manufacturer / brand: Sirio Antenne
Model: SCO-868-4N
Sirio N-female reference: 2111620.00
Antenna type: colinear
Radiation: omnidirectional
Polarization: linear vertical
Frequency range: 868 to 870MHz
SWR: ≤1.5
Tuning: no tuning required
Listed systems: ISM / SIGFOX / LoRa 868MHz
Typical compatibility: LoRa, LoRaWAN, IoT and 868MHz telemetry
Gain: 2.2dBd / 4.3dBi
Maximum power: 20W CW
Impedance: 50Ω
Protection: DC-Ground
Connector: N female
Cable included: no
Approximate height: 500mm
Approximate weight: 280g
Materials: chromed brass, galvanized steel, fiberglass and PCB
Mounting type: mast, wall or through-hole installation, depending on setup
Main application: outdoor antenna for 868MHz systems
Suitable for IoT networks, LoRaWAN gateways, sensors and remote monitoring

Recommended applications

LoRaWAN 868MHz gateways
LoRa 868MHz systems
ISM 868MHz networks
SIGFOX systems
Telemetry and remote monitoring
Outdoor IoT sensors
Agricultural and industrial automation
Low-power data communication
Fixed 868MHz receive/transmit stations
Internet of Things projects
Mast or wall installations
Replacement or upgrade of lower-gain 868MHz antennas

Important note

Before installation, always confirm the operating frequency, connector, coaxial cable, cable losses, transmit power, equipment type, mounting height, support, wind exposure and applicable regulations.

This antenna is intended for systems in the 868–870MHz band. Use with LoRa, LoRaWAN, ISM or SIGFOX must always comply with the legal limits in the country of use, including power, duty cycle, channel plan and service type.

Final performance depends on installation height, obstacles, coaxial cable, connectors, equipment quality, RF environment and antenna location. For outdoor installations, suitable coaxial cable, weather-protected connectors and surge protection where applicable are recommended.

This item corresponds to the Sirio SCO-868-4N antenna. Coaxial cable, N male plug, mast, additional bracket, surge protection and other installation accessories are not included unless expressly stated otherwise.
