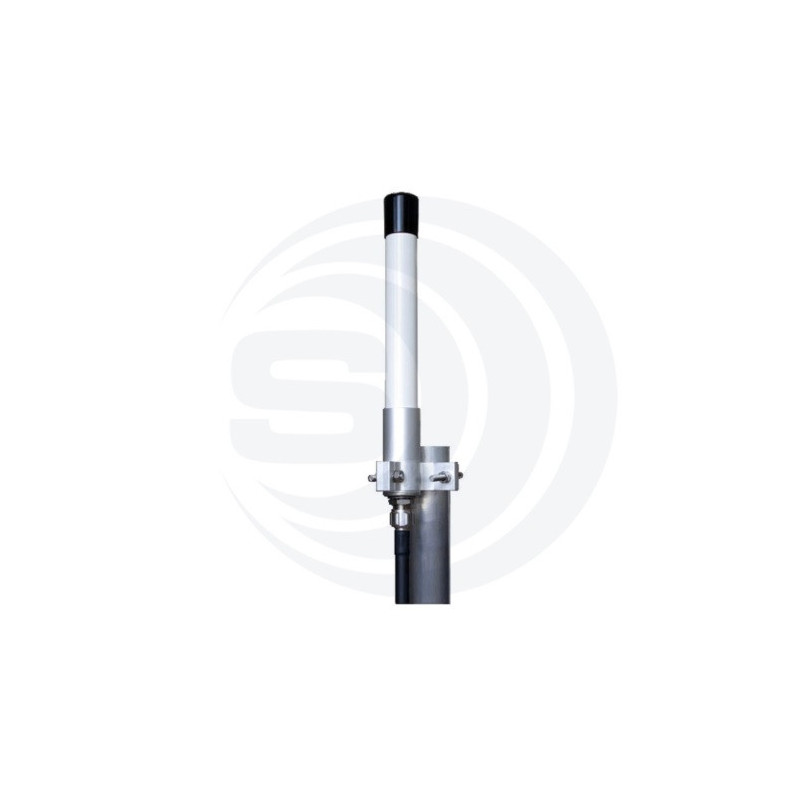

The Sirio SO 868-915-2 NH is a compact omnidirectional base antenna designed for communication systems in the 868MHz and 915MHz bands, especially LoRa, LoRaWAN, ISM and SIGFOX applications.

With operation from 868–915MHz and no tuning required, this antenna makes installation easier in telemetry systems, automation, remote sensors, IoT gateways, technical monitoring and low-power data networks.

The 1/2 wave design provides a simple and efficient solution for omnidirectional coverage in fixed installations. The antenna offers linear vertical polarization, 360° horizontal-plane radiation, 0dBd / 2.15dBi gain and 20W CW maximum power.

The NH / N female version uses an N female connector, suitable for outdoor installations and applications requiring a robust and reliable RF connection. The antenna can be mast-mounted and is suitable for professional, industrial, agricultural, domestic or experimental IoT applications.

With approximate 290mm height and 235g weight, the SO 868-915-2 NH is a compact solution for users requiring an outdoor wideband antenna for 868MHz and 915MHz, with good construction quality and easy integration into radio data systems.

Main features

868/915MHz omnidirectional base antenna
Manufacturer / brand: Sirio Antenne
Model: SO 868-915-2 NH
Sirio N female reference: 2111920.00
Antenna type: 1/2 wave
Radiation: omnidirectional
Polarization: linear vertical
Frequency range: 868–915MHz
Tuning: no tuning required
Listed systems: ISM / SIGFOX / LoRa 868MHz
Listed systems: ISM / SIGFOX / LoRa 915MHz
Typical compatibility: LoRa, LoRaWAN, SIGFOX, ISM, IoT and telemetry
Gain: 0dBd / 2.15dBi
Maximum power: 20W CW
Impedance: 50Ω
Connector: N female
Cable included: no
Approximate height: 290mm
Approximate weight: 235g
Materials: anodized aluminium, nickel-plated brass, fiberglass and PCB
Mounting type: on mast
Compatible mast diameter: up to 60mm on the upgraded version with mast bracket
Listed protection: IP66, according to available technical sheet
Main application: outdoor antenna for 868/915MHz systems
Suitable for IoT networks, LoRaWAN gateways, sensors and remote monitoring

Recommended applications

LoRaWAN 868MHz gateways
LoRa 868MHz systems
LoRa 915MHz systems
ISM 868/915MHz networks
SIGFOX systems
Telemetry and remote monitoring
Outdoor IoT sensors
Agricultural and industrial automation
Low-power data communication
Fixed receive/transmit stations on 868MHz or 915MHz
Internet of Things projects
Outdoor mast installations
Replacement or upgrade of compact 868/915MHz antennas

Important note

Before installation, always confirm the operating frequency, connector, coaxial cable, cable losses, transmit power, equipment type, mounting height, support, wind exposure and applicable regulations.

This antenna is intended for systems in the 868–915MHz range. Use with LoRa, LoRaWAN, ISM or SIGFOX must always comply with the legal limits in the country of use, including power, duty cycle, channel plan and service type.

Final performance depends on installation height, obstacles, coaxial cable, connectors, equipment quality, RF environment and antenna location. For outdoor installations, suitable coaxial cable, weather-protected connectors and surge protection where applicable are recommended.

This item corresponds to the Sirio SO 868-915-2 NH antenna with N female connector. Coaxial cable, N male plug, mast, additional bracket, surge protection and other installation accessories are not included unless expressly stated otherwise.
