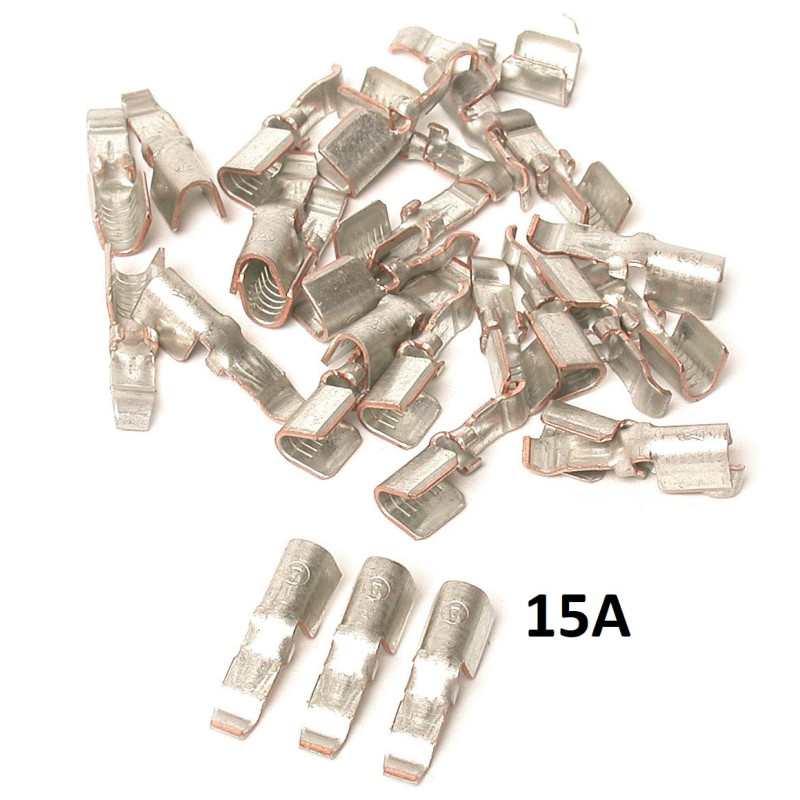

Anderson Powerpole 15 A Contacts for 1.5 mm² Cable – Pack of 20

The Anderson Powerpole contacts are designed for assembling or repairing DC power cables fitted with Powerpole connectors.

This version has a nominal rating of 15 A and is commercially specified for cables measuring approximately 1.5 mm². Each contact is crimped onto the conductor and then inserted into a compatible Powerpole housing.

The modular system allows housings of different colours to be joined together, creating two-pole or multipole connectors for different applications. The compact PP15/45 housing family accepts contacts designed for several cable sizes.

The package contains 20 metal contacts. Plastic Powerpole housings are not included.

Main features

• Type: modular connector power contact
• System: Anderson Powerpole
• Nominal current: 15 A
• Recommended cable: approximately 1.5 mm²
• Termination: crimp
• Compatibility: PP15/30/45 Powerpole housings
• Configuration: genderless contact
• Quantity: 20 pieces
• Plastic housings: not included

Recommended applications

• Amateur-radio power cables
• Mobile transceivers and portable stations
• DC power supplies
• Batteries and portable power systems
• Automotive electrical installations
• Electronic equipment and test benches
• Repairing cables fitted with Powerpole connectors

Important note

The package contains only the 20 metal contacts. A two-pole connector requires two contacts and two compatible Powerpole housings.

Use a suitable crimping tool and verify the actual conductor size before assembly. Permissible current also depends on the cable, crimp quality, temperature and installation conditions.
