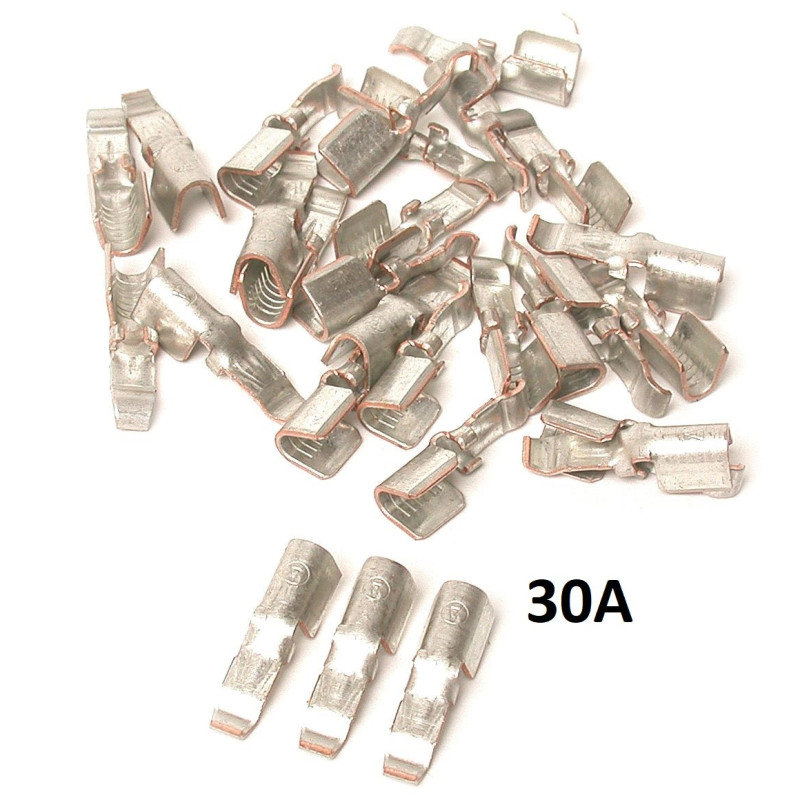

Anderson Powerpole 30 A Contacts for 2.5 mm² Cable – Pack of 20

The Anderson Powerpole contacts are designed for assembling or repairing DC power cables fitted with Powerpole connectors.

This version has a nominal current rating of 30 A and is commercially specified for cables measuring approximately 2.5 mm². Each contact is crimped onto the conductor and then inserted into a compatible Powerpole housing.

The modular design allows housings of different colours to be joined together, creating two-pole or multipole connectors. Contacts with different current ratings in the PP15/45 series use the same housing family.

Main features

• Type: modular connector power contact
• System: Anderson Powerpole
• Nominal current: 30 A
• Recommended cable: approximately 2.5 mm²
• Manufacturer’s wire range: 1.3 to 3.3 mm²
• Termination: crimp
• Compatibility: PP15/30/45 Powerpole housings
• Configuration: genderless contact
• Quantity: 20 pieces
• Plastic housings: not included

Recommended applications

• Amateur-radio power cables
• Mobile transceivers and radio stations
• DC power supplies
• Batteries and battery systems
• Portable power installations
• Automotive electrical systems
• Electronic equipment and test benches
• Repairing cables fitted with Powerpole connectors

Important note

The package contains only the 20 metal contacts. A two-pole connector requires two contacts and two compatible Powerpole housings.

Use a suitable crimping tool. Permissible current also depends on the cable size and quality, crimping quality, temperature and installation conditions.
