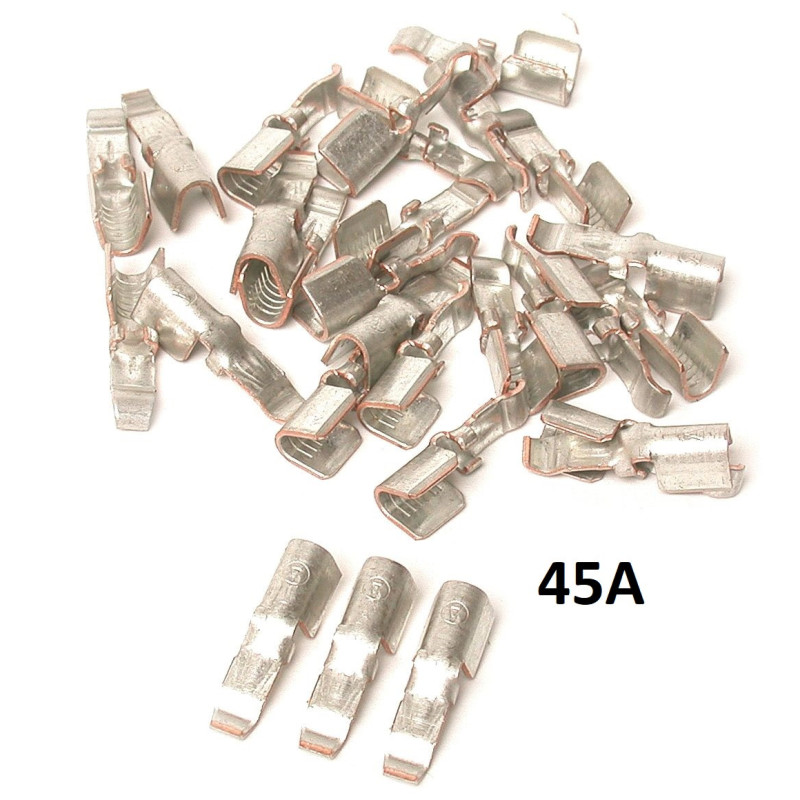

Anderson Powerpole 45 A Contacts for 5.3 mm² Cable – Pack of 20

The Anderson Powerpole contacts are designed for assembling or repairing DC power cables fitted with modular Powerpole connectors.

This version has a nominal rating of 45 A and is suitable for cable sizes ranging from approximately 2.1 to 5.3 mm². Each contact must be crimped onto the conductor using an appropriate tool and then inserted into a compatible Powerpole housing.

The modular system allows housings of different colours to be joined together, creating two-pole or multipole connectors. The 15, 30 and 45 A contacts in the PP15/45 series use the same housing family.

The package contains 20 metal contacts. Plastic Powerpole housings are not included.

Main features

• Type: modular connector power contact
• System: Anderson Powerpole
• Nominal current: 45 A
• Cable size: approximately 2.1 to 5.3 mm²
• Recommended commercial cable size: up to approximately 5.3 mm²
• Termination: crimp
• Compatibility: PP15/30/45 Powerpole housings
• Configuration: genderless contact
• Quantity: 20 pieces
• Plastic housings: not included

Recommended applications

• Amateur-radio power cables
• Transceivers and amplifiers
• DC power supplies
• Batteries and battery systems
• Solar and portable power systems
• Automotive electrical installations
• Higher-current electronic equipment
• Repairing cables fitted with Powerpole connectors

Important note

The package contains only the 20 metal contacts. A two-pole connector requires two contacts and two compatible Powerpole housings.

Use a crimping tool suitable for 45 A contacts and the selected cable size. Actual permissible current also depends on the conductor, crimp quality, temperature and installation conditions.
