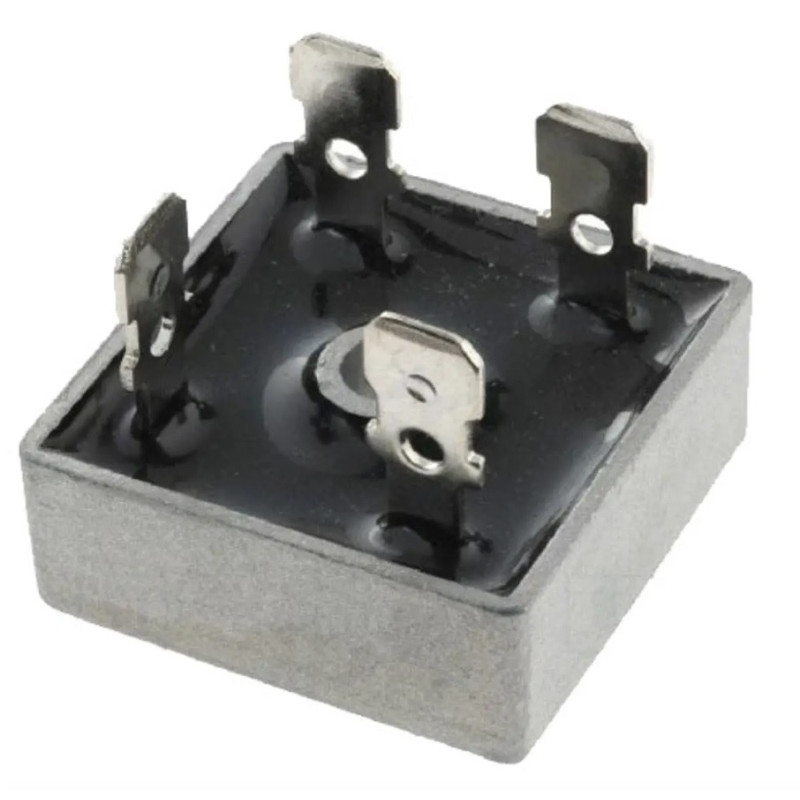

The KBPC2506 is a single-phase bridge rectifier designed for power applications where AC current must be converted into DC current.

With a 25A conduction current rating and 600V maximum reverse voltage, it is suitable for power supplies, battery chargers, industrial equipment, DC power systems, electronic repairs and power electronics projects.

The square MB-25 case provides a robust construction and uses 6.35mm connector terminals for practical electrical connection. For high-current operation or continuous use close to the rated current, suitable heat dissipation should be considered.

Main features

• Single-phase bridge rectifier
• Model: KBPC2506
• Manufacturer: DC Components
• Maximum reverse voltage: 600V
• Conduction current: 25A
• Maximum surge current: 400A
• Case: MB-25
• Shape: square
• Electrical mounting: THT
• Outputs / terminals: 6.35mm connectors
• Suitable for AC/DC conversion
• Designed for power applications
• Robust construction for electronic and industrial equipment

Recommended applications

• Linear power supplies
• AC to DC conversion
• Battery chargers
• Industrial equipment
• Power supply panels and modules
• Repair of power supplies and electronic equipment
• Power electronics projects
• Bench DC power systems
• Radio and telecommunication equipment using rectified power

Installation note

Always check the terminal polarity AC (~), positive (+) and negative (-) before connection. In high-current applications, suitable heat dissipation is recommended and the real maximum circuit current should always be verified.
