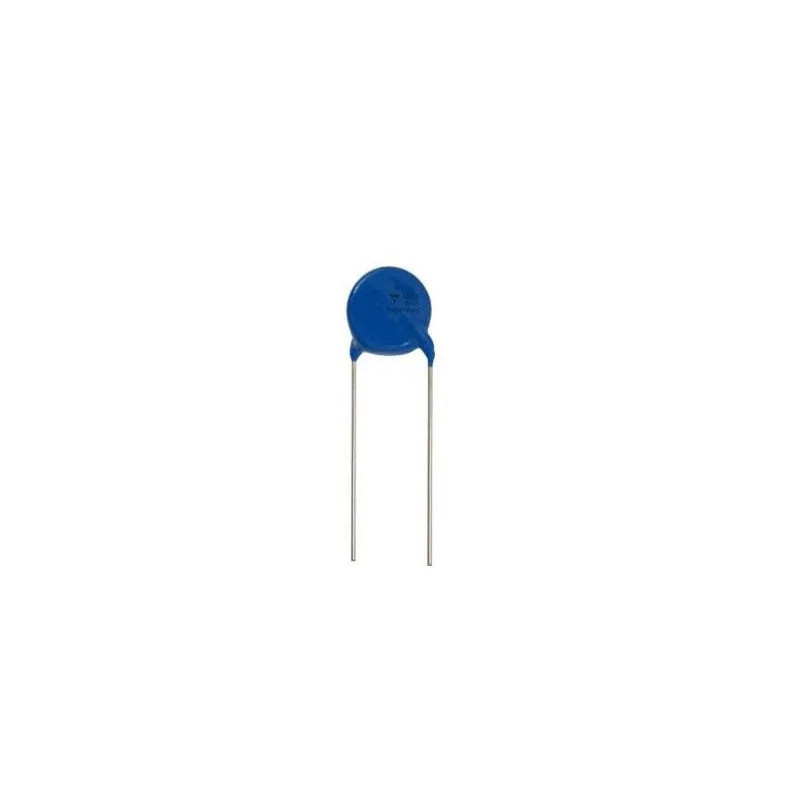

TDK 47 pF 6 kV Ceramic Disc Capacitor – CC45SL3JD470JYGNA

The TDK CC45SL3JD470JYGNA is a ceramic disc capacitor from the CC45 series, designed for commercial applications requiring high operating voltage and low losses.

It offers a capacitance of 47 pF, a tolerance of ±5% and a rated voltage of 6 kV DC, with a dielectric withstand voltage of 4.5 kV AC. Its SL temperature characteristic and minimum quality factor of 1000 make it suitable for high-frequency circuits, signal coupling, filtering and noise suppression.

The component features radial through-hole mounting, a 7.5 mm lead spacing and long leads for convenient installation on printed circuit boards.

Main features

• Manufacturer: TDK
• Part number: CC45SL3JD470JYGNA
• Series: CC45
• Type: ceramic disc capacitor
• Capacitance: 47 pF
• Tolerance: ±5%
• Rated voltage: 6 kV DC
• Withstanding voltage: 4.5 kV AC
• Temperature characteristic: SL, +350 to −1000 ppm/°C
• Quality factor Q: 1000 minimum
• Insulation resistance: 10,000 MΩ minimum
• Maximum diameter: 8.5 mm
• Maximum thickness: 6 mm
• Lead spacing: 7.5 ±1.5 mm
• Lead diameter: 0.60 ±0.05 mm
• Lead length: 25 mm
• Mounting: radial through-hole
• Polarity: non-polarized
• Category: commercial grade
• Compliance: RoHS, lead-free and halogen-free

Recommended applications

• High-voltage electronic circuits
• Radio-frequency circuits
• Signal coupling and decoupling
• Noise and interference filtering
• Power supplies and converters
• Test and measurement equipment
• Electronic equipment repair and development

Important note

The 6 kV rating applies to DC operation. The 4.5 kV AC value is a test voltage and must not be considered a continuous operating voltage.

This component does not have an X or Y safety classification. Installation in high-voltage circuits should only be performed by qualified personnel, with the required insulation clearances and after fully discharging the circuit.
