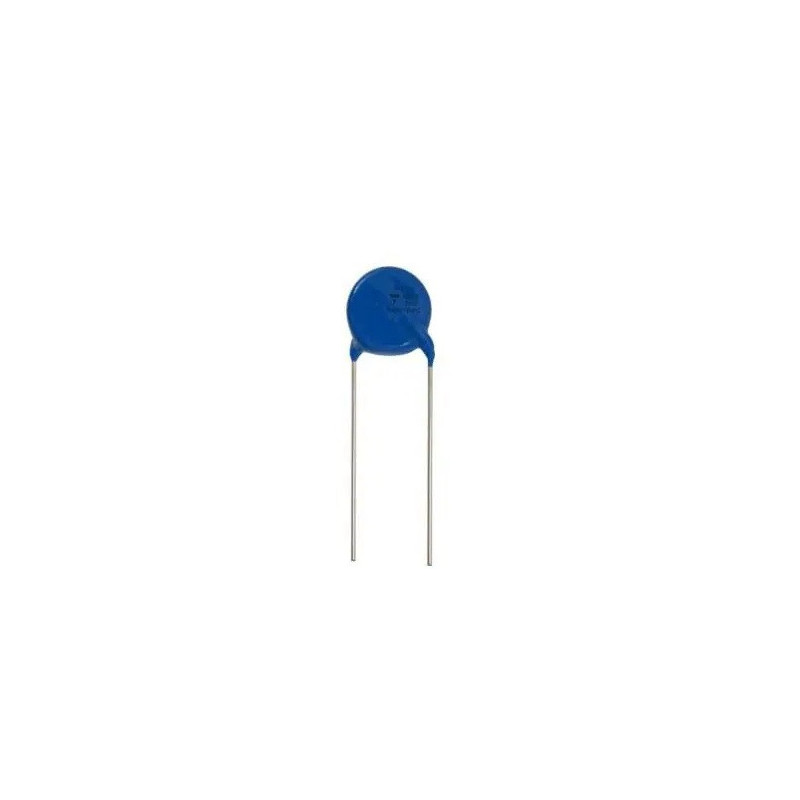

Vishay 150 pF 15 kV Ceramic Disc Capacitor – HVCC153Y6P151MEAX
€3.80
High-voltage ceramic disc capacitor with 150 pF capacitance, ±20% tolerance and a rated voltage of 15 kV DC / 5.3 kV AC. It features a Y6P dielectric and long radial leads.
Security policy
Delivery policy
The Vishay Roederstein HVCC153Y6P151MEAX is a ceramic disc capacitor from the HVCC series, designed for circuits requiring high operating voltage, dependable performance and low losses.
It provides a capacitance of 150 pF, a tolerance of ±20% and a rated voltage of 15 kV DC. It may also operate at up to 5.3 kV AC at 50/60 Hz, subject to the manufacturer’s specified operating conditions.
Its Y6P ceramic dielectric maintains the capacitance variation within approximately ±10% from −30°C to +105°C. A flame-retardant epoxy resin coating protects the ceramic disc, while its long tinned radial leads enable convenient through-hole installation.
Main features
- Manufacturer: Vishay Roederstein
- Part number: HVCC153Y6P151MEAX
- Series: HVCC
- Type: high-voltage ceramic disc capacitor
- Capacitance: 150 pF
- Tolerance: ±20%
- Rated DC voltage: 15 kV
- Rated AC voltage: 5.3 kV at 50/60 Hz
- Dielectric: Y6P
- Ceramic class: Class 2
- Capacitance temperature variation: ±10%
- Operating temperature: −30°C to +105°C
- Dissipation factor: 1.5% maximum at 1 kHz
- Insulation resistance: 200,000 MΩ minimum
- Maximum diameter: 8 mm
- Maximum thickness: 8 mm
- Lead spacing: 12.5 ±1 mm
- Lead diameter: 0.80 ±0.05 mm
- Lead length: 30 ±5 mm
- Lead type: straight and tinned
- Mounting: radial through-hole
- Polarity: non-polarized
- Coating: UL 94 V-0 flame-retardant epoxy resin
- Packaging: bulk
Recommended applications
- High-voltage power supplies
- X-ray equipment
- Baggage scanners
- Industrial and pulsed lasers
- Air purifiers and ionizers
- High-voltage generators and multipliers
- Pulse and discharge circuits
- Test and measurement equipment
Important note
This component operates at potentially hazardous voltages. It should only be installed by qualified personnel, with appropriate insulation clearances and consideration of the circuit frequency, waveform and thermal conditions.
For applications involving combined AC and DC voltage, pulses or ripple, all peak voltage values must remain within the capacitor’s specified limits. Fully discharge the circuit before performing any work.
401521
Data sheet
- Local do artigo na loja
- CTP007
Specific References
- MPN
- HVCC153Y6P151MEAX
