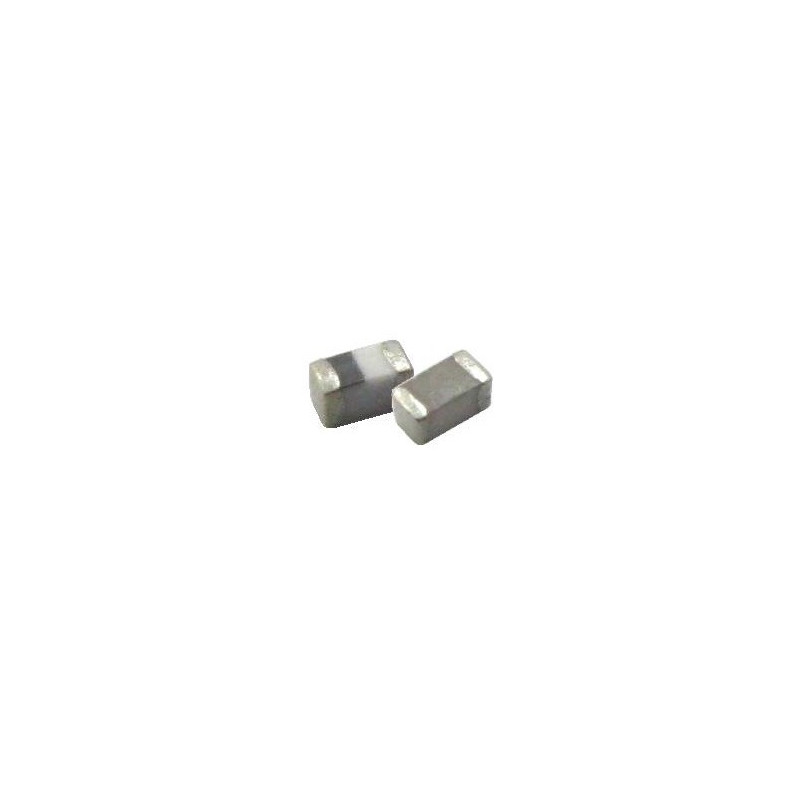

10 nH Unshielded Multilayer Inductor 600 mA Max 260 mOhm 0603 (1608 metric)

Type: Multilayer

Material - Core: Ceramic

Inductance: 10 nH

Tolerance: ±5%

Rated Current (A): 600 mA

Shielding: Unshielded

DC Resistance (DC Resistance): Max 260 mOhm

Q to Freq: 12 to 100 MHz

Frequency - Self-Resonant: 3 GHz

Operating Temperature: -55°C to 125°C

Inductance and Frequency - Test: 100 MHz

Mount Type: Surface Mount

Package / Housing: 0603 (1608 metric)

Device Supplied Housing: 603

Size / Dimensions: L. 0.063" x 0.031" (1.60mm x 0.80mm)

Height - Seated (max): 0.037" (0.95mm)
