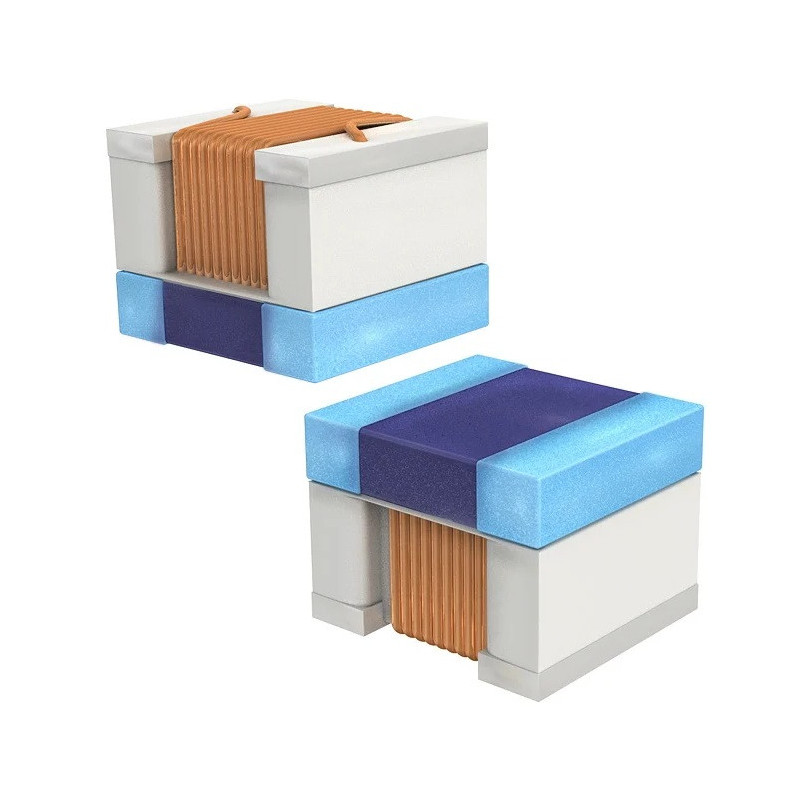

100 nH Unshielded Wirewound Inductor 400 mA Max 460 mOhm 0805 (2015 metric)

Type: Wirewound

Material - Core: Air

Inductance: 100 nH

Tolerance: ±5%

Rated Current (A): 400 mA

Shielding: Unshielded

DC Resistance (DC Resistance): Max 460 mOhm

Q to Freq: 65 to 500 MHz

Frequency - Self-Resonant: 1.25 GHz

Operating Temperature: -55°C to 125°C

Inductance and Frequency - Test: 150 MHz

Mounting Type: Surface Mount

Package / Housing: 0805 (2015 Metric)

Size / Dimensions: L. 0.082" x 0.060" (2.09mm x 1.53mm)

Height - Seated (max): 0.060" (1.52mm)

Base part number: LQW2BAS
