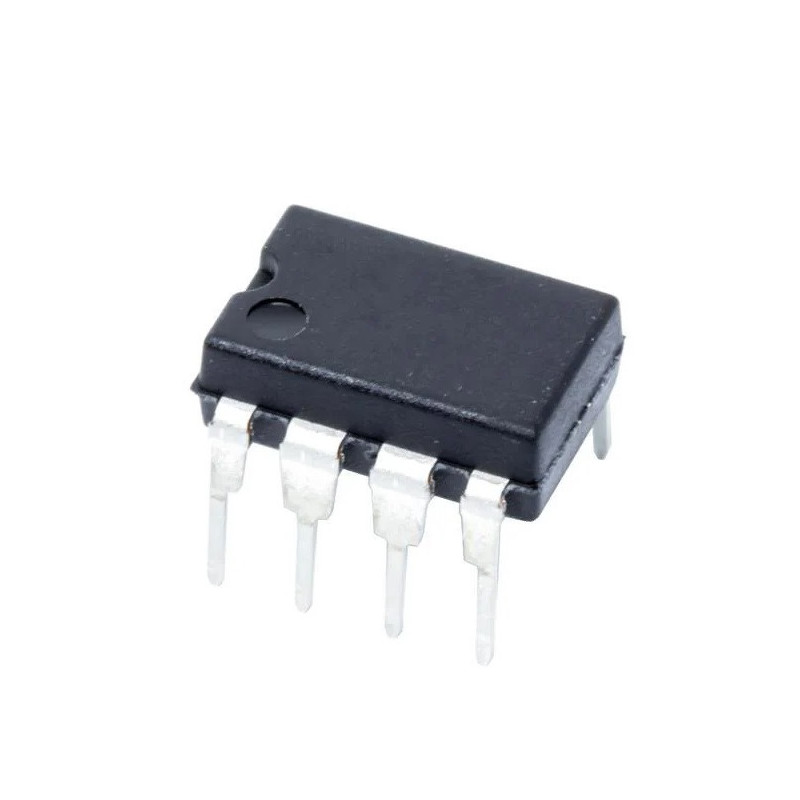

OPA2134PA Texas Instruments Dual Audio Operational Amplifier PDIP-8

The OPA2134PA is a high-performance dual audio operational amplifier from Texas Instruments, designed for applications requiring low noise, low distortion and high signal quality.

Part of the SoundPlus™ family, this integrated circuit uses a FET input stage, delivering excellent performance in audio applications, especially signal circuits, preamplifiers, active filters, line drivers, line receivers, mixers, audio processors and Hi-Fi equipment.

With a wide supply range of 5V to 36V or ±2.5V to ±18V, 8MHz bandwidth, 20V/µs slew rate and typical input noise of 8nV/√Hz, the OPA2134PA is an excellent choice for repair, maintenance, upgrades and analog audio circuit construction.

The PDIP-8 package makes it easy to use on printed circuit boards, prototyping boards and when replacing parts in existing equipment using traditional THT mounting.

Main features

Dual audio operational amplifier
Manufacturer / brand: Texas Instruments
Family / series: OPA2134 / SoundPlus™
Part number: OPA2134PA
Number of channels: 2 channels
Input type: FET
Package: PDIP-8
Number of pins: 8
Mounting: Through Hole / THT
Supply voltage: 5V to 36V
Dual supply voltage: ±2.5V to ±18V
Bandwidth: 8MHz
Slew rate: 20V/µs
Input noise: 8nV/√Hz
Typical THD + noise: 0.00008%
Open-loop gain: 120dB
Typical output current: 40mA
Typical supply current per channel: 4mA
Maximum offset voltage: 2mV
Maximum input bias current: 100pA
Minimum operating temperature: -40°C
Maximum operating temperature: +85°C
RoHS: Yes
Active product
Suitable for high-quality audio and precision circuits

Recommended applications

Audio preamplifiers
Hi-Fi equipment
Professional audio
Active filters
Line drivers
Line receivers
Audio mixers
Audio signal processors
Crossover networks
Audio instrumentation
Sound equipment repair and upgrade
Analog audio DIY projects
Communication equipment with audio circuits

Important note

Before use, always confirm the supply voltage, pinout, package, bandwidth, current consumption, thermal conditions and compatibility with the original circuit. The OPA2134PA is an audio signal operational amplifier, not a power amplifier for direct speaker connection. The final selection must match the real circuit conditions, including voltage, impedance, frequency, gain, load and available board space.
