The onsemi LM2576D2T-ADJR4G is a monolithic switching regulator from the LM2576 series, designed for simple and efficient step-down / buck power supply designs.

This is the adjustable version, allowing an output voltage from 1.23V to 37V, depending on the external circuit used. It supports up to 3A output current, making it suitable for powering electronic boards, modules, digital circuits, embedded systems, chargers, auxiliary supplies and applications where a higher DC voltage must be converted to a lower voltage with better efficiency than a linear regulator.

The fixed 52kHz switching frequency allows the use of common inductors and external components. The LM2576 series was designed to reduce the number of required external components, simplifying power supply design while providing good line and load regulation.

The device includes an ON/OFF pin, allowing external TTL shutdown, low-power standby mode, cycle-by-cycle current limiting and thermal shutdown. These functions help protect the circuit under fault or overload conditions.

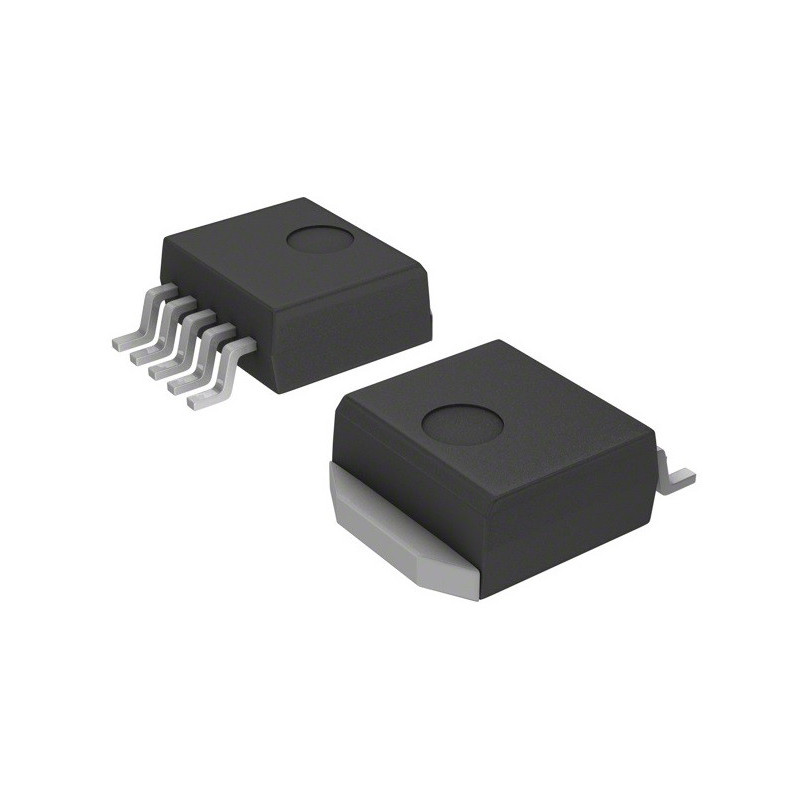

The TO-263-6 / D2PAK package, also listed as D2PAK-5, is suitable for surface-mount assembly and allows good thermal dissipation when used with an appropriate PCB layout.

Main features

DC/DC switching regulator
Manufacturer / brand: onsemi
Manufacturer reference: LM2576D2T-ADJR4G
Base product number: LM2576
Regulator type: Buck / step-down
Function: voltage step-down
Output type: adjustable
Minimum output voltage: 1.23V
Maximum output voltage: 37V
Output current: 3A
Number of outputs: 1
Minimum input voltage: 7V
Maximum input voltage: 40V
Switching frequency: 52kHz
Synchronous rectifier: no
Output configuration: positive or negative, depending on application topology
Control pin: ON/OFF
TTL shutdown: yes
Low-power standby mode: yes
Typical standby current: 80µA
Protection features: current limiting and thermal shutdown
Operating temperature: -40°C to 125°C TJ
Mounting type: surface mount / SMD
Package: TO-263-6, D2PAK, 5 leads + tab
Supplier device package: D2PAK-5
MSL: level 1, according to datasheet
Main application: efficient DC/DC conversion for compatible power supply circuits**

Recommended applications

Step-down / buck DC/DC power supplies
Adjustable power supplies
DC voltage conversion for electronic boards
Efficient pre-regulator before linear regulators
On-board switching regulators
Embedded systems
Battery-powered equipment
Battery chargers and auxiliary power systems
Projects requiring up to 3A current
Replacement of linear regulators in compatible applications
Positive-to-negative converters using recommended topology
Repair and maintenance of compatible circuits

Important note

Before use, always confirm the input voltage, required output voltage, load current, inductor, suitable Schottky or recovery diode, input and output capacitors, feedback resistors, thermal dissipation, PCB layout and package pinout.

This component is a switching regulator, not a linear LDO regulator. To operate correctly, it requires external components sized according to the datasheet and a suitable layout to avoid noise, overheating, instability or poor efficiency.

The adjustable output voltage depends on the external resistor divider and operating conditions. The input voltage must always be sufficient for the required output voltage while respecting the device limits.

This product is sensitive to electrostatic discharge. Use proper ESD handling precautions. This item corresponds only to the LM2576D2T-ADJR4G integrated circuit. Inductor, diode, capacitors, resistors, PCB, heatsink, cables and other components are not included unless expressly stated otherwise.
