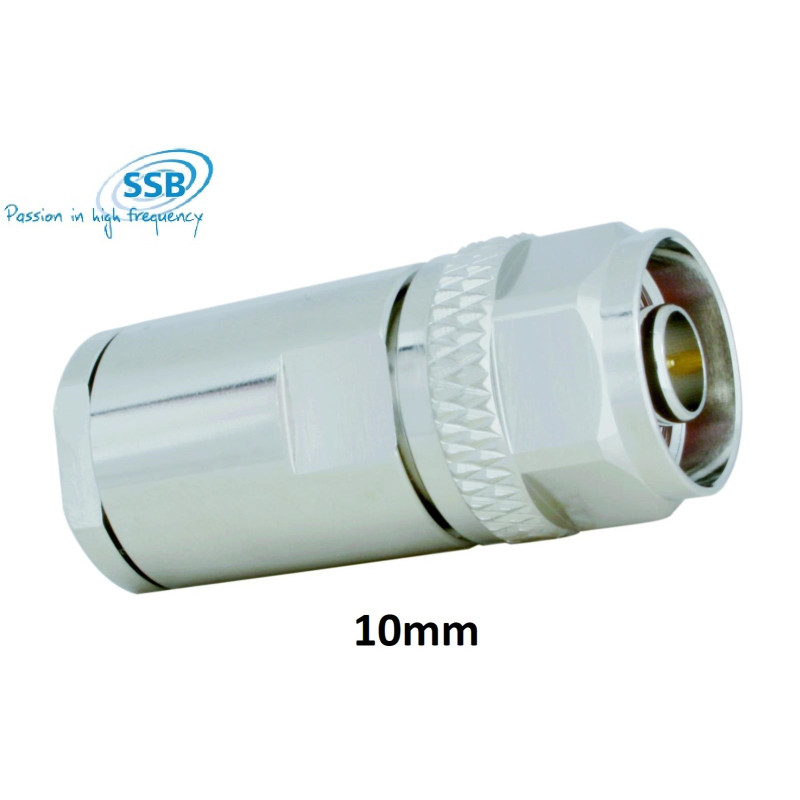

SSB 7401 N Male Plug for Ecoflex 10 / Aircom Premium / RG213 / LMR400

The SSB-Electronic 7401 is a high-quality N male plug, designed for installation on 50Ω coaxial cables such as Ecoflex 10, Aircom Premium, RG213 and LMR400.

This connector is suitable for radio frequency applications where a robust, reliable connection with good electrical performance is required. The connector uses a soldered inner conductor and screw/clamp outer conductor system, providing a secure assembly when installed according to the manufacturer’s technical instructions.

With 50Ω impedance, operating frequency up to 10GHz and working voltage up to 1000V RMS, this plug is suitable for antenna installations, low-loss coaxial cables, amateur radio equipment, VHF/UHF/SHF systems, reception, transmission and RF instrumentation.

Its construction includes a PTFE insulator, nickel-plated brass body, gold-plated brass pin, rubber/silicone gaskets and an operating temperature range from -55°C to +155°C, making it suitable for demanding installations and RF environments.

Correct assembly requires proper cable preparation, soldering of the centre pin and tightening with suitable spanners. For Ecoflex 10 and Aircom Premium, the mounting instruction specifies different pin diameters, so the correct pin must be selected according to the cable used.

Main features

N male plug
Manufacturer / brand: SSB-Electronic
Reference: 7401
Connector type: N male plug
Standard: IEC 61 169-16
Impedance: 50Ω
Maximum frequency: up to 10GHz
Working voltage: up to 1000V RMS
Compatible cables: Ecoflex 10, Aircom Premium, RG213 and LMR400
Inner conductor: solder
Outer conductor: screw / clamp
Insulator: PTFE
Body / metal parts: nickel-plated brass
Centre pin: gold-plated brass
Gasket / sealing: rubber and silicone
Mechanical lifetime: ≥ 500 mating cycles
Insulation resistance: ≥ 5GΩ
Inner contact resistance: ≤ 1.5mΩ
Outer contact resistance: ≤ 1.0mΩ
Minimum operating temperature: -55°C
Maximum operating temperature: +155°C
Approximate weight: 67.5g
RoHS: yes
Pin 1: Ø 2.8mm hole
Pin 2: Ø 3.0mm hole
Recommended tools: 17mm spanner, 18mm spanner, cutter knife, scissors, soldering station and solder
Main application: fitting N connectors to 50Ω coaxial cables
Suitable for low-loss and high-reliability RF installations

Recommended applications

Ecoflex 10 coaxial cables
Aircom Premium coaxial cables
RG213 coaxial cables
LMR400 coaxial cables
Antenna installations
HF, VHF, UHF and SHF amateur radio
RF transmission and reception systems
Outdoor antennas
Base stations
Low-loss coaxial cable assemblies
Communication equipment
RF instrumentation
Coaxial cable repair and assembly
Projects requiring a 50Ω N male plug

Important note

Before assembly, always confirm the coaxial cable compatibility, inner conductor diameter, pin type, cable preparation, impedance, operating frequency, applied power and installation conditions.

Correct assembly is essential to ensure good RF performance. The inner conductor must be carefully soldered and the connector body must be tightened according to the manufacturer’s instruction. For Aircom Premium, the 2.8mm hole pin is indicated, and for Ecoflex 10, the 3.0mm hole pin is indicated. For other compatible cables, such as RG213 or LMR400, always confirm the suitable pin before assembly.

After installation, it is recommended to check continuity, absence of short circuit, mechanical tightness and system SWR before transmitting. Coaxial cable, antenna and assembly tools are not included unless expressly stated otherwise.
