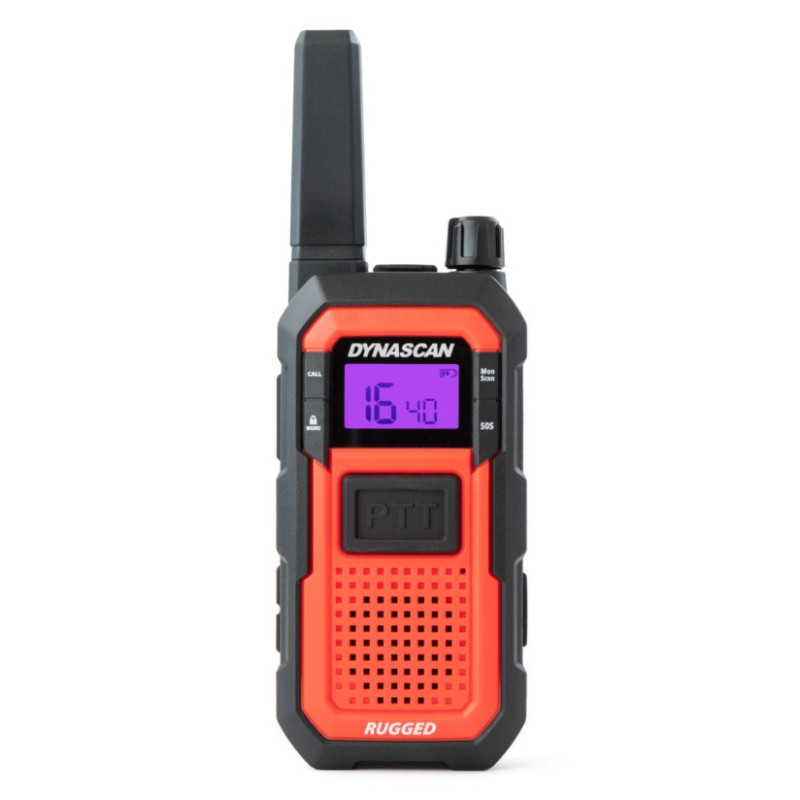

Dynascan RUGGED Rugged Walkie-Talkie PMR-446

Description

The Dynascan RUGGED is a license-free PMR-446 walkie-talkie designed for demanding environments. Its ultra-rugged construction with IP67 protection keeps it safe from dust, sand, and splashes, while its 3.7V/2000mAh battery provides all-day battery life. It features vibration, dual PTT, an SOS button, VOX, and channel scanning, making it a reliable solution for construction, industrial, and outdoor event teams, among others.

FEATURES

Very rugged construction, resistant to shocks and drops

IP67 rating, guaranteeing complete protection against dust and sand, and protection against the effects of temporary immersion in water between 15 cm and 1 m for 30 minutes

Vibration function

10 selectable ringtones

Dual PTT, front and side

Raised ergonomic keys

SOS emergency key

High-capacity 7V/2000mAh (7.4Wh) lithium-ion battery

Voice-activated transmission (VOX)

Transmit timer (TOT)

Channel scanning

Keyboard lock function

TECHNICAL SPECIFICATIONS

GENERAL:

Frequency range: 446.00625 MHz – 446.19375 MHz (Tx/Rx)

Number of channels: 16

Channel spacing: 12.5 kHz

Frequency stability: ±2.5 ppm

Modulation type: FM (11K0F3E)

Power supply: 3.7V/2000mAh (7.4Wh) lithium-ion battery

Operating temperature: -20°C to +60°C °C

Antenna Type: Integral

Protection Rating: IP67

Dimensions (H x W x D): 180 x 60 x 33 mm (with antenna)

Weight: 190 g (with battery)

TRANSMITTER:

Transmit Power (P.R.A.): 0.5 W

Adjacent Channel Power: 60 dBm @ 12.5 kHz

Spurious Emissions: ≤0.25 μW

Current Consumption: ≤1500 mA

RECEIVER:

Sensitivity (20 dB SINAD): 0.25 μV/-119 dBm

Striking Radiation: ≤2 nW

Audio Power: ≥300 mW

Distortion: ≤3%

Current Consumption: ≤410 mA

CONTENTS

Transceiver PMR-446 with built-in antenna and 3.7V/2000mAh lithium-ion battery

Desktop battery charger

Wall battery charger

USB-C cable

Belt clip

Hand strap

Instruction manual
