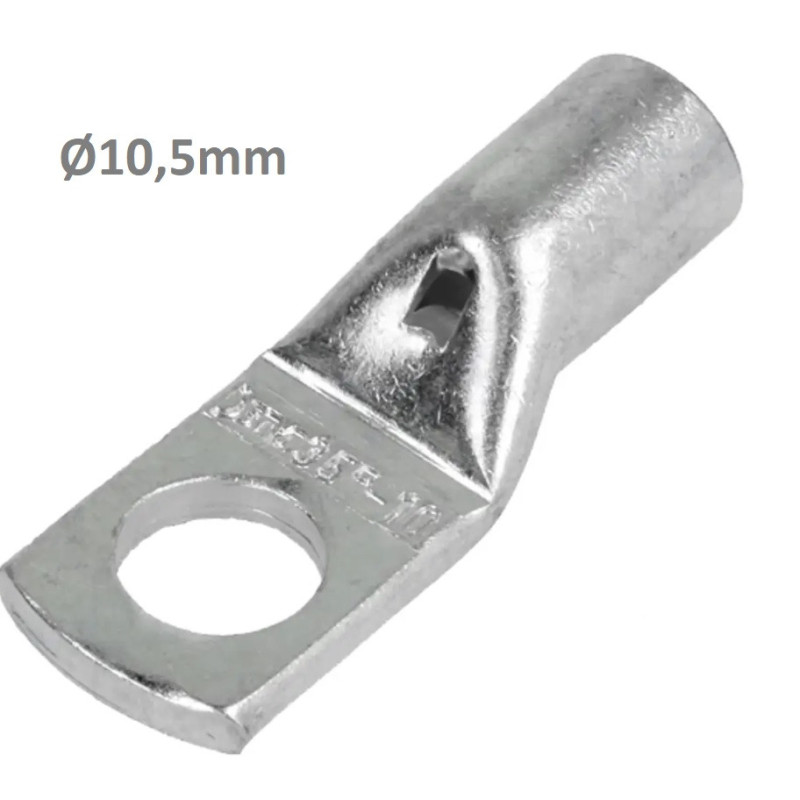

Non-Insulated Ring Terminal 25–35mm² M10 Ø10.5mm

The 25–35mm² M10 non-insulated ring terminal is designed for terminating large-section electrical cables, providing a secure, firm and durable connection using a screw, stud or bolt.

This type of terminal is commonly used in electrical installations, DC power systems, batteries, power supplies, electrical panels, grounding connections, industrial equipment, automotive applications, caravans, marine installations, radio communication equipment and other applications requiring a strong electrical connection with low contact resistance.

As this is a non-insulated terminal, it is intended to be crimped directly onto the cable. A suitable crimping tool should be used to ensure a proper mechanical and electrical connection. After crimping, heat-shrink tubing or other suitable insulation may be applied depending on the installation requirements.

Main features

• Non-insulated ring terminal
• For 25 to 35mm² cables
• Hole for M10 screw/stud
• Hole diameter: 10.5mm
• Crimp connection
• Suitable for power electrical connections
• Provides firm fixing with screw, bolt or nut
• Ideal for battery, grounding and power connections
• Suitable for DC and AC installations
• Recommended for applications requiring good electrical conductivity and mechanical strength
• Can be used with heat-shrink tubing for additional protection

Recommended applications

• Large-section power cables
• Battery connections
• Grounding connections
• Power supplies
• Inverters and chargers
• Electrical panels
• Electrical busbars
• Solar installations and DC systems
• Automotive, marine and caravan applications
• Radio communication equipment
• Industrial installations

Installation note

For a safe and reliable connection, the terminal should be crimped using a suitable tool for the cable size. Always confirm that the cable section, screw diameter and installation current are compatible with the terminal being used.
